Toyota Corolla E12-D - IN-DASH 6 CD CHANGER INSTALLATION; Manual Air Conditioner Systems; Automatic Air Conditioner Systems

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 7
05-04
IN CASE OF MANUAL AIR CONDITIONER
2.
a) Remove the screw and control knob
.
: Screw (1x)
b) Remove the lower cluster panel .
: Clip (8x)
3
100
4
100

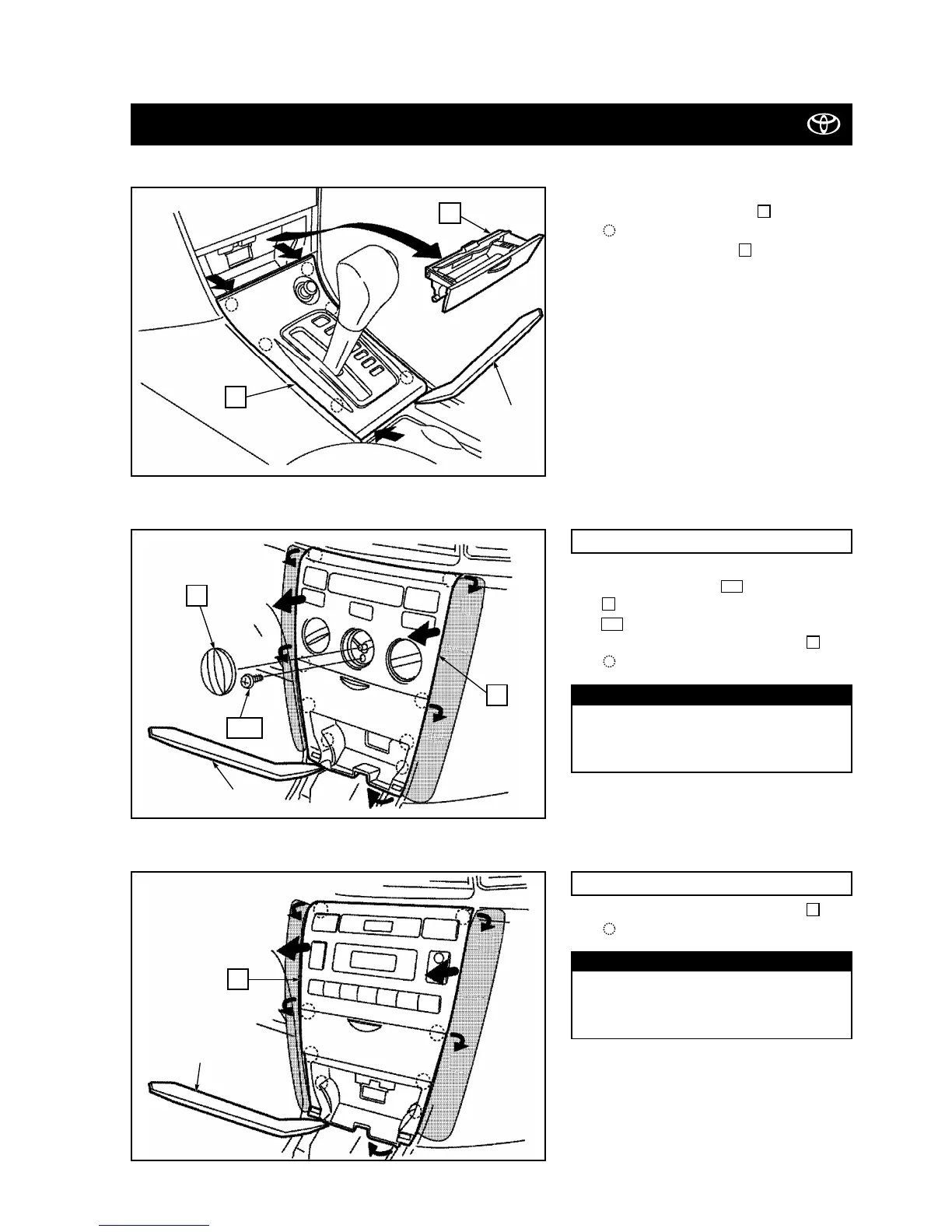

3. IN-DASH 6CD CHANGER INSTALLATION
1.
a) Remove the shift cover .
: Clip (6x)
b) Remove the ashtray .
2
1
Fig. 1
Fig. 2
Put the protective tapes on the shaded
areas. Be sure to remove the parts
carefully not to damage the section.
CAUTION
Fig. 3
IN CASE OF AUTO AIR CONDITIONER
3. Remove the lower cluster panel .
: Clip (8x)
3
Put the protective tapes on the shaded
areas. Be sure to remove the parts
carefully not to damage the section.
CAUTION
2
1
100
3
3
Nylon pry tool
Nylon pry tool
Nylon pry tool
4
