Instruction
Form：DP5-005 Revised：05 25

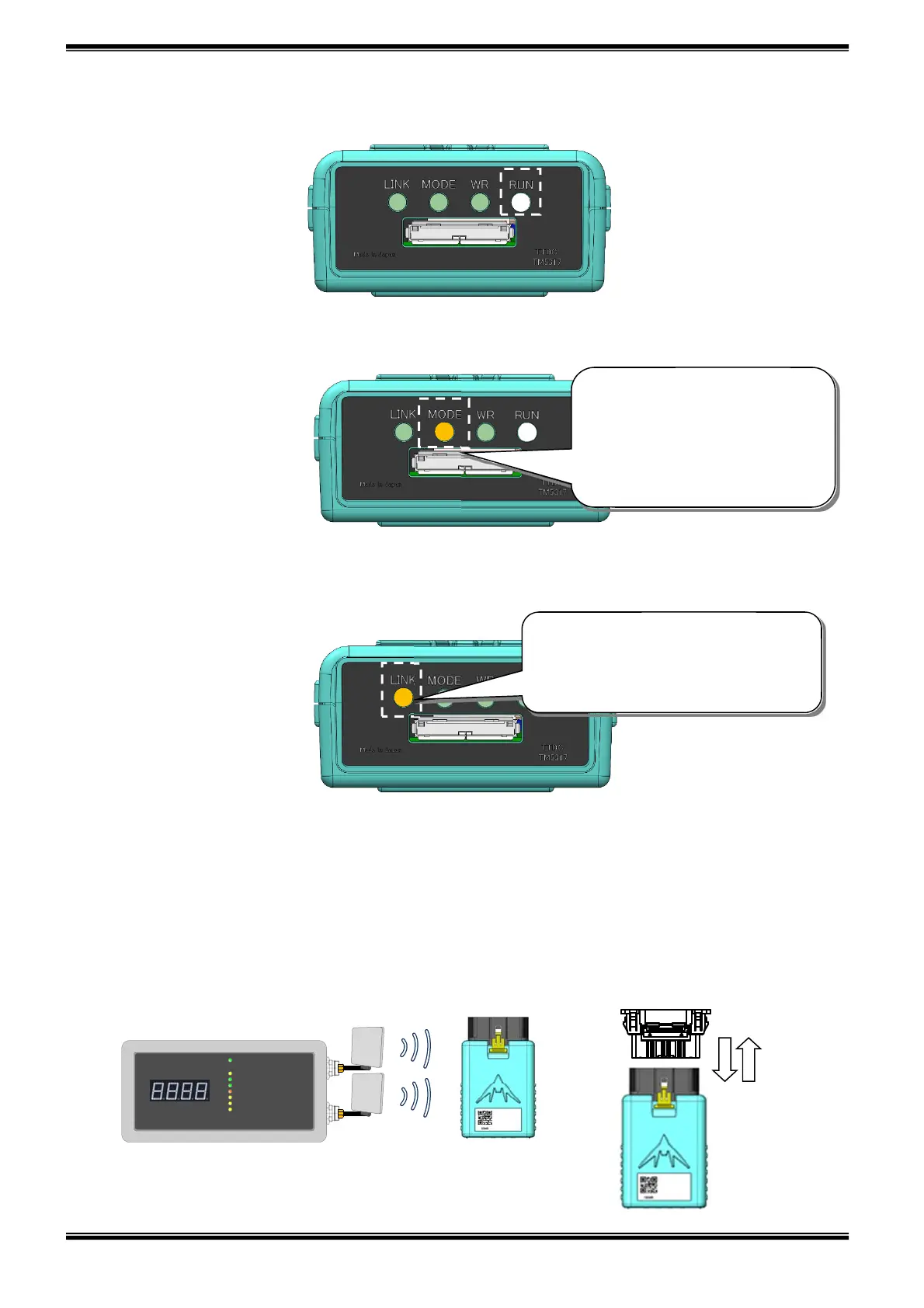

《Wireless terminal》
① When wireless terminals are connected to DLC3 connector of vehicles, [RUN] LED flashes 1 sec cycle
(1Hz).
② If BodyNo is written to wireless terminals (at initial mode), [MODE] LED is turned on.
③ When communication with wireless ST is started, [LINK] LED is turned on linked with communication
port control.
④ When Initial /Parameter write wait mode, it is shifted to sleep mode after set time is passed.
(This time, [RUN] LED is turned off.)
If it is returned from sleep mode, send mode shift instruction from wireless ST, or insert/remove
wireless terminal with vehicle DLC3 connector(Restart wireless terminal).
[LINK]
Turn on when communicating with
wireless ST.
[MODE]
Turn on when BodyNo is
written to wireless terminal
RUN
COLLISION
RECEIVE/LINK
COM PORT
PRG
RF LINK
MODE
ANTENNA
ModetransitioninstructionsaretransmittedbyWirelessVIMStation
Wireless VIM Terminal
Restart
To Next Page
