Toyota TM4875A - Part names

Instruction
Form：DP5-005 Revised：05 13

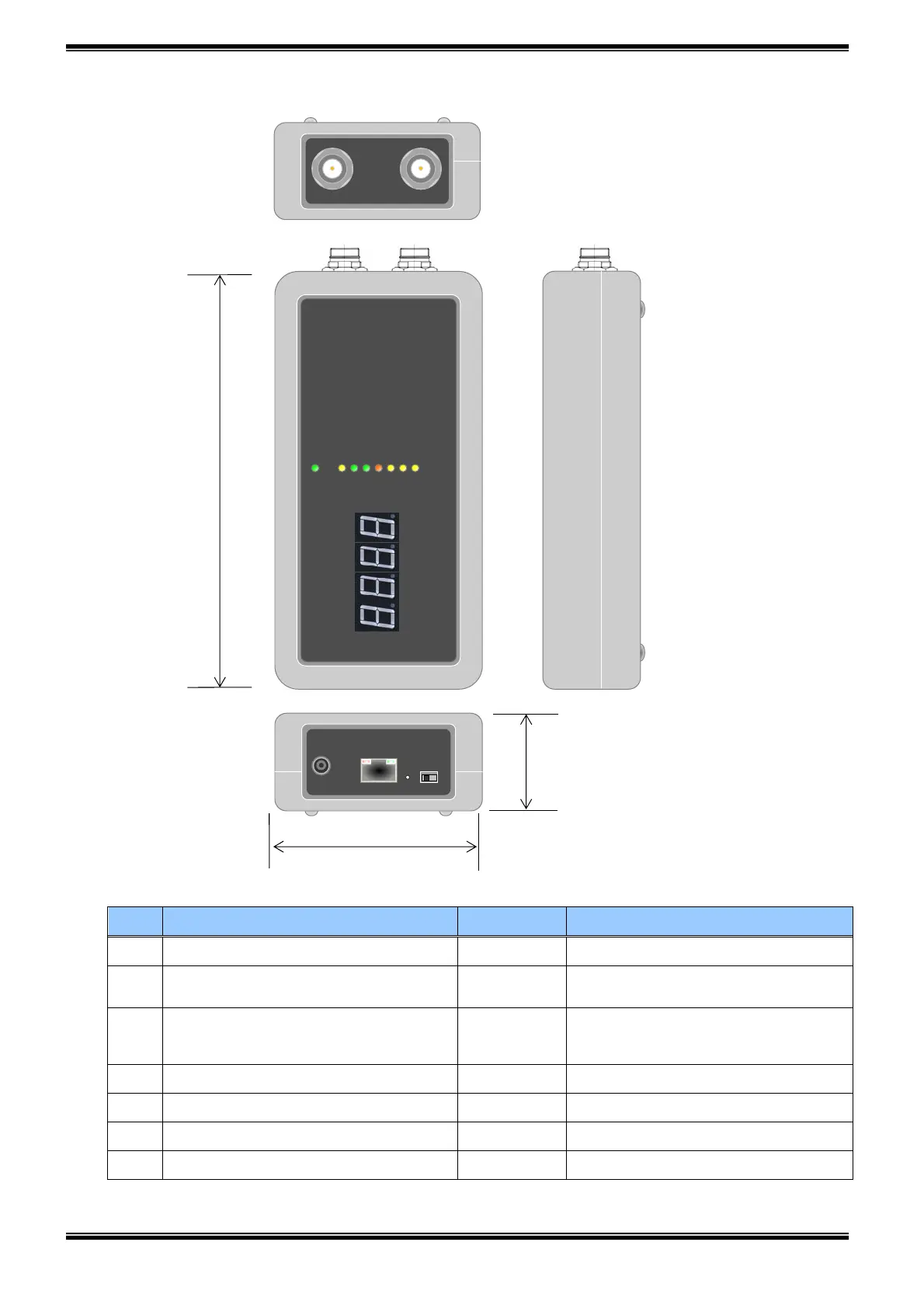

2.2 Part names
《No.1 Wireless ST》
RUN COLLISION RECEIVE/LINK COM PORT PRG RF LINK MODE ANTENNA
DC IN
ETHERNET
RESET
RUN PRG
ANTENNA① ANTENNA②
◇Function name
No. Names Marks Purpose
①
SMA jack for wireless antenna - Wireless antenna connection
②
Status LED - Wireless ST status display (Referto
next content）
③
Status (7 segment) -
Radio frequency display (Refer to
next content)
④
DC jack DC IN Power supply connection
⑤
Ethernet connector (RJ-45) ETHERNET PC communication
⑥
Reset switch RESET Wireless ST reset
⑦
Switch for progralm write
RUN、PRG
Internal program rewriting
①
②
④
⑤
⑥
⑦
171 [mm]
40 [mm]
85 [mm]
③
