3.6 Operation
《Wireless ST》
① If wireless ST is supplied power, [RUN] LED lights.
It lights when starting and flash by 2 sec cycle (0.5Hz) after start is completed.
② If data packet of Ethernet is recognized, [RECEIVE/LINK] LED is lighting/flashing.
If data collision occurs, [COLLISION] LED is light/flashing. These 2 LEDs is linked to Ethernet
connector LED.
③ When diag communication is started, [COM PORT] LED us lighting linked communication port
control.
④ If communication with wireless terminal is started, [RF LINK] LED is lighting linked with
communication port control.

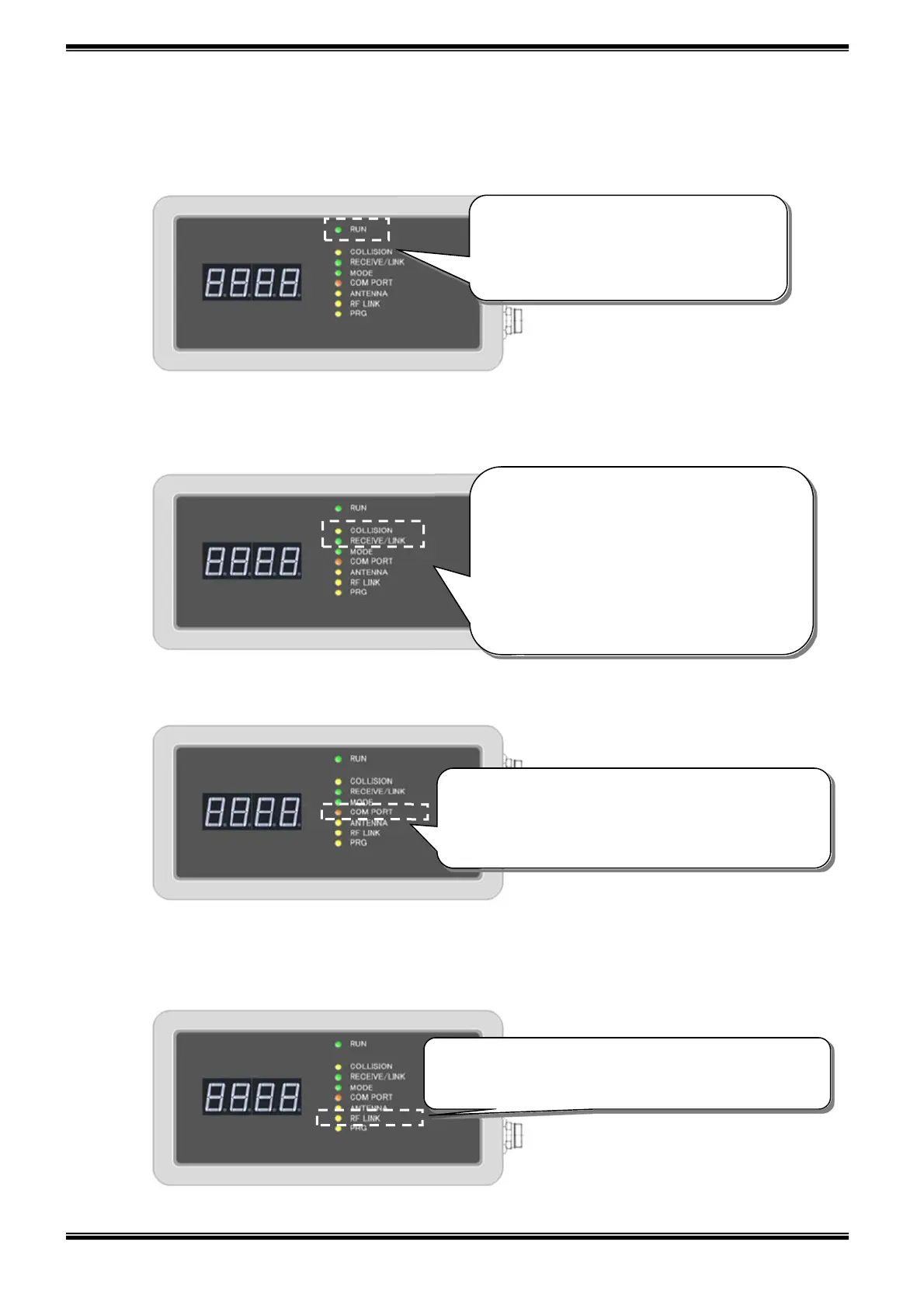

[COLLISION]
On: LAN data collision
[RECEIVE/LINK]
On: Normal Ethernet connection
Blink: Flash at data communication
[COM PORT]
On: When diag communication with vehicle is
started, it is On linked with device
ort.
[RF LINK]
On: Communicating with wireless terminal.
[RUN]
On: starting
Blink: After start completion
