TP-Link AC1900 User Manual

73
Chapter 12 Customize Your Network Settings
• PIN (Personal Identification Number) is an eight-character identification number preset to each router. WPS supported
devices can connect to your router with the PIN. The default PIN is printed on the label of the router.

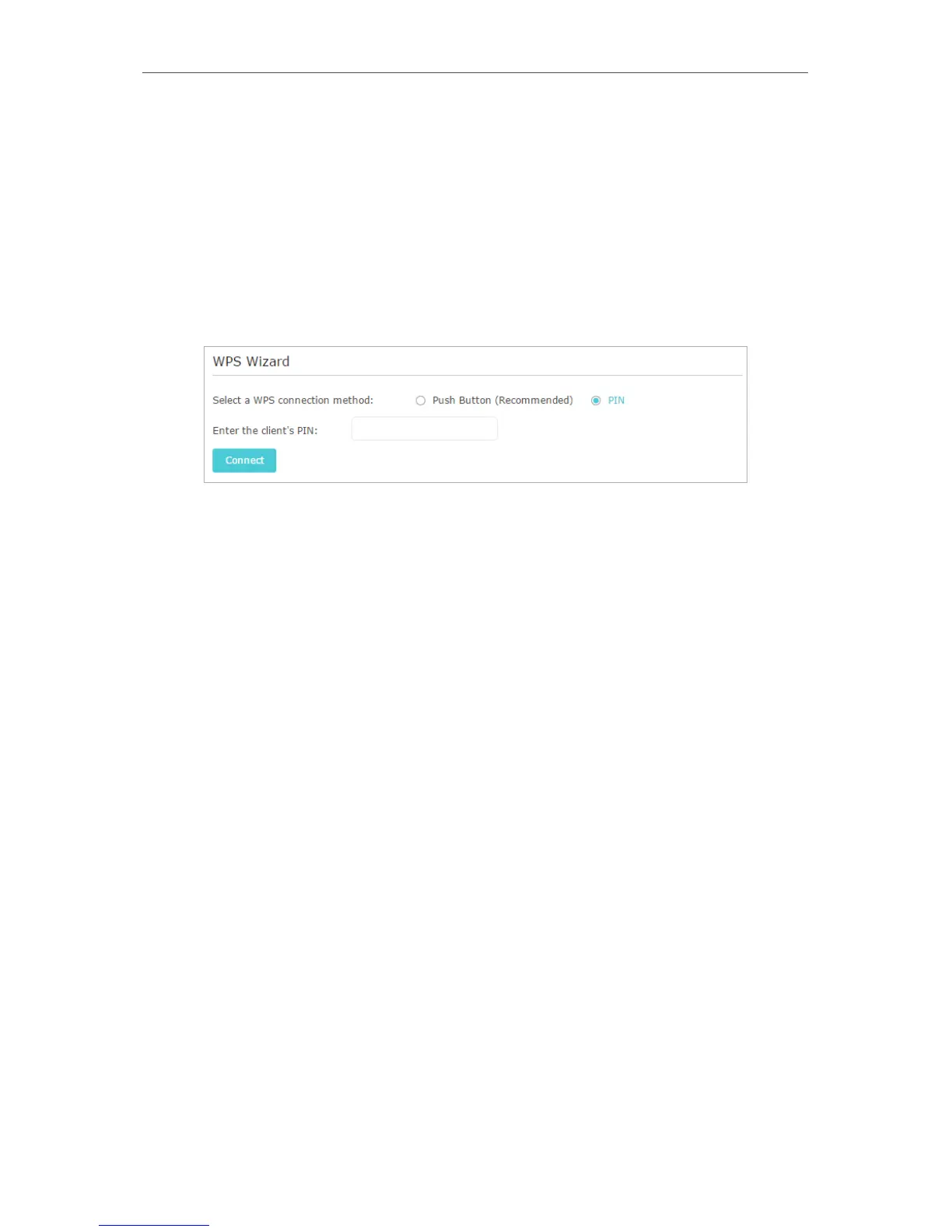

12. 7. 2. Use the WPS Wizard for Wi-Fi Connections
1. Select a setup method:
• Push Button(Recommended): Click Connect on the screen. Within two minutes,
press the WPS button on the client device.
• PIN: Enter the client’s PIN, and click Connect.
2. Success will appear on the above screen and the WPS LED on the router will keep on
for five minutes if the client has been successfully added to the network.

TP-Link AC1900 Specifications

General

Model	RE580D
Beamforming	Yes
Frequency Bands	2.4 GHz, 5 GHz
Wireless Standards	IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Wireless Security	WPA/WPA2
Button	WPS Button, Reset Button
Maximum Speed	1900Mbps (600Mbps at 2.4GHz + 1300Mbps at 5GHz)
