Chapter 12

Customize Your Network Settings

Router A. In the example, the IP address of the company network is the destination IP

address, so here enter 172.30.30.1.

• Subnet Mask: Determines the destination network with the destination IP address.

If the destination is a single IP address, enter 255.255.255.255; otherwise, enter the

subnet mask of the corresponding network IP. In the example, the destination network

is a single IP, so here enter 255.255.255.255.

• Default Gateway: The IP address of the gateway device to which the data packets will

be sent. This IP address must be on the same subnet with the router’s IP which sends

out data. In the example, the data packets will be sent to the LAN port of Router B and

then to the Server, so the default gateway should be 192.168.0.2.

• Interface: Determined by the port (WAN/LAN) that sends out data packets. In the

example, the data are sent to the gateway through the LAN port of Router A, so LAN/

WLAN should be selected.

• Description: Enter a description for this static routing entry.

5. Click SAVE .

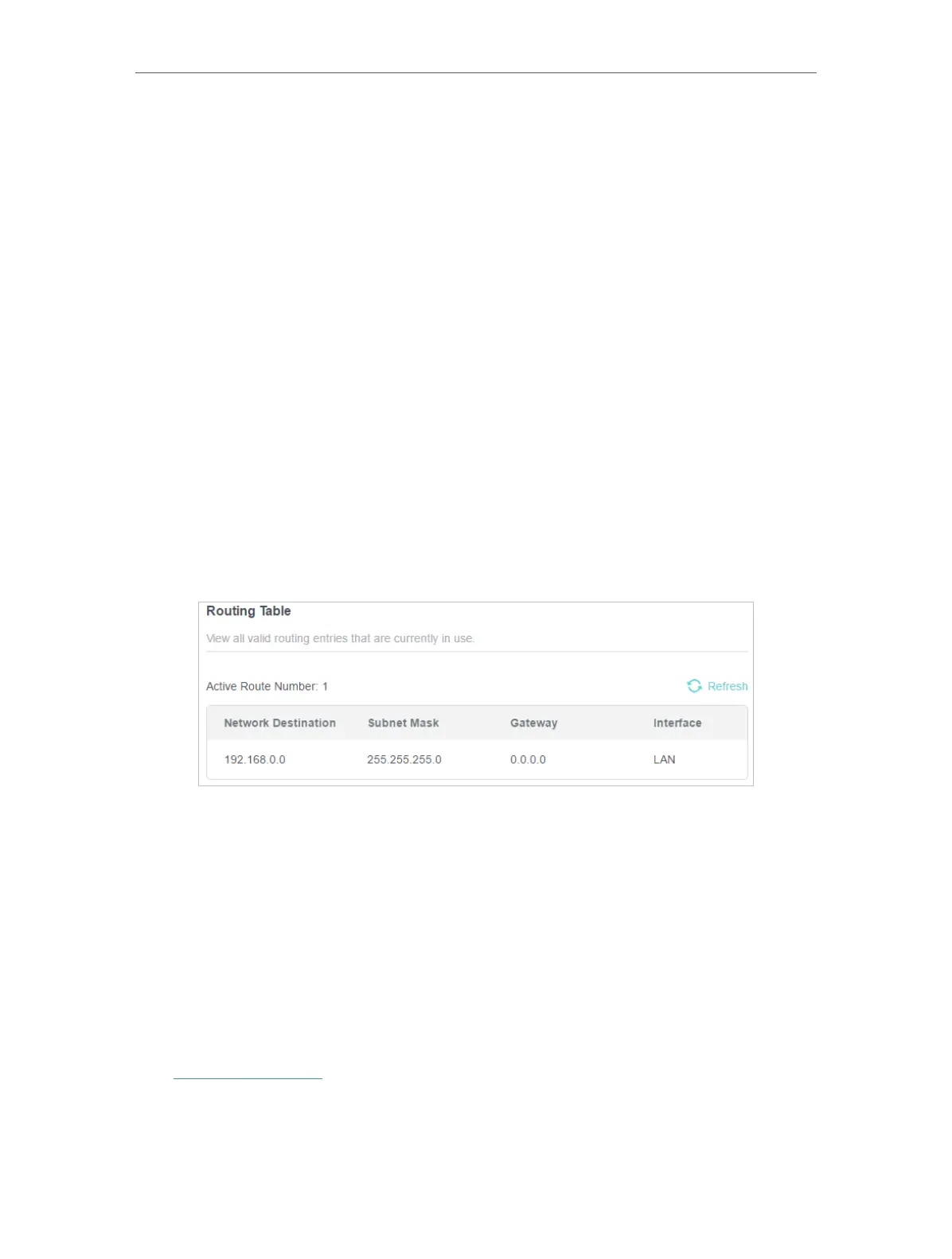

6. Check the Routing Table below. If you can find the entry you’ve set, the static routing

is set successfully.

Done!

Open a web browser on your PC. Enter the company server’s IP address to visit the

company network.

12. 6. Specify Wireless Settings

The router’s wireless network name (SSID) and password, and security option are preset

in the factory. The preset SSID and password can be found on the label of the router.

You can customize the wireless settings according to your needs.

Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the

router.

• To enable or disable the wireless function:
