TP-Link Archer BE900 User Manual

130
Chapter 18
Manage the Router

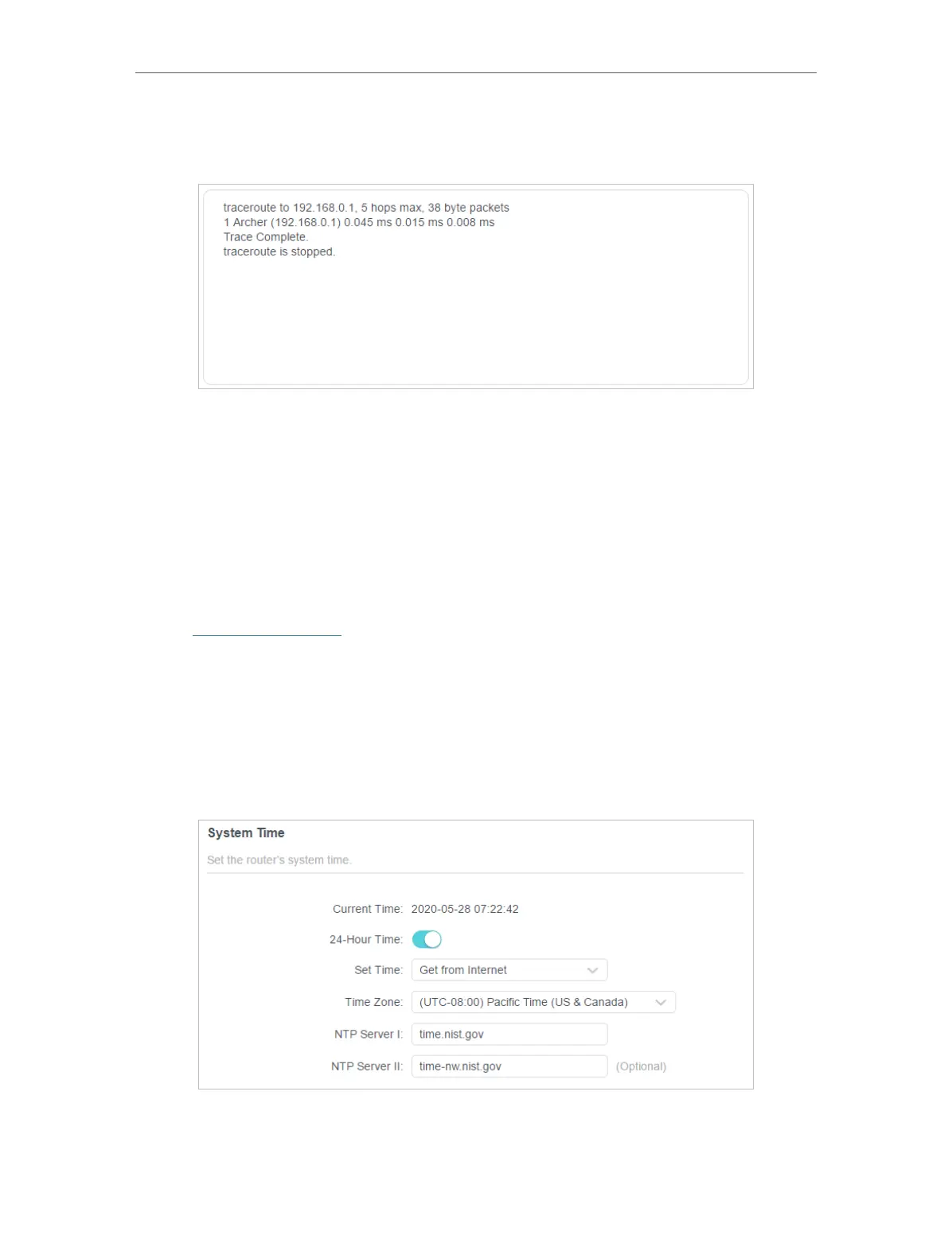

The figure below indicates the proper connection between the router and the Yahoo
server (www.Yahoo.com) tested through Traceroute.
18. 9. Set System Time and Language
System time is the time displayed while the router is running. The system time you
configure here will be used for other time-based functions like Parental Controls. You
can choose the way to obtain the system time as needed.
System language is the language displayed when you log into the router. You can
change the system language as needed.
1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for
the router.
2. Go to Advanced > System > Time & Language.
• To get time from the internet:
1. Enable 24-Hour Time if you want the time to display in a 24-hour way.
2. In the Set Time field, select Get from Internet.
3. Select your local Time Zone from the drop-down list.

TP-Link Archer BE900 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black, Grey
Modulation	4096-QAM
Wi-Fi band	Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN data transfer rate (max)	24000 Mbit/s
WLAN data transfer rate (first band)	1376 Mbit/s
WLAN data transfer rate (second band)	5760 Mbit/s
VPN server	OpenVPN, PPTP, L2TP, WireGuard
Networking standards	IEEE 802.1x
Ethernet LAN data rates	1000, 2500, 10000 Mbit/s
Ethernet LAN interface type	Multi-Gigabit Ethernet
Number of guest networks (5 GHz)	2
Number of guest networks (2.4 GHz)	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	5
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Cables included	LAN (RJ-45)
Antennas quantity	12
Certification	CE, FCC, RoHS
Output current	5 A
Output voltage	15 V
Power source type	AC
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Browser supported	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	302 mm
Width	96 mm
Height	262.5 mm
