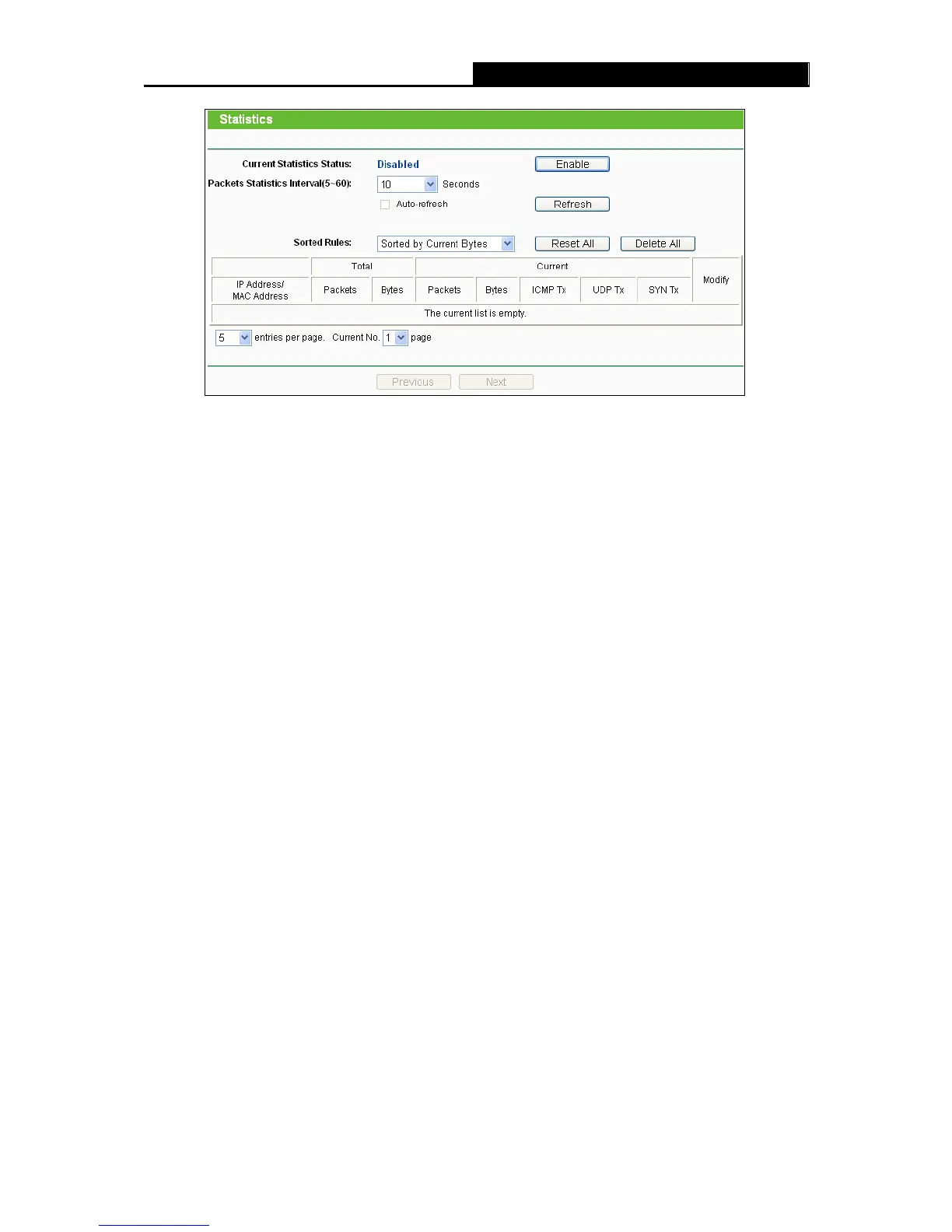

Figure 4-130 Statistics
 Current Statistics Status - Enable or Disable. The default value is disabled. To enable it,
click the Enable button. If it is disabled, the function of DoS protection in Security settings will
be disabled.
 Packets Statistics Interval
（
5-60
）
- The default value is 10. Select a value between 5 and
60 seconds in the drop-down list. The Packets Statistic interval indicates the time section of
the packets statistic.
 Sorted Rules - Choose how the displayed statistics are sorted.
Select the Auto-refresh checkbox to refresh automatically.
Click the Refresh button to refresh immediately.
Click Reset All to reset the values of all the entries to zero.
Click Delete All to delete all entries in the table.
