TP-Link Archer C5 AC1200

Archer C5
AC1200 Wireless Dual Band Gigabit Router
- 8 -
5. Plug the supplied power adapter into the Power jack, and then press the On/Off button to
turn on the router and wait for 1 minute.

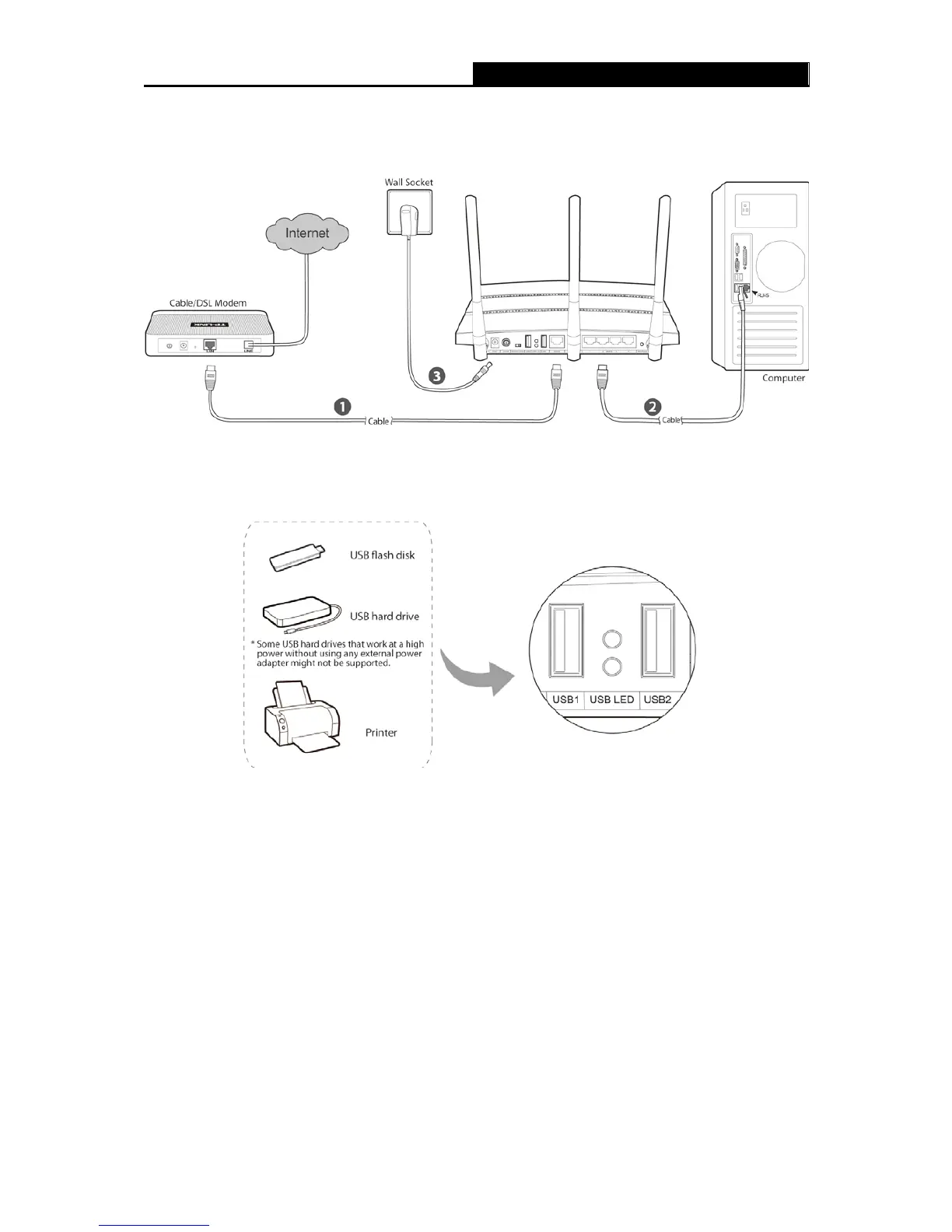

Figure 2-1 Hardware Installation
Figure 2-2 USB Installation

Note:
If you want to use the router to share files or printer, plug the USB storage device to the USB ports
or connect the printer to the router with a matching cable.
