Chapter 1
Get to Know About Your Router
(Internet)
Green On Internet service is available.
Off The router’s Internet port is unplugged.
1. 2. 2. Back Panel

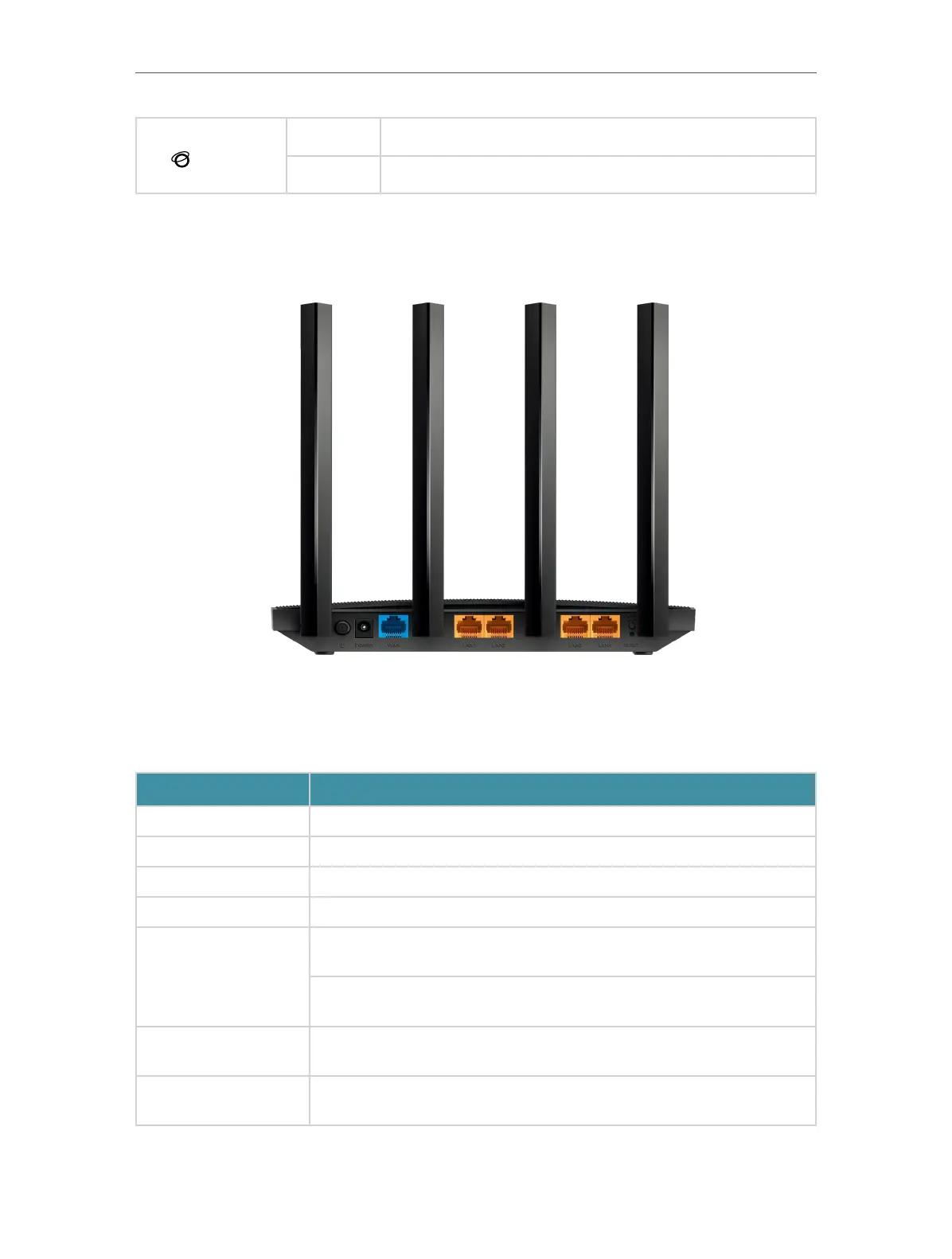

The following parts (view from left to right) are located on the back panel.
Button and Port Explanation
Item Description
Power On/Off Button Press this button to power on or off the router.
Power Port For connecting the router to a power socket via the provided power adapter.
WAN Port For connecting to a DSL/Cable modem, or an Ethernet jack.
LAN Ports (1/2/3/4) For connecting your PC or other wired devices to the router.
WPS/Wi-Fi Button
Press the button for 1 second, and immediately press the WPS button on
your client to start the WPS process.
Press and hold the button for 5 seconds to turn on or off the wireless
function of your router.
Reset Button
Press and hold the button until all LEDs turn on to reset the router to its
factory default settings.
Antennas
Used for wireless operation and data transmit. Upright them for the best
Wi-Fi performance.
