L2 Managed Switch
Connection



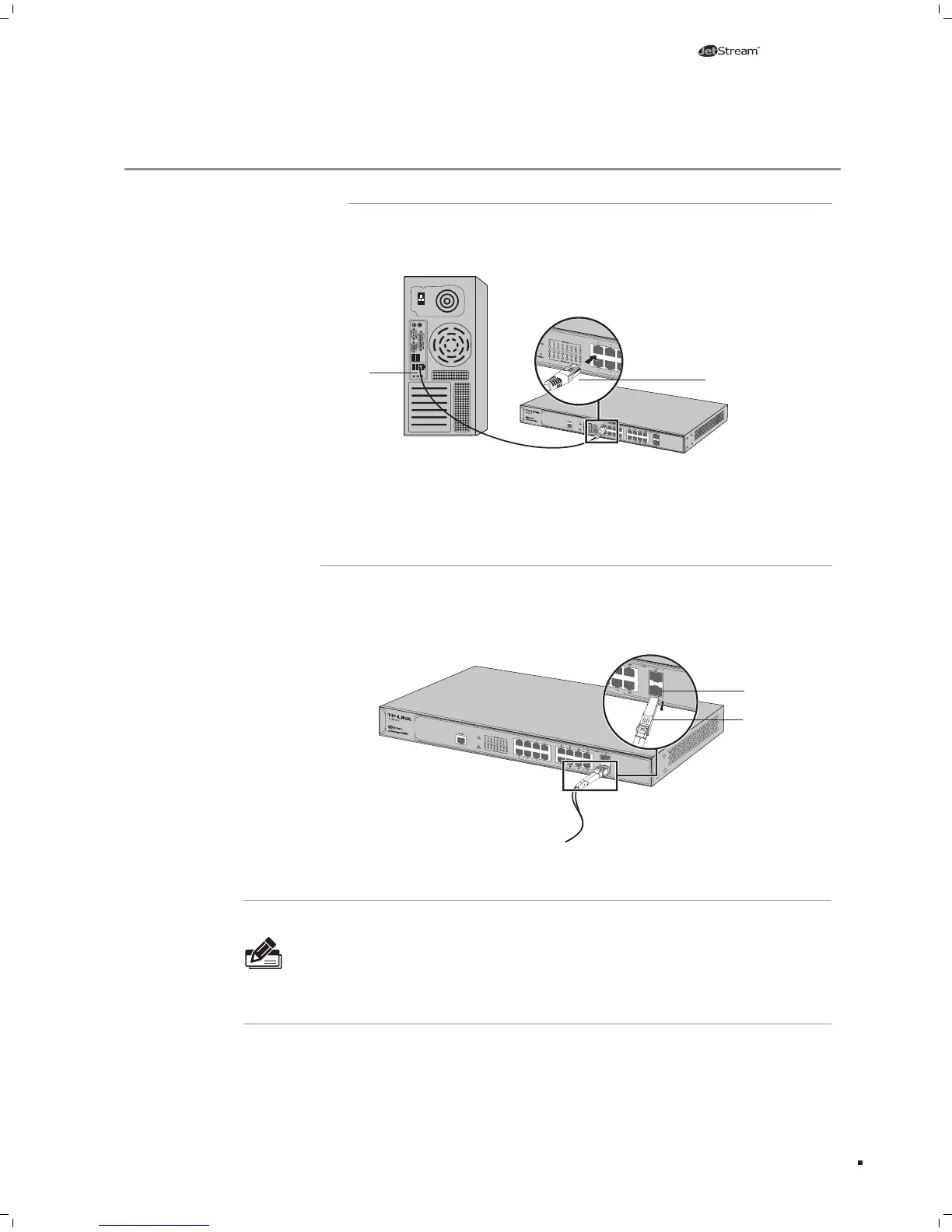

Connect the Ethernet ports of the Switch to the network devices by RJ45 cable as the
following figure shown.
RJ45 Cable
RJ45 Port
Connecting the RJ45 PortFigure 4-1

Connect the SFP port to a SFP module. For TL-SG3216/TL-SG3424/TL-SG3424P, if an
SFP transceiver (purchased separately) is installed in a slot and has a valid link on the
port, the associated RJ45 port will be disabled and cannot be used.
SFP Port
Inserting the SFP ModuleFigure 4-2
Note: For TL-SG3216/TL-SG3424/TL-SG3424P, when using the SFP port with a
100M module or a gigabit module, you need log on to the GUI (Graphical User
Interface) of the Switch and congure its corresponding Speed and Duplex mode on
Switching
→
Port
→
Port Cong page. For 100M module, please select 100MFD while
select 1000MFD for gigabit module. By default, the Speed and Duplex mode of SFP port
is 1000MFD. TL-SG3210 supports 1000M SFP module connection only.
SFP Module
