With the Link Fault Pass Through function enabled (optional with
switch LFP), TP port and FX port of the same converter will inform
each other the fault link status so that when one side of the link fails,
the other side will force the link to shut down as soon as noticed. The
procedure will be illustrated as shown below.

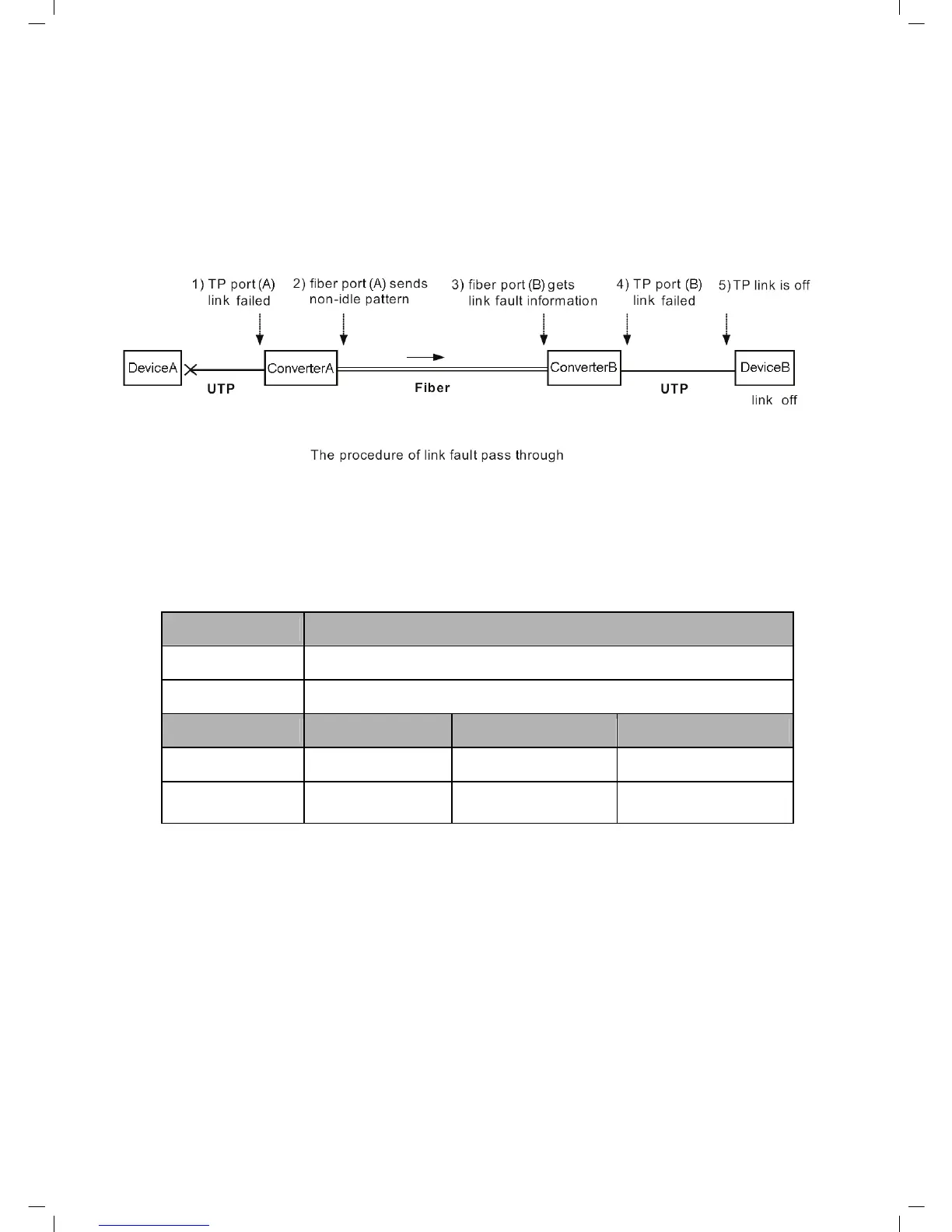

If link fail happens on TP port (A), the FX port (A) sends non-idle
pattern to notice the FX port (B). The FX port (B) then forces its TP
port (B) to link failed after receiving the non-idle pattern. Link status
LED will also be off for both Converters and Devices as shown below.
Link LED
Device A Off
Device B Off
FX_LFP FX_Link/Act TP_Link/Act
Converter A On Off Off
Converter B On Off Off

TP-Link MC100CM Specifications

General

Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	1310 nm
Maximum transfer distance	2000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Internal	No
Certification	FCC, CE
Product color	Black
LED indicators	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Fiber ethernet cabling technology	100BASE-FX
Power consumption (max)	2.5 W
Package depth	204 mm
Package width	165 mm
Package height	65 mm
Package weight	380 g

Weight and Dimensions

Depth	73 mm
Width	94.5 mm
Height	27 mm
