TP-Link MC100CM User Manual

6

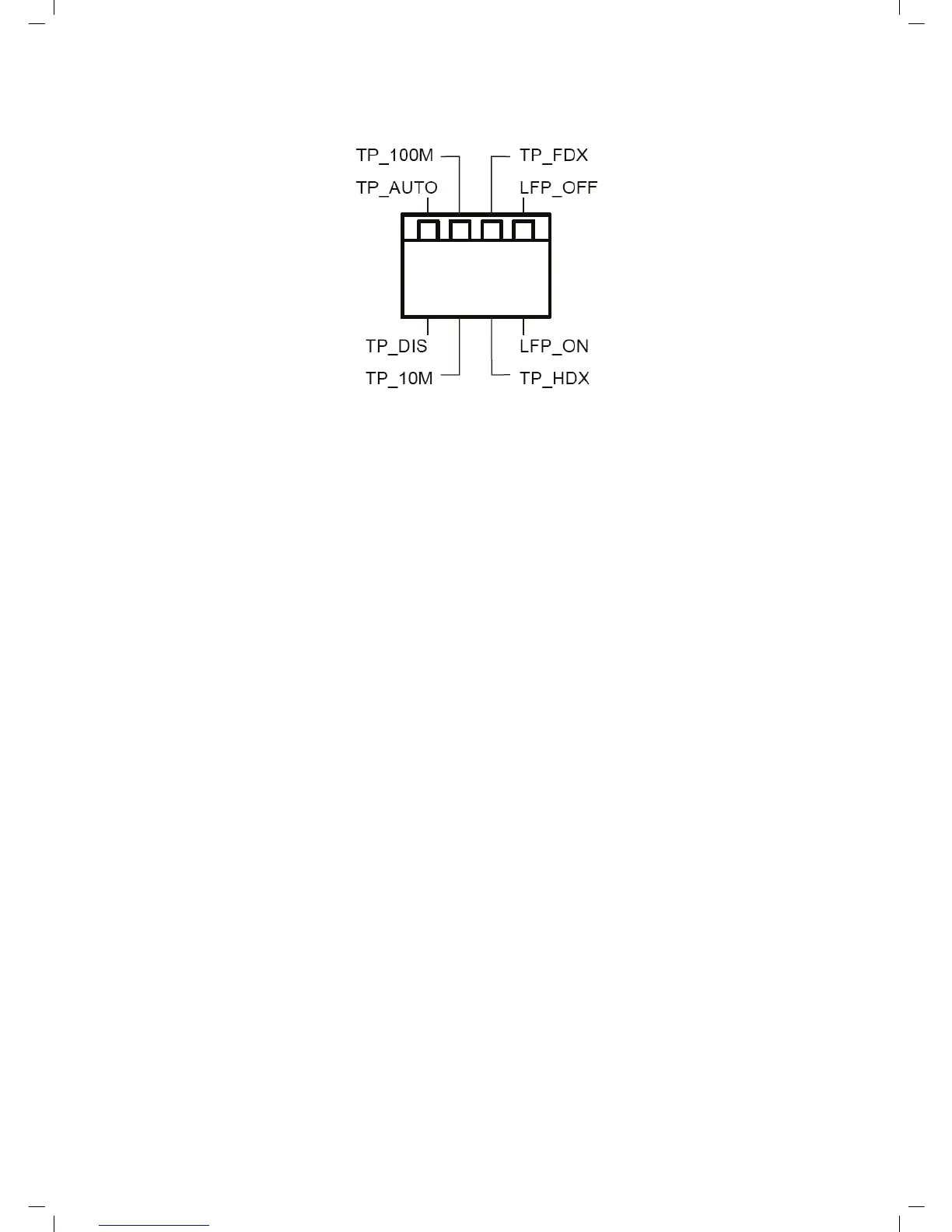

1.5.2 Switch
¾ TP_AUTO: The TP port operates in Auto-Negotiation mode;
¾ TP_DIS: The TP port operates in FORCE mode;
¾ TP_100M: The TP port operates in 100Base-Tx;
¾ TP_10M: The TP port operates in 10Base-T mode;
¾ TP_FDX: The TP port operates in Full-Duplex mode;
¾ TP_HDX: The TP port operates in Half-Duplex mode;
¾ LFP_OFF: The Link Fault Pass Through function disable;
¾ LFP_ON: The Link Fault Pass Through function enable.
Connect different devices, we suggest leaving the switches like these
as shown below, otherwise the Media Converter may not work
normally.

TP-Link MC100CM Specifications

General

Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Wavelength	1310 nm
Maximum transfer distance	2000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Internal	No
Certification	FCC, CE
Product color	Black
LED indicators	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Ethernet interface type	Gigabit Ethernet
Maximum data transfer rate	1000 Mbit/s
Fiber ethernet cabling technology	100BASE-FX
Power consumption (max)	2.5 W
Package depth	204 mm
Package width	165 mm
Package height	65 mm
Package weight	380 g

Weight and Dimensions

Depth	73 mm
Width	94.5 mm
Height	27 mm
