TP-Link TF-3200 User Manual

TF-3200 10/100Mbps PCI Network Adapter
5

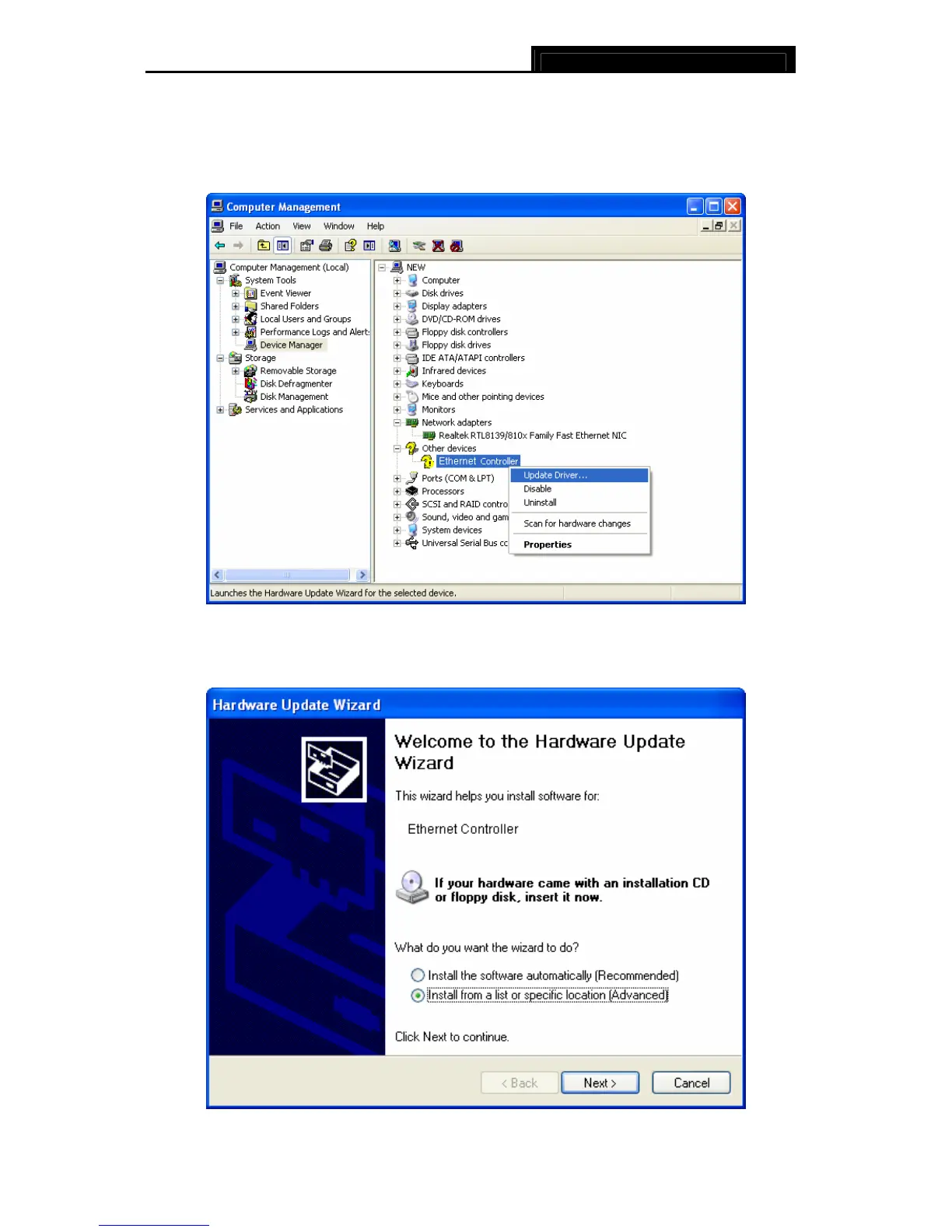

3. The Computer Management screen will appear as shown in Figure 2-4. Click Device
Manager, and then you will see the various options on the right. Click Other devices, and
then from the drop-down list please find Ethernet Controller. Right-click it, and then select
Update Driver….
Figure 2-4
4. The Hardware Update Wizard window will show up as shown in Figure 2-5. Select In
stall
from a list or specific location [Advanced]，and then click Next.
Figure 2-5

TP-Link TF-3200 Specifications

General

Full duplex	Yes
Maximum data transfer rate	100 Mbit/s
Compliance industry standards	IEEE 802.3, 802.3u, 802.3x
Supported data transfer rates	10/100 Mbps
Connectivity technology	Wired
Compatible operating systems	Win NT, XP, VISTA Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
