Power Supply

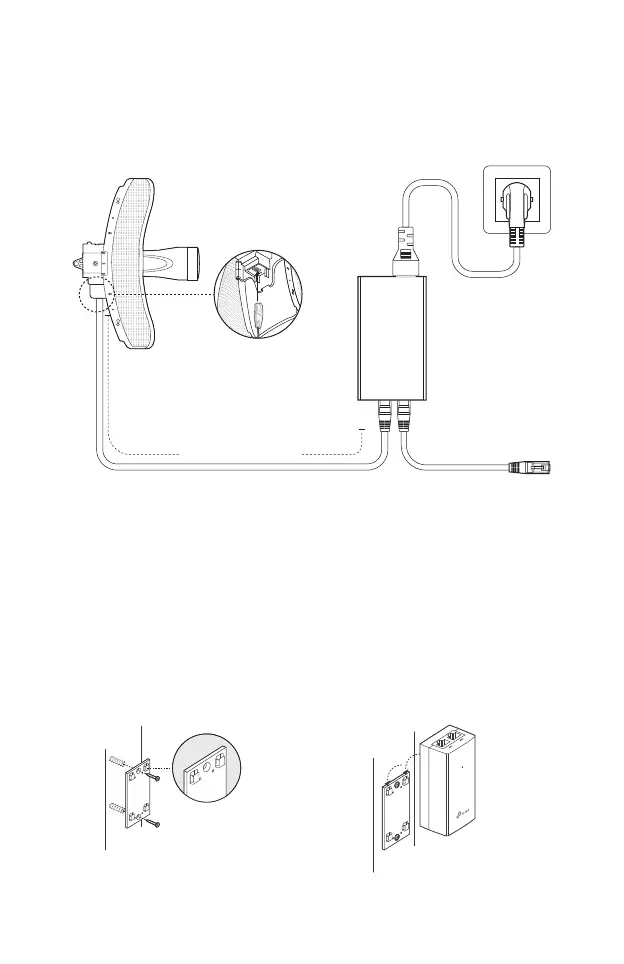

• Connecting the PoE Adapter
Connect the devices as shown in the gure below.
PoE LAN
Ethernet cable
length up to 60m
• Mounting the PoE Adapter (Optional)
Note: To ensure the passive PoE adapter is attached most
securely, it is recommended to install the adapter with the
Ethernet port facing upward.
1. Drill two holes on the wall
and insert the plastic wall
anchors into the holes.
Secure the mounting
bracket to the wall.
2. Attach the passive PoE
adapter to the mounting
bracket by sliding the adapter
in the direction of the arrows
until it locks into place.
To Next Page
