Hardware Installation
TERMS OF USE: TP-Link’s Pharos series outdoor CPEs must be
installed by a certied professional. Installers must abide by local
rules and regulations in terms of legal frequency channels, output
power, and Dynamic Frequency Selection (DFS) requirements.

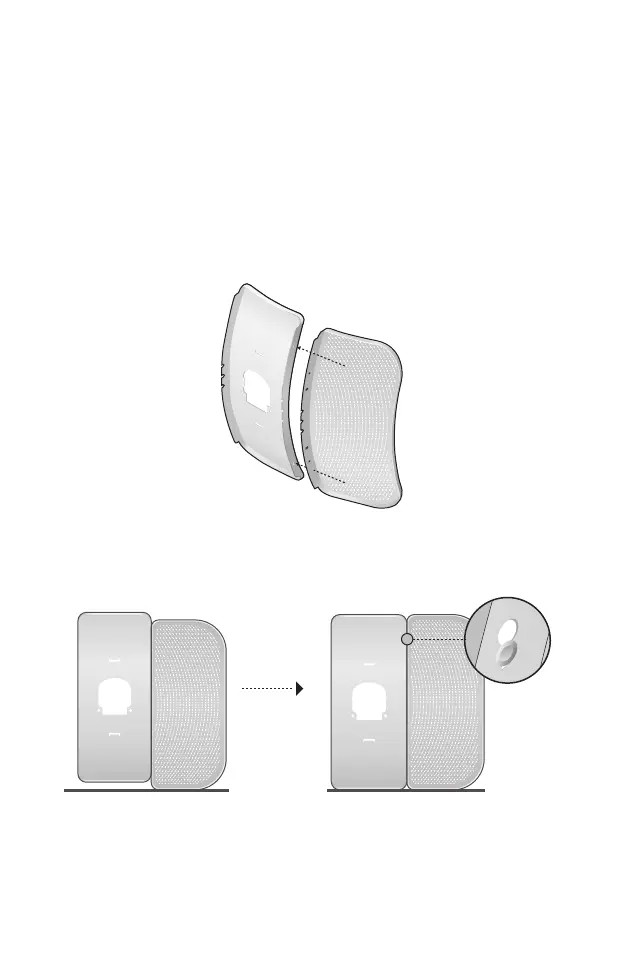

1. Attach the Side Reector Panels to the Center Reector Panel
as follows:
a. Insert the two mounting studs on the Center Reector Panel
into the large opening of the slots on the Side Reector Panel.
b. Slide the Side Reector Panel until the mounting studs are
positioned over the narrow opening of the slots, and the top
edges of the panels should be aligned when done.
