-123-

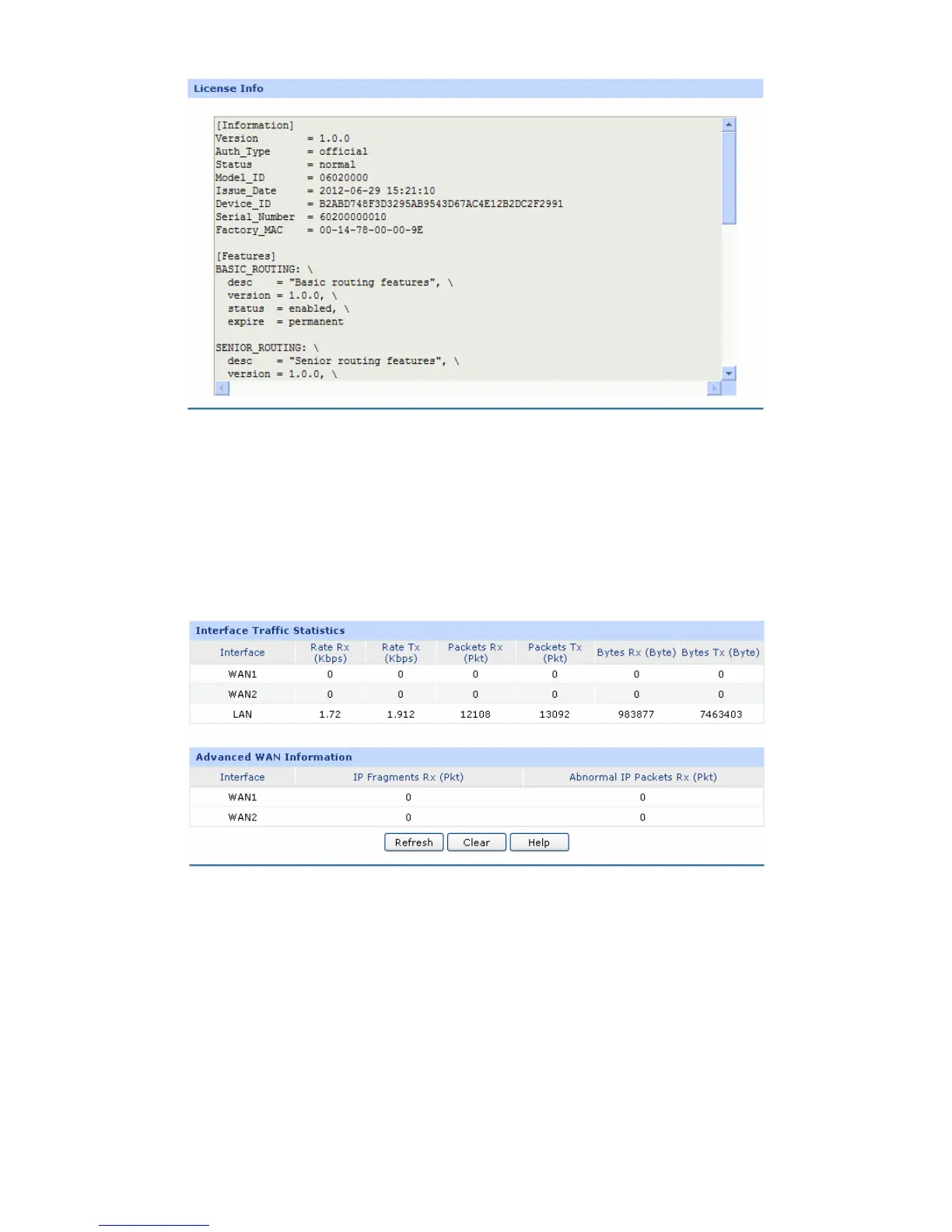

Figure 3-88 License
3.8.4 Statistics
3.8.4.1 Interface Traffic Statistics
Interface Traffic Statistics screen displays the detailed traffic information of each port and extra
information of WAN ports.
Choose the menu Maintenance→Statistics→Interface Traffic Statistics to load the following page.
Figure 3-89 Interface Traffic Statistics
The following items are displayed on this screen:
Interface Traffic Statistics
Interface:
Displays the interface.
Rate Rx： Displays the rate for receiving data frames.
Rate Tx:
Displays the rate for transmitting data frames.
