-53-

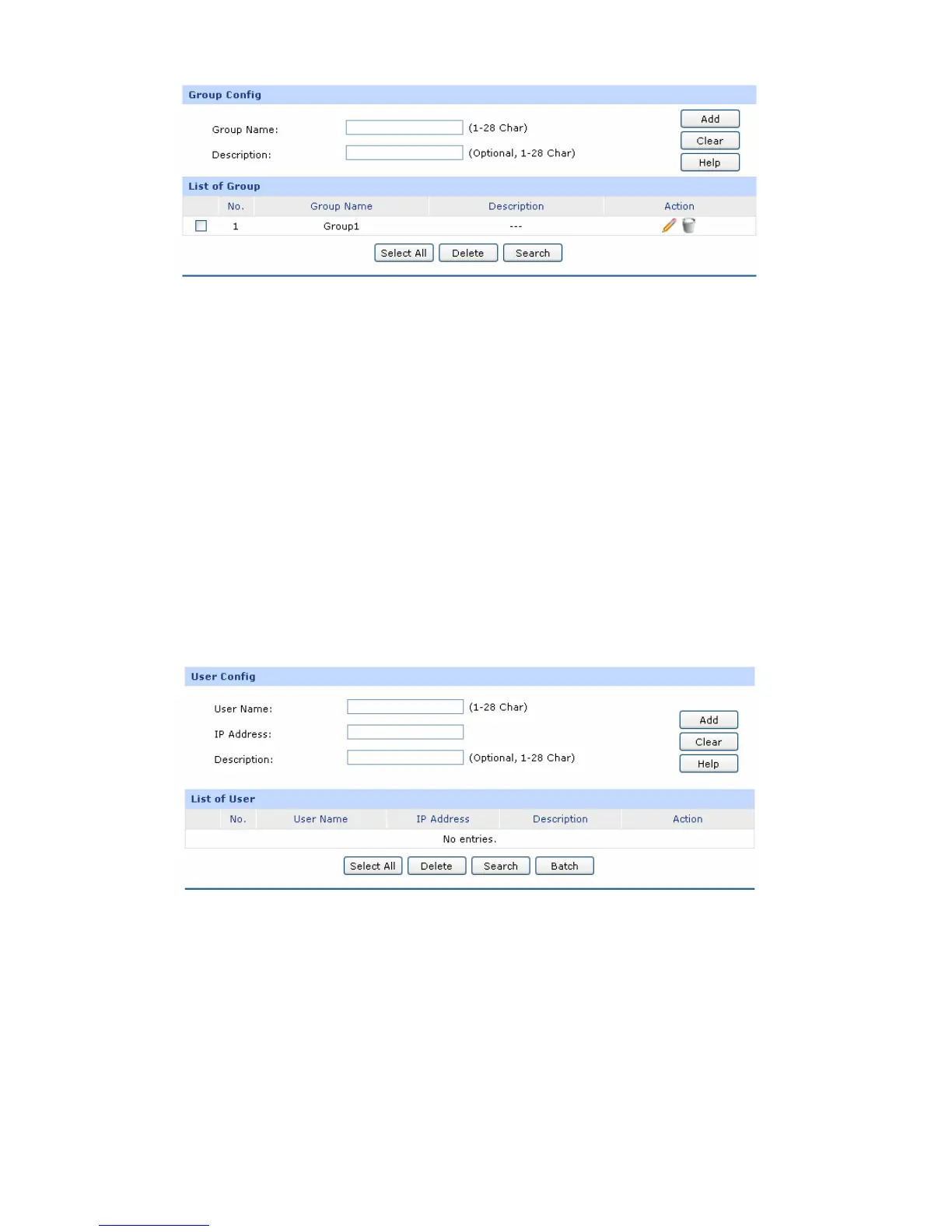

Figure
3-30 Group Configuration
The following items are displayed on this screen:
Group Config
Group Name: Specify a unique name for the group.
Description: Give a description for the group. It's optional.
List of Group
In this table, you can view the information of the Groups and edit them by the Action buttons.
3.3.2 User
On this page, you can configure the User for the group.
Choose the menu User Group→User to load the following page.
Figure 3-31 User Configuration
The following items are displayed on this screen:
User Config
User Name:
Specify a unique name for the user.
IP Address:
Enter the IP Address of the user. It cannot be the network address or
broadcast address of the port.
