-141-

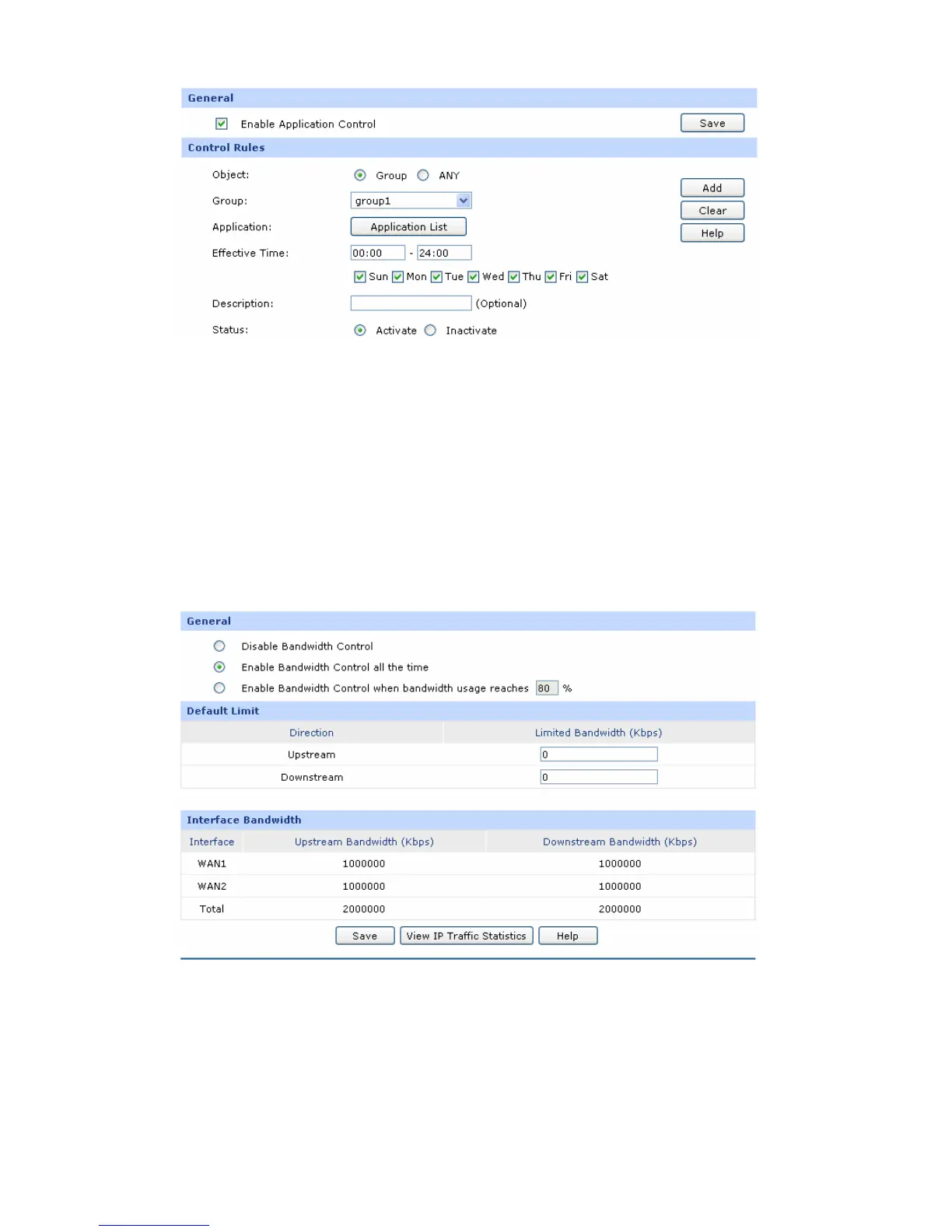

Figure 4-11 App Rules
4.3.3.3 Bandwidth Control
To enable Bandwidth Control, you should configure the total bandwidth of interfaces and the detailed
bandwidth control rule first.
1) Enable Bandwidth Control
Choose the menu Advanced→Traffic Control→Setup to load the configuration page. Check the box
before Enable Bandwidth Control and click the <Save> button to apply.
Figure 4-12 Bandwidth Setup
2) Interface Bandwidth
Choose the menu Network→WAN→WAN1 to load the configuration page. Configure the Upstream
Bandwidth and Downstream Bandwidth of the interface as Figure 4-13 shows. The entered
bandwidth value should be consistent with the actual bandwidth value.
