-13-
Downstream Bandwidth:
Specify the bandwidth for receiving packets on the port.
2) Dynamic IP
If your ISP (Internet Service Provider) assigns the IP address automatically, please choose the
Dynamic IP connection type to obtain the parameters for WAN port automatically.

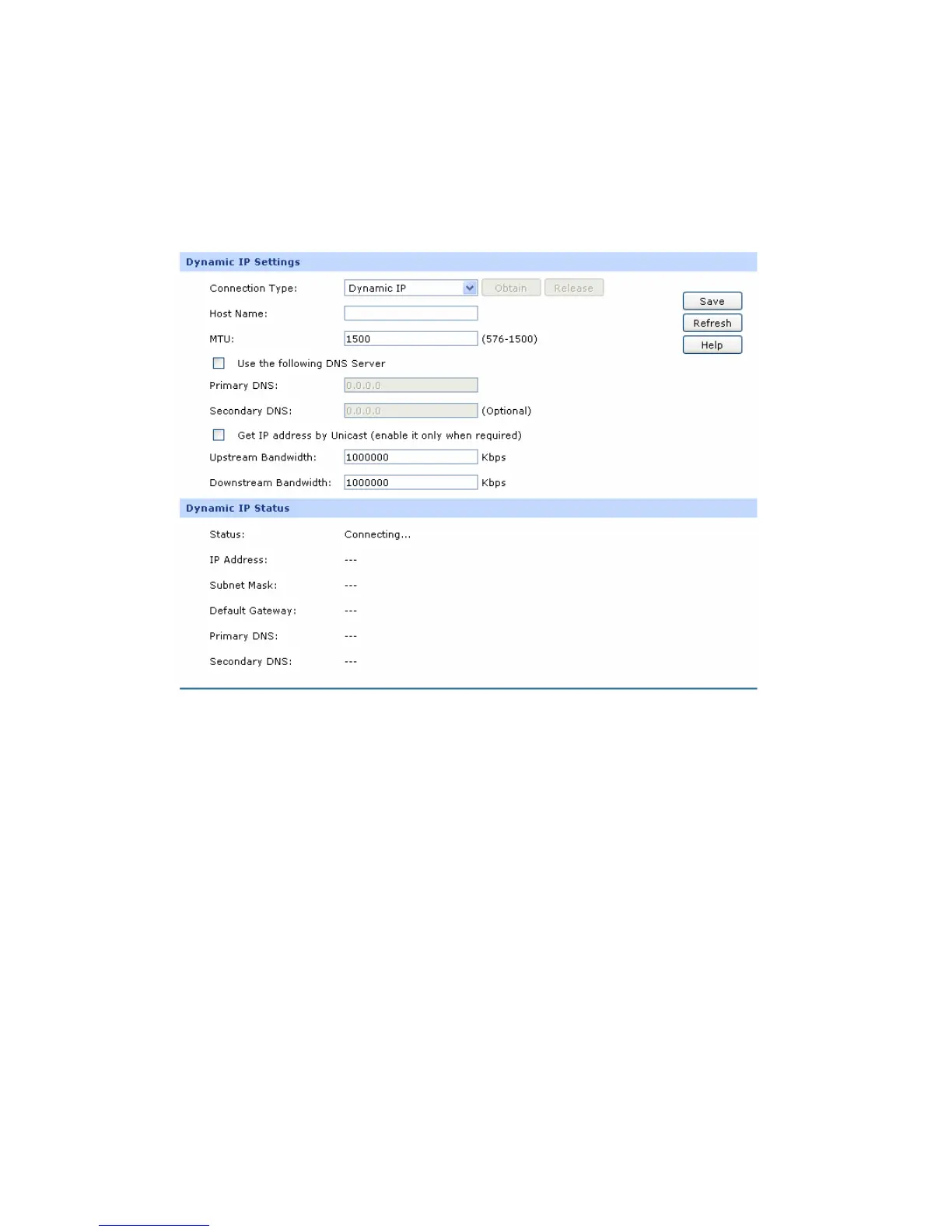

Figure 3-8 WAN – Dynamic IP
The following items are displayed on this screen:
Dynamic IP
Connection Type:
Select Dynamic IP if your ISP assigns the IP address
automatically. Click <Obtain> to get the IP address from your
ISP’s server. Click <Release> to release the current IP address of
WAN port.
Host Name:
Optional. This field allows you to give a name for the Router. It's
blank by default.
MTU:
MTU (Maximum Transmission Unit) is the maximum data unit
transmitted by the physical network. It can be set in the range of
576-1500. The default MTU is 1500. It is recommended to keep
