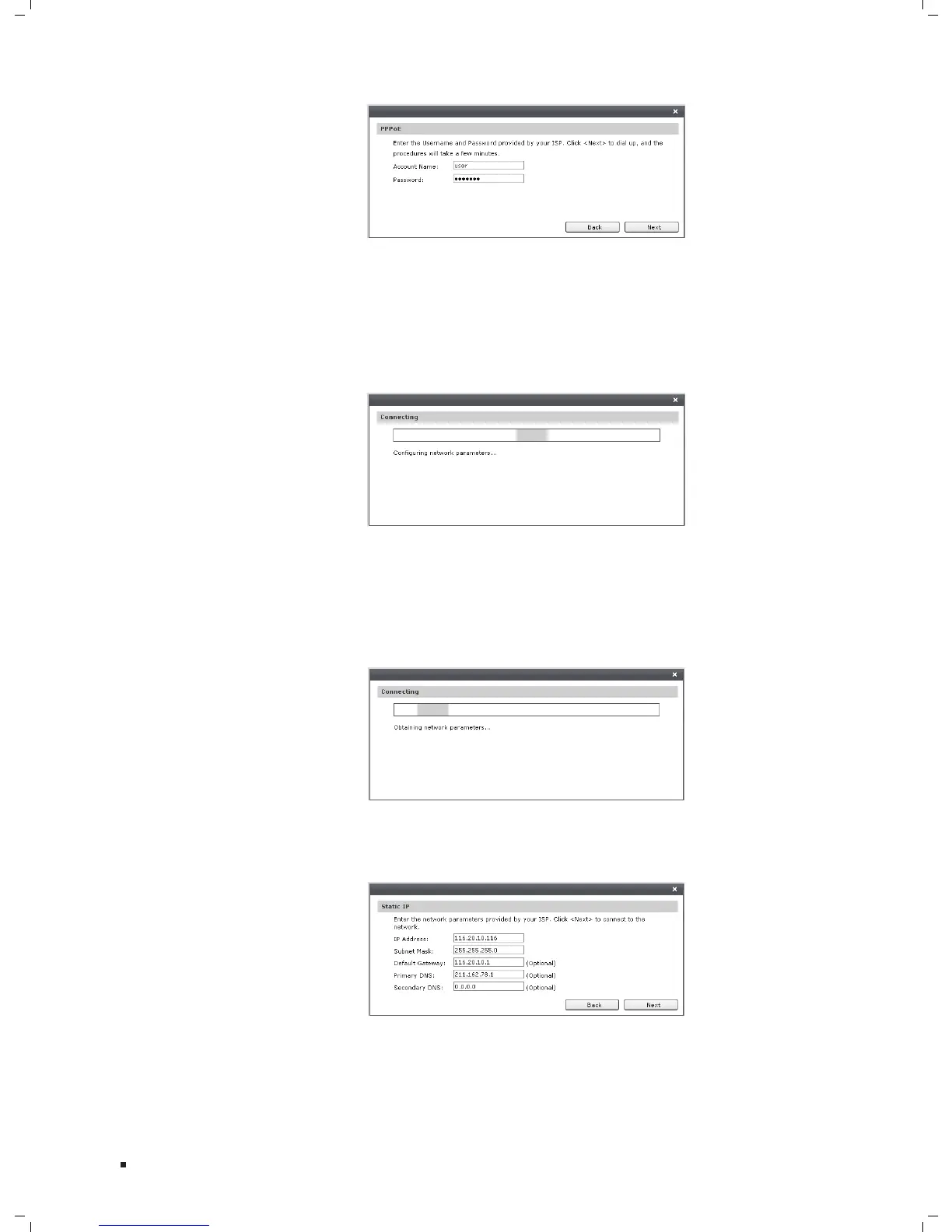

WAN Connection Type - PPPoEFigure 5-8
Click Next to dial up, and the process will take a few minutes. The process of
configuring the network parameters is shown as Figure 5-9. If you close the screen
during the process, the configuration will still be continued in the background.
These fields are case sensitive. If you have difficulty in this process, please contact
your ISP.
WAN Connection Type – PPPoE ConnectingFigure 5-9
2)If your ISP assigns the IP address automatically, please choose the Dynamic IP
connection type to obtain the parameters for WAN port automatically. The process
for obtain the parameter may take a few minutes as Figure 5-10 shown. If you
close the screen during the process, the configuration will still be continued in the
background.
WAN Connection Type - Dynamic IPFigure 5-10
3)If you choose Static IP, you should enter the detailed IP information provided by
your ISP in Figure 5-11.
WAN Connection Type - Static IPFigure 5-11
Then click Next. The process for configuring the network parameters is shown as
Figure 5-12. If you close the screen during the process, the configuration will still be
continued in the background.
