TL-WA501G 54M Wireless Access Point User Guide

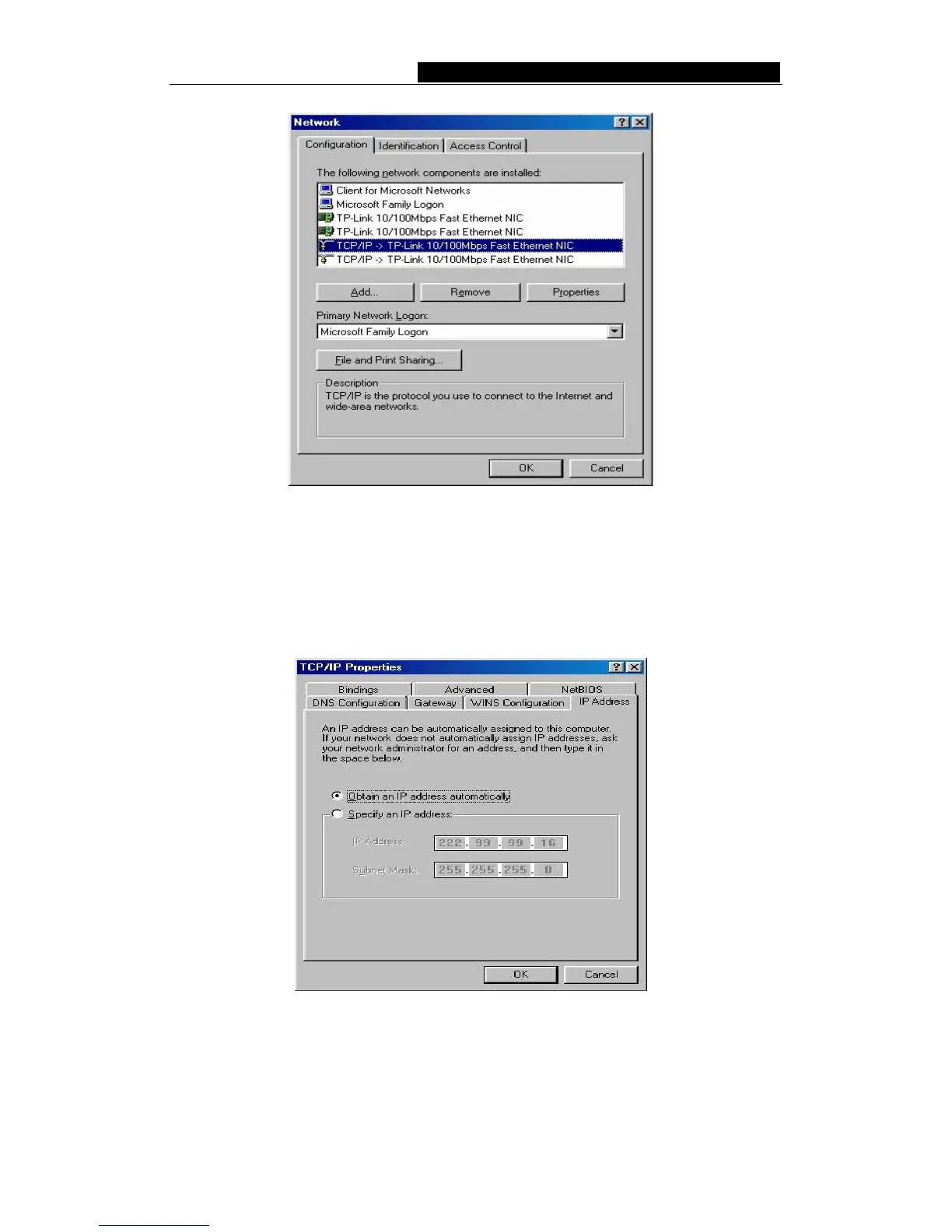

Figure B-3: Configuration tab
3) Click on Properties. The following TCP/IP Properties window will display and
the IP Address tab is open on this window by default.
4) Now you have two ways to configure the TCP/IP protocol below:
• Assigned by DHCP Sever
a. Select Obtain an IP address automatically, as shown in the figure below:
Figure B-4: IP Address tab
b. Do not type anything into the New gateway field on the Gateway tab.
- 31 -
