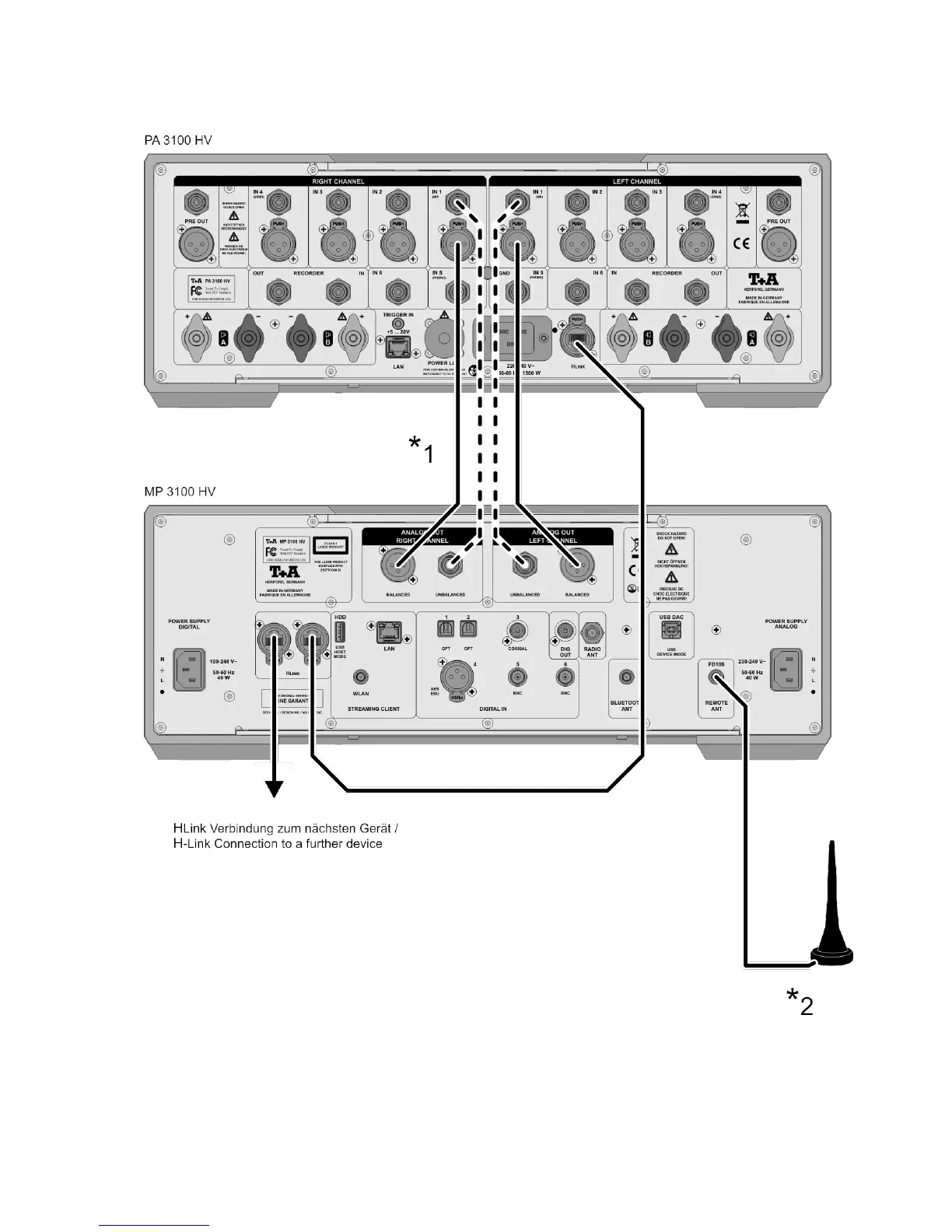

T+A MP 3100 HV - Wiring Diagram; Appendix A

67
Appendix A
Wiring diagram
*1 If both types of connection are present on the amplifier , we recommend the
symmetrical option
*2 Antenna for the RF remote control FD100.
Connecting this antenna is absolutely necessary for operation of the
MP 3100 HV by the FD100 remote control.
