TPS pH Cube User Manual

Page 3
1. Introduction

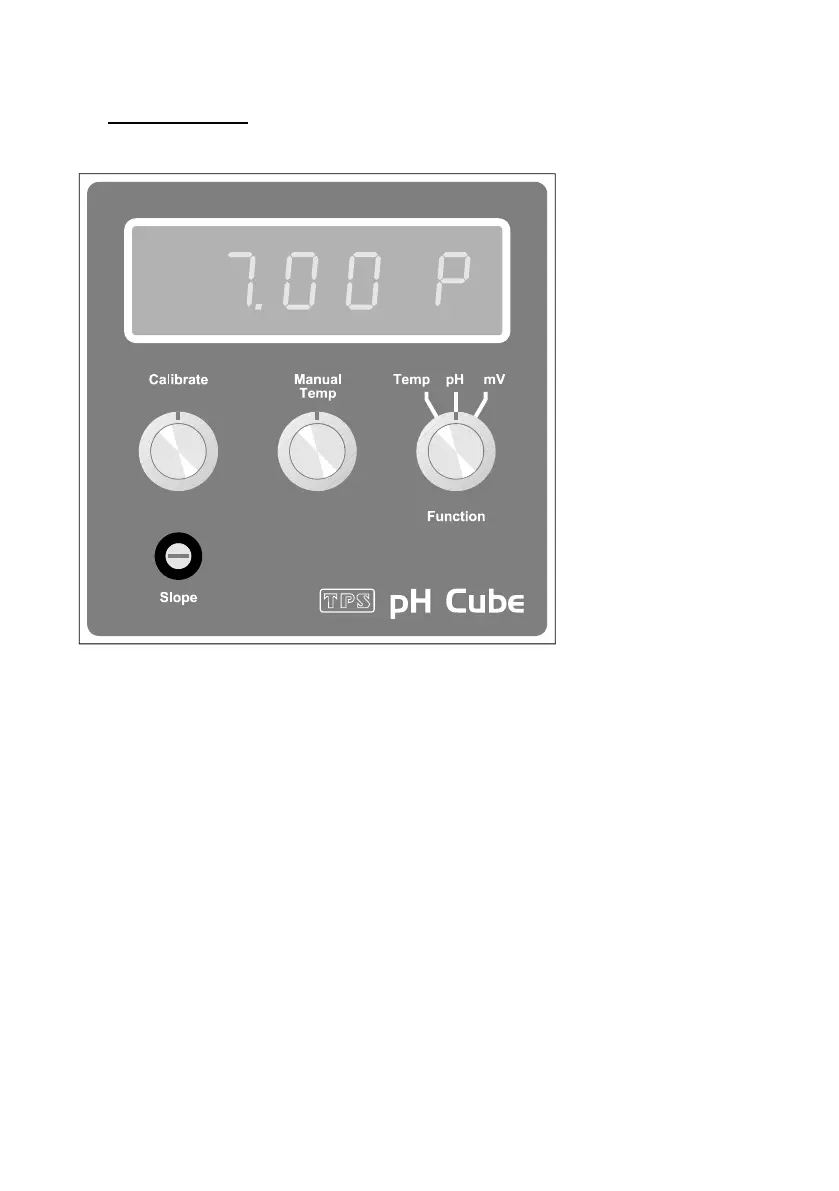

1.1 pH Cube Front Panel and Controls
Display
 12.7mm LED display with mode enunciator.
Function Switch
 Switches between pH, ORP/mV and Temperature modes. See section 2.
Calibrate Control
 Used for pH asymmetry calibration in pH7.00 or pH6.86 buffer. See section
3.
Slope Control
 Used for pH slope calibration in a buffer that is at least 2 to 3 pH away from
pH7.00, eg. pH4.01, pH9.18 or pH10.01. See section 3.
Manual Temp Control
 Used to manually set the temperature of the solution for pH temperature
compensation. Only active when temperature sensor is unplugged. See
section 5.3.

TPS pH Cube Specifications

General

Brand	TPS
Model	pH Cube
Category	Measuring Instruments
Language	English
