TPS pH Cube User Manual

Page 4

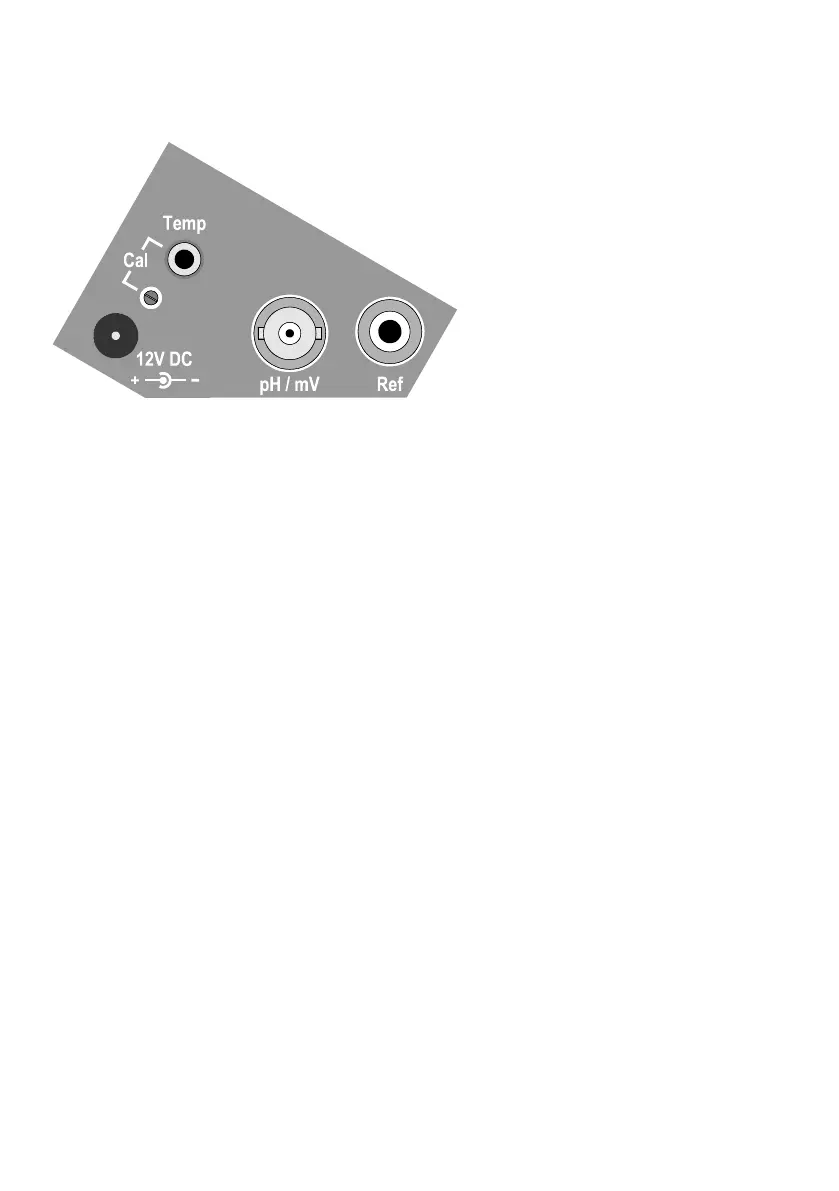

1.2 pH Cube Side Panel and Connectors
pH / mV Connector
 Used to connect pH, ORP (Redox) and Specific Ion sensors.
Ref Connector
 Used to connect Reference sensor when a mono pH, ORP (Redox) or
Specific Ion sensor is connected to the pH / mV Connector.
Temp Connector
 Used to connect Temperature sensor. This sensor provides temperature
readout as well as Automatic Temperature Compensation for pH readings.
Temp Cal Control
 Used for temperature calibration. See section 5.
12V DC Power Connector
 Used to connect 12V AC/DC Adaptor. The pH Cube can run off any 12V
DC source with at least 200mA output. The 12V DC connector has a
positive tip.

TPS pH Cube Specifications

General

Brand	TPS
Model	pH Cube
Category	Measuring Instruments
Language	English
