SW Series Inverter/Charger
Part No. 2031-5
Rev. B: Sept 1, 1999
Page
109
Each individual 6-volt battery capacity = 100 amp hours
NOTE: If “cross-tying” is not required, the “dash” (- - -) connections are not needed.

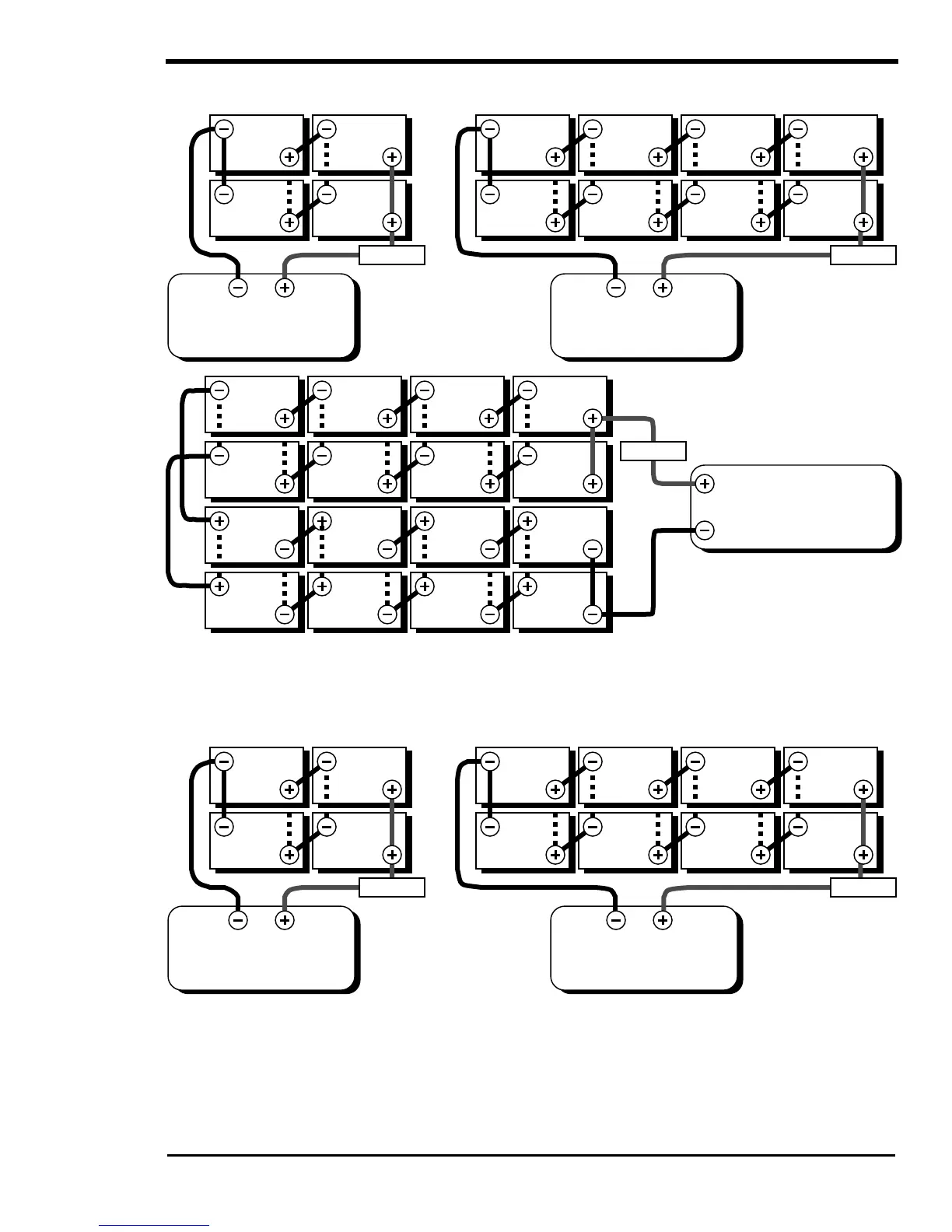

Figure 34, Series-Parallel Configuration: 6-Volt Battery Wiring
Each individual 12-volt battery capacity = 50 amp hours
NOTE: If “cross-tying” is not required, the “dash” (- - -) connections are not needed.
Figure 35, Series-Parallel Configuration: 12-Volt Battery Wiring
12V INVERTER
(Total Battery Capacity
= 200 Amp Hours)
6V 6V
6V 6V
FUSED
DISCONNECT
6V 6V
24V INVERTER
(Total Battery Capacity
= 200 Amp Hours)
6V 6V
FUSED
DISCONNECT
6V 6V 6V 6V
6V 6V
48V INVERTER
(Total Battery Capacity
= 200 Amp Hours)
6V 6V
6V 6V 6V 6V
6V 6V 6V
6V 6V 6V 6V
FUSED
DISCONNECT
24V INVERTER
(Total Battery Capacity
= 100 Amp Hours)
12V 12V
12V 12V
FUSED
DISCONNECT
12V 12V
48V INVERTER
(Total Battery Capacity
= 100 Amp Hours)
12V 12V
FUSED
DISCONNECT
12V 12V 12V 12V
