CONTROLS, INDICATORS AND COMPONENTS
Page
14
Copyright Trace Engineering Company, Inc.
5916 - 195th Street N. E.
Arlington, WA 98223
Telephone: 360/435-8826
Fax: 360/435-2229
www.traceengineering.com
SW Series Inverter/Charger
Part No. 2031-5
Rev. B: Sept 1, 1999
AC SAFETY GROUND
The AC Safety Ground is used to connect the inverter chassis to the AC Grounding System.
AUXILIARY AND GENERATOR CONTROL RELAY CONNECTORS

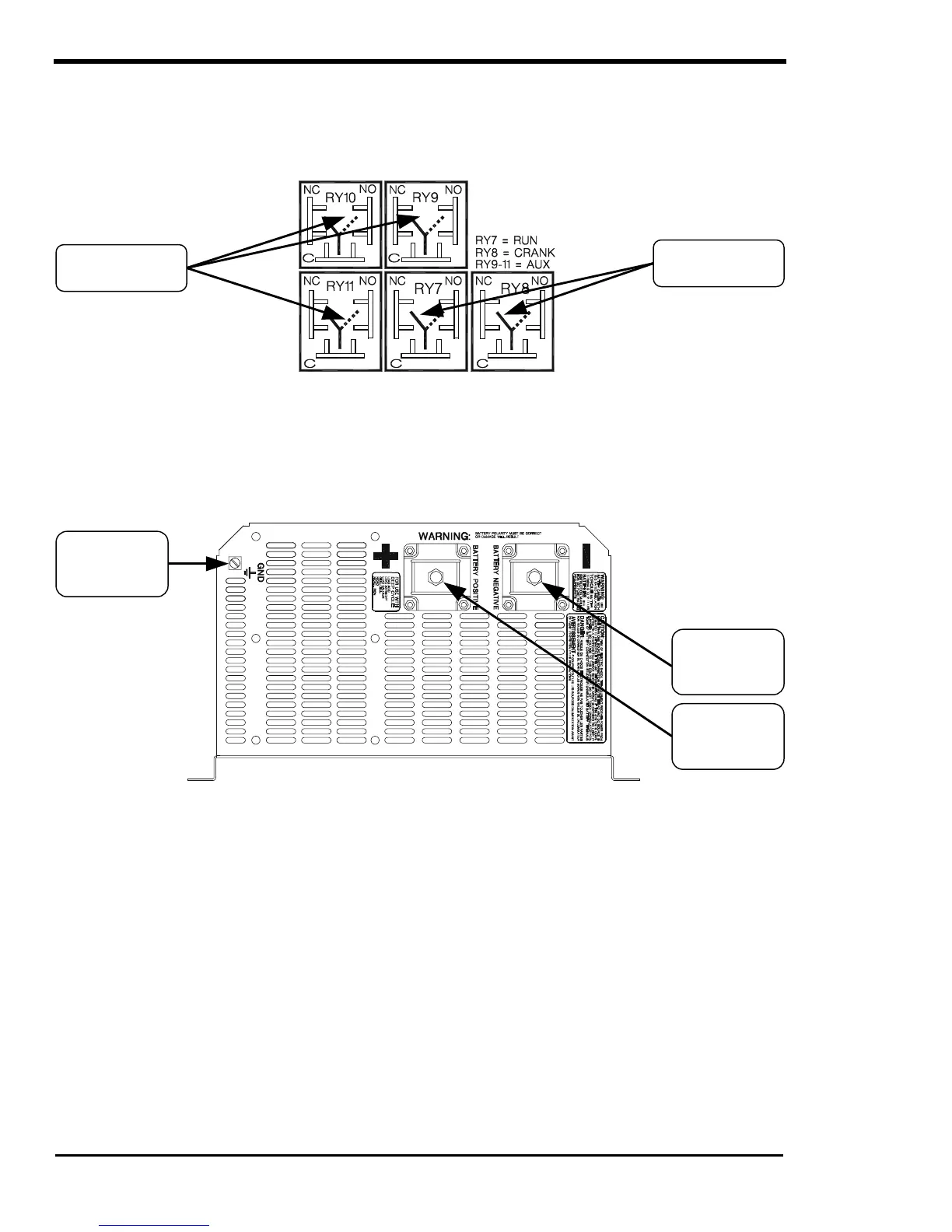

Figure 6, Auxiliary and Generator Control Relay Connectors
DC SIDE
Figure 5 shows the components located on the DC side of the inverter. Refer to the INSTALLATION
section for the battery wiring connections to the Battery Terminals and the DC Ground.
Figure 7, DC Side
BATTERY TERMINALS
WARNING. Before connecting the battery cables to the inverter, verify the correct battery voltage and
cable polarity using a voltmeter. The inverter is not reverse polarity protected. If the positive terminal
of the battery is connected to the negative terminal of the inverter and vice versa, severe damage
will result. If necessary, color-code the cables with colored tape or heat shrink tubing: RED for positive
(+); BLACK for negative (-) to avoid polarity problems.
DC (EQUIPMENT) GROUND
This connection is used to connect the exposed chassis of the inverter to the DC grounding system. The
terminal accepts wires from #14 AWG to #2 AWG.
Auxiliary Control
Relay Connectors
Generator Control
Relay Connectors
Battery
Terminal
(-)
Battery
Terminal
(+)
DC
(Equipment)
Ground
