Trace Engineering SW II - REV 4.01 - Dimensions; Figure 37, SW Series Dimensions: with AC Access Covers - Showing Knockout Sizes

TECHNICAL INFORMATION
Page
120
Copyright  Trace Engineering Company, Inc.
5916 - 195th Street N. E.
Arlington, WA 98223
Telephone: 360/435-8826
Fax: 360/435-2229
www.traceengineering.com
SW Series Inverter/Charger
Part No. 2031-5
Rev. B: Sept 1, 1999
DIMENSIONS

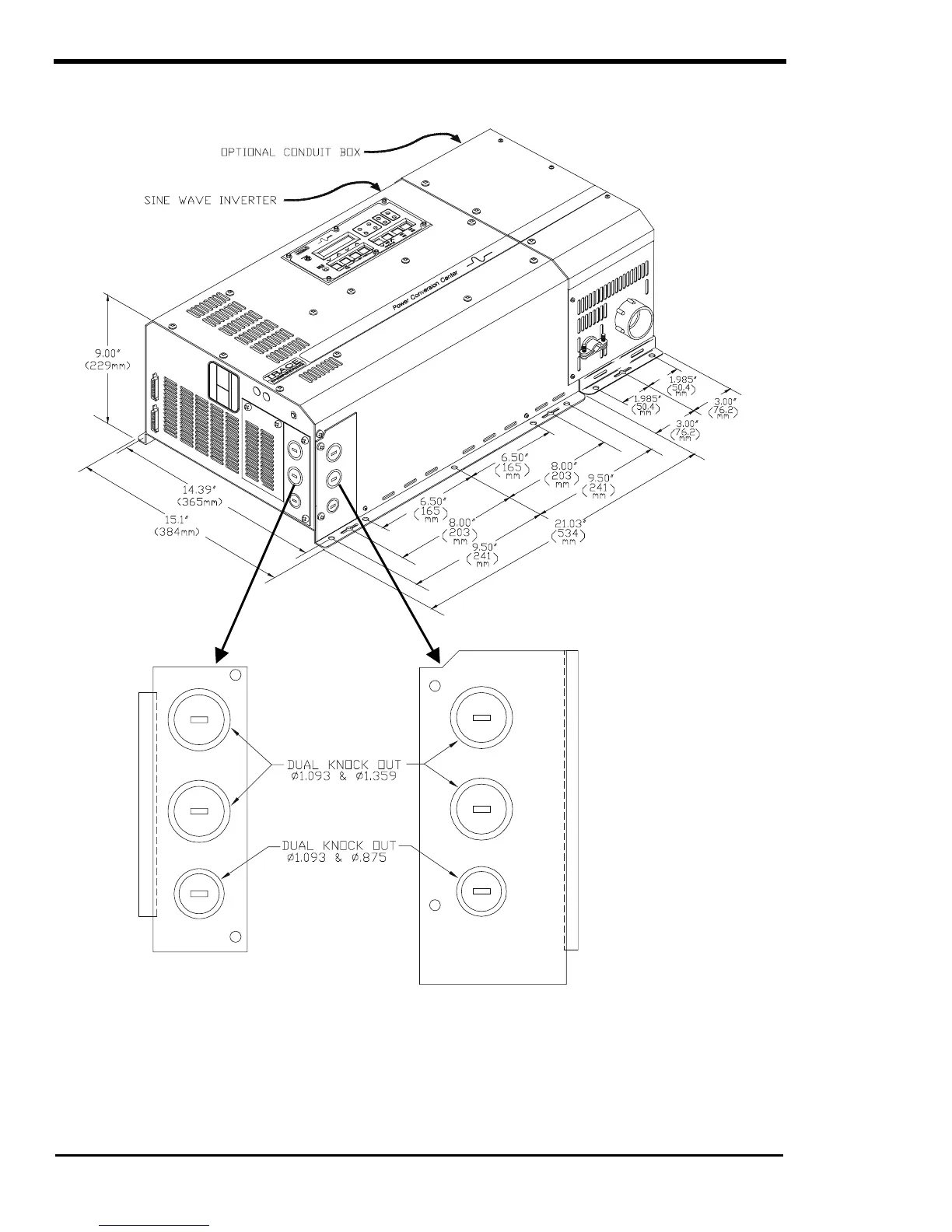

Figure 37, SW Series Dimensions: With AC Access Covers – Showing Knockout Sizes
