Technical Specifications
OPERATING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
ITEM DESCRIPTION
Motor No-Load Speed:4600RPM
Power Supply 120V/60Hz/Single Phase/15 Amps
Arbor Diameter 0.625” (5/8")
Blade Diameter 10”
Cutting Capacity Cross cut 90°: 11.81” x 2.95” (300mm x 75mm)
Bevel cut 45° x 90°: 8.26” x 2.95” (210mm x 75mm)
Compound cut 45° x 45°: 8.26” x 1.57” (210mm x 40mm)
Mitre cut 45°: 11.81” x 1.57” (300 x 40mm)
Accessories 10” x 40T Carbide Tipped Blade
Material Hold Down Clamp
Material Support Brackets
Stop Plate For Repeated Cuts Of Same Dimension
Lug Style Arbor Wrench
Dust Bag
Spare Carbon Brushes

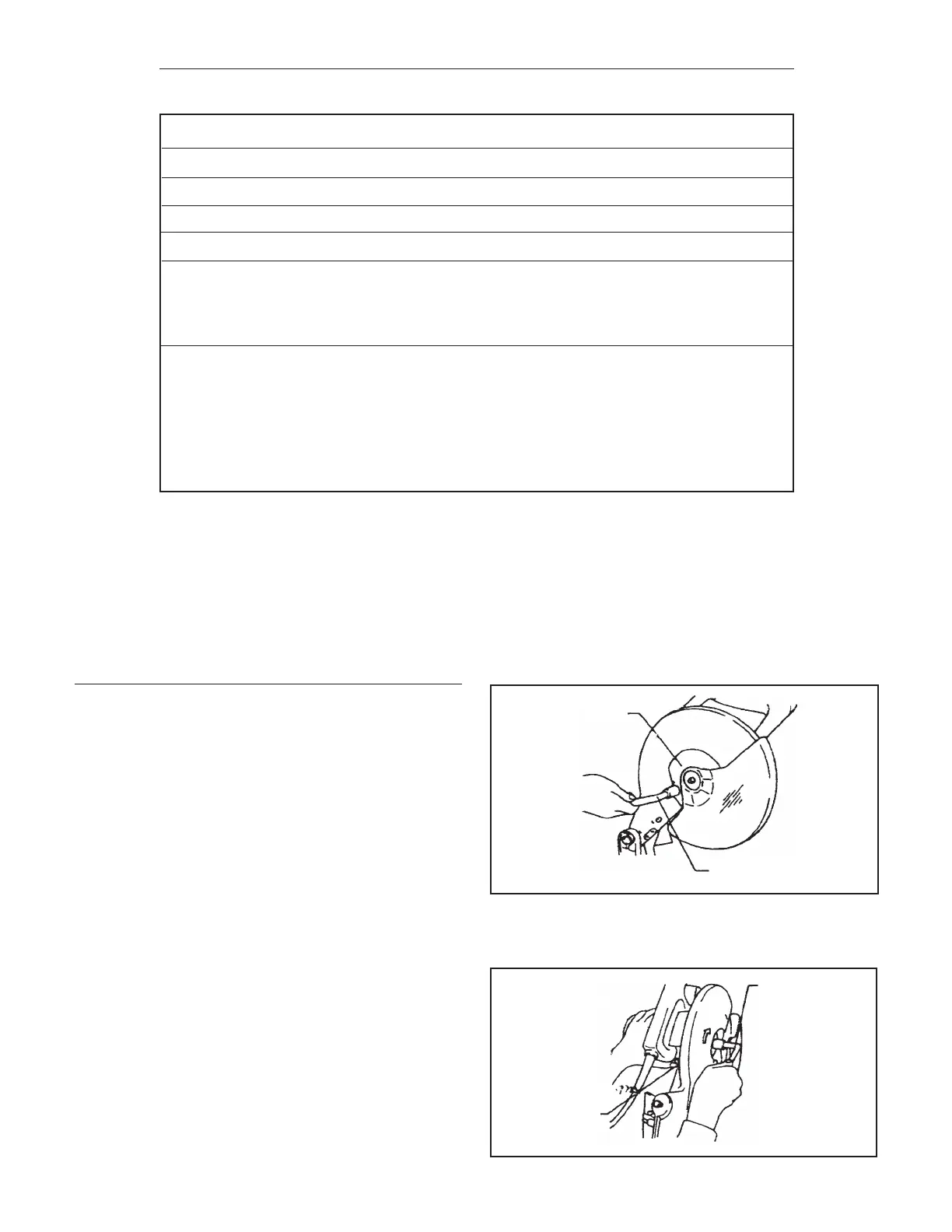

Changing the Saw Blade
To remove the saw blade loosen the bolt that fixes the
central cover by turning it counter clockwise using the
socket wrench provided. Then, raise the central cover
and move it down from the original position.
Central Cover
Socket Wrench
Shaft Locking
Arm
Socket Wrench
When removing the saw blade, first raise the lowest
position handle and press down the shaft locking arm to
lock the saw blade. Then loosen the hex bolt by turning
it clockwise using the socket wrench and remove the hex
bolt, the outer flange and the saw blade.
