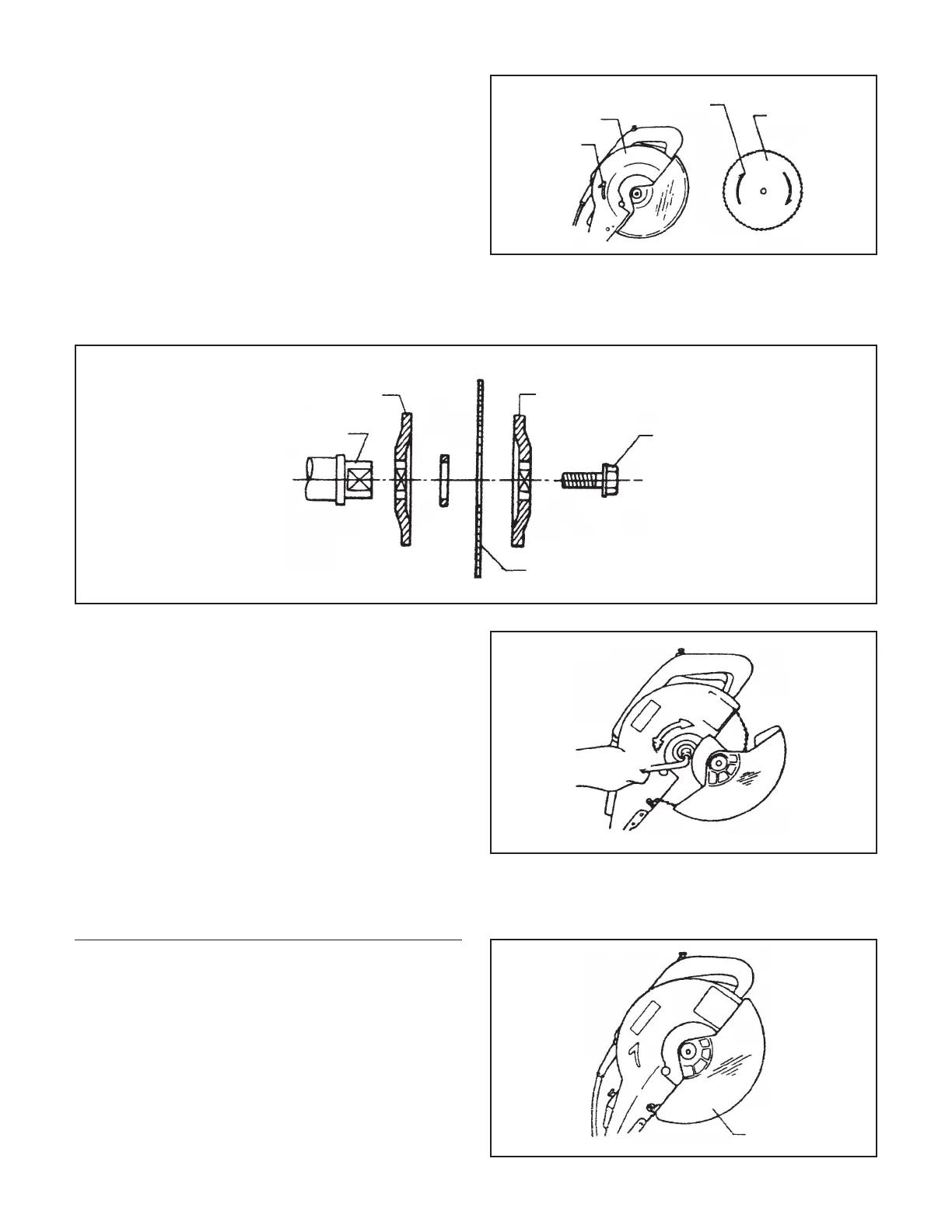

Install the outer flange and the hex bolt. Then, press
down on the shaft locking arm, and tighten the hex bolt
firmly by turning it counter clockwise using the socket
wrench. Adjust the hex bolt in a clockwise direction to fix
the central cover.
Blade Guard
When sawing, the blade guard will be lifted up by the
work piece. After you finish cutting, the blade guard will
automatically reset to its original position with the handle
raised. Never abandon or remove the blade guard.
Inner Flange
Install Shaft
Outer Flange
Hex Bolt
Saw Blade
Loosen
Tighten
Blade Guard
Protective
Cover
Arrow
Arrow
Saw Blade
When installing the new saw blade check that the teeth
point in the direction of the arrow (See the protective
cover).
