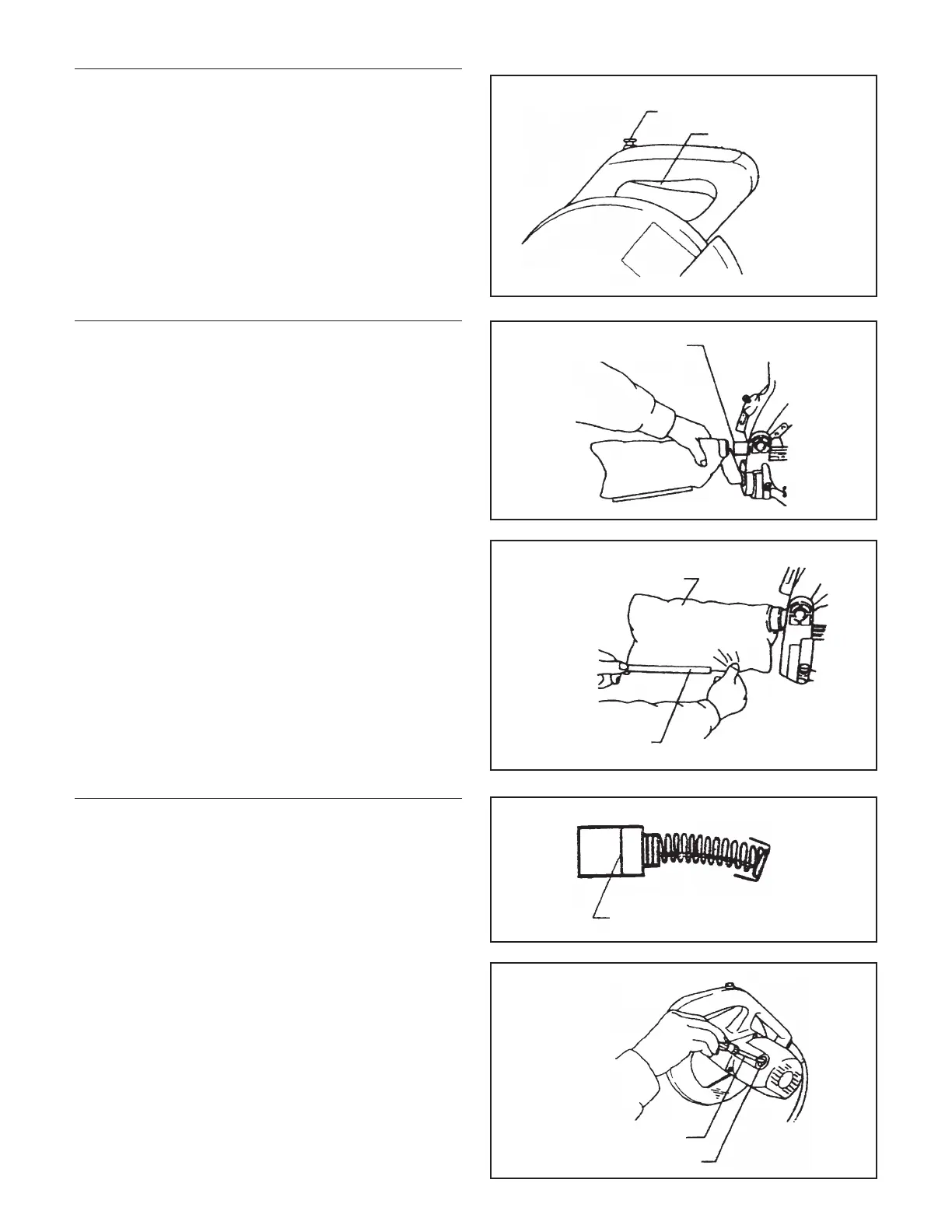

Sawdust Collector
You can operate this machine more conveniently with the
sawdust collector. Connect the adapter of the collector
to the nozzle of the protective cover, then, fix the collector
inlet to the adapter of the collector. When the sawdust
collector is half full, take the collector off of the protective
cover and open the collector door at the bottom. Clean
the sawdust out of the collector completely.
Operating the Switch
To prevent accidental starting, the tool is equipped with a
protective switch. To start the tool, you should first press
the protective switch and then press down the trigger
switch. The tool shuts off when you release the trigger
switch.
Sawdust Nozzle
Sawdust Collector
Collector Door
Protective Button
Trigger Switch
Replacing the Carbon Brushes
Check and remove the carbon brushes regularly. Replace
them when they wear down to the limit mark. Keep the
carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time.
Use a screwdriver to remove the brush holder caps. Take
out the worn carbon brushes and insert the new ones
and secure the brush holder caps.
Limit Mark
Screwdriver
Brush Holder Cap
