INSTALLING LEG BRACES TO LEGS:
Insert leg brace (69) in between legs and align with threaded inserts. The insert Bolts (24) into
holes and tighten. Repeat process on other legs.
INSTALLING DOOR HANDLE TO DOOR:
Insert handle (13) onto the two slots located in the Door (9).
Install Washer (16) and Bolt (17) onto the Handle (13) bolt from inside the Door (9) and tighten.

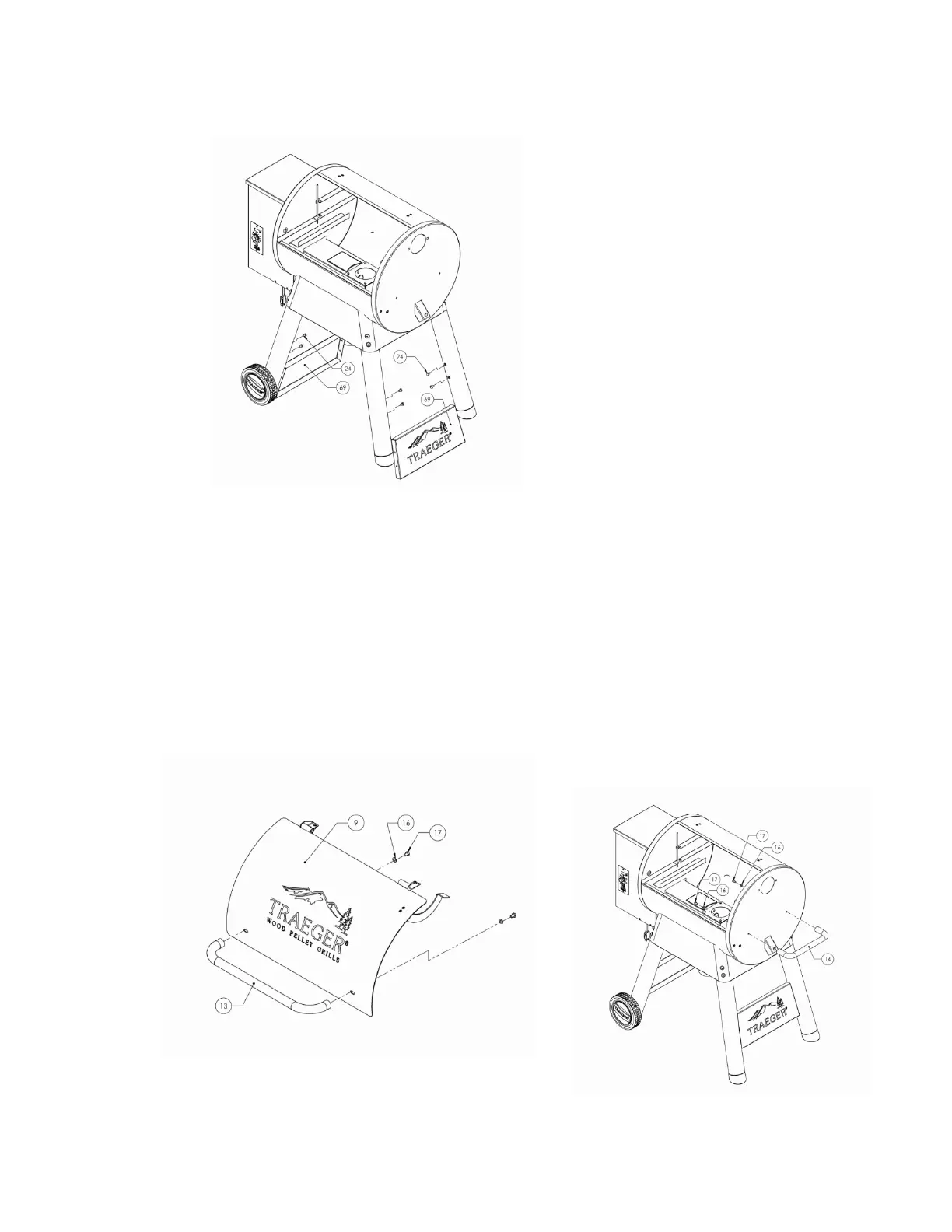

Repeat the process on the other side. (See Figure 1)
CAUTION: Do not over tighten the Bolts.
INSTALLING SIDE HANDLE TO GRILL FRAME:
Insert handle (14) onto the two holes located on the right side of the Grill Frame.
Install Washer (16) and Bolt (17) onto the Handle (14) bolt from inside the Grill Frame and
tighten. Repeat the process on the other side. (See Figure 2)
CAUTION: Do not over tighten the Bolts.
Figure 1 Figure 2
To Next Page
