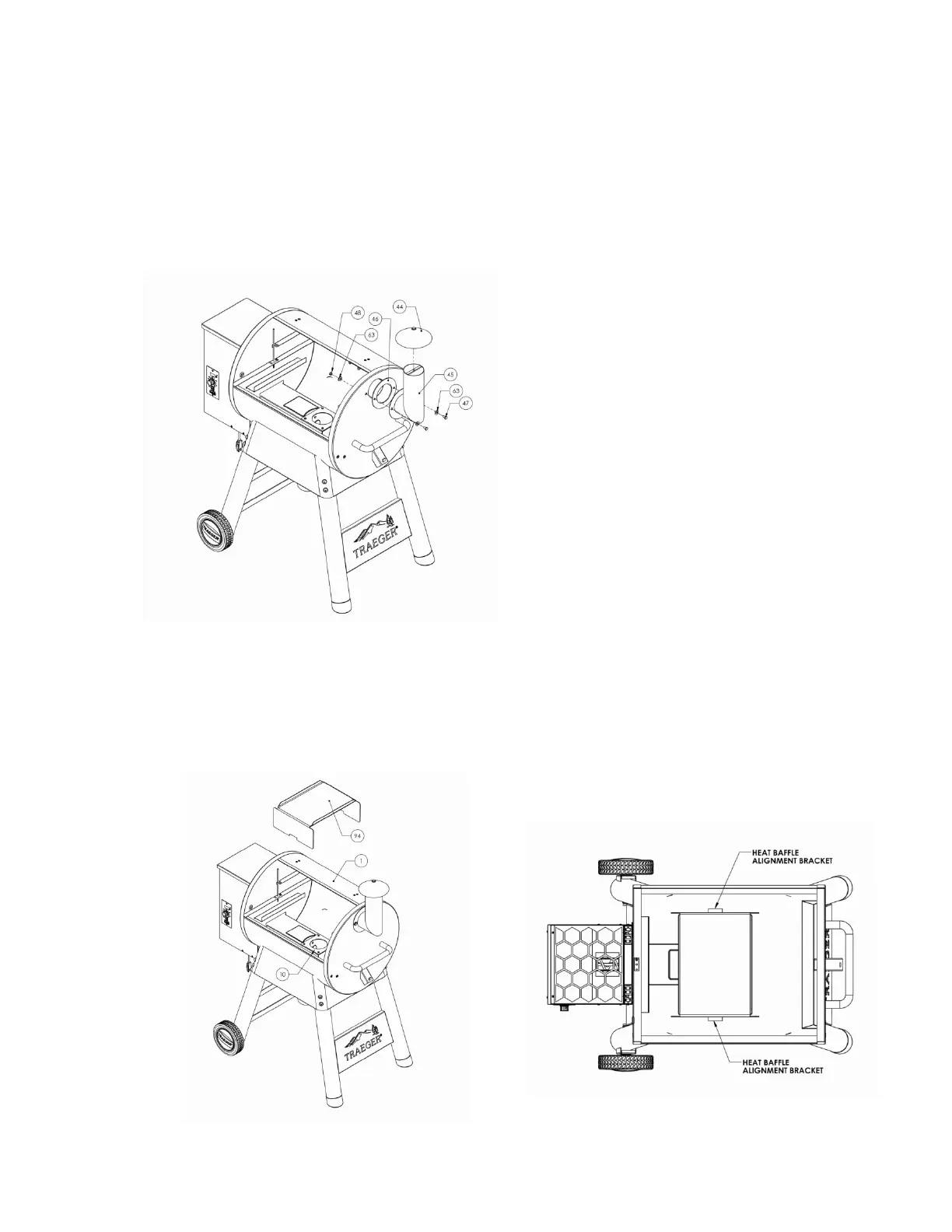

ATTACHING THE FLUE PIPE AND CHIMNEY CAP ASSEMBLY:
1) Align the holes in the Flue Pipe (45) with the holes in the Flue Pipe Gasket (46), which
fits between the right end of the Grill and the Flue Pipe (45). From the Hardware Kit,
place Zinc Flat Washers (63) on two of the 1/2” long Hex Head Bolts (47) and insert the
Bolts through the holes in the Flue Pipe (45) and the Flue Pipe Gasket (46).Align the
Bolts with the corresponding holes in the Grill. Place a Zinc Flat Washer (63) on each
Bolt inside the Grill and secure with Zinc Hex Nuts (48) using the Wrench supplied.
2) Screw the Chimney Cap Assembly (44) into the Bracket in the top of the Flue Pipe.
Hand tighten the cap to the desired height.
INSTALLING THE HEAT BAFFLE
Insert the Heat Baffle (94) onto the inside of the Grill Frame Assembly (1) and place onto the
alignment brackets in the burner box and centered side to side over the firepot (10).
