SECTION ONE: ASSEMBLY INSTRUCTIONS
MOUNTING THE LEGS:
1) Carefully lay the Grill on its back on a non-abrasive surface.

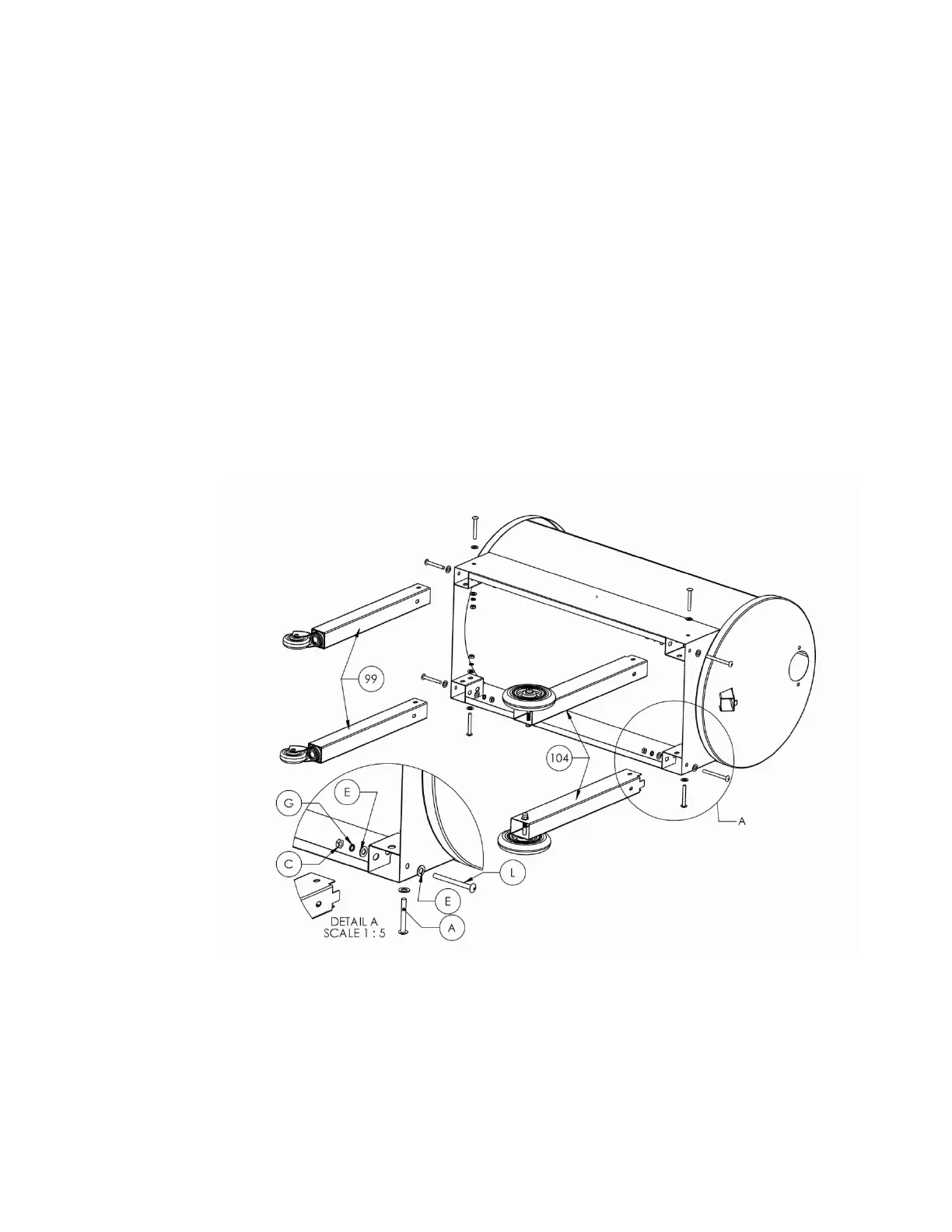

2) Use the Black Bolts (A, L), Washers (E, G) and Nuts (C) supplied in the
hardware kit to install the Caster Leg Assemblies (99) on the left end of the Grill
and the Wheel Leg Assemblies (104) on the right end of the Grill, as shown in the
upper diagram below. The Nuts (C) on the Wheel Leg Assemblies (104) should
go toward the center of the Grill. You may need to rotate the Grill toward the back
to accommodate the Leg Assemblies (99 & 104) on the rear of the Grill. Leave
the Nuts loose during this step.
3) Set the Grill upright to level and then tighten all Nuts.
