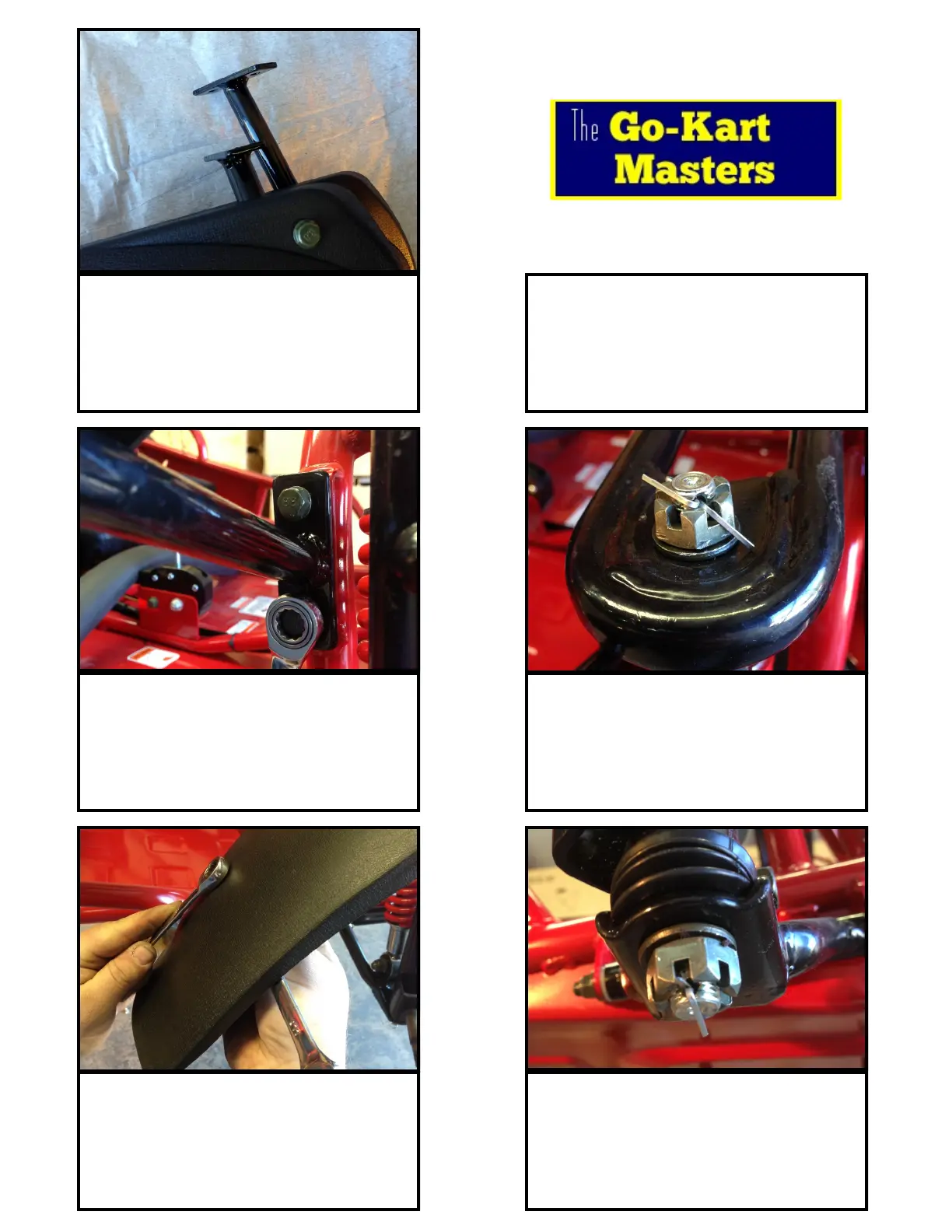

73
Locate passenger’s side front fender.
This fender has the longer mounting
arm.
74
Install the front fender with bolts and
lock washers. Tighten securely with a
10mm wrench.
75
Tighten the 3 fender bolts and nuts
that are already installed with two
(2) 10mm wrenches.
76
Repeat Steps 73-75 on driver’s side
fender.
77
Locate passenger’s side top spindle
nut and remove cotter pin.
NOTE: Save cotter pin.
78
Locate passenger’s side bottom spin-
dle nut and remove cotter pin.
NOTE: Save cotter pin.
