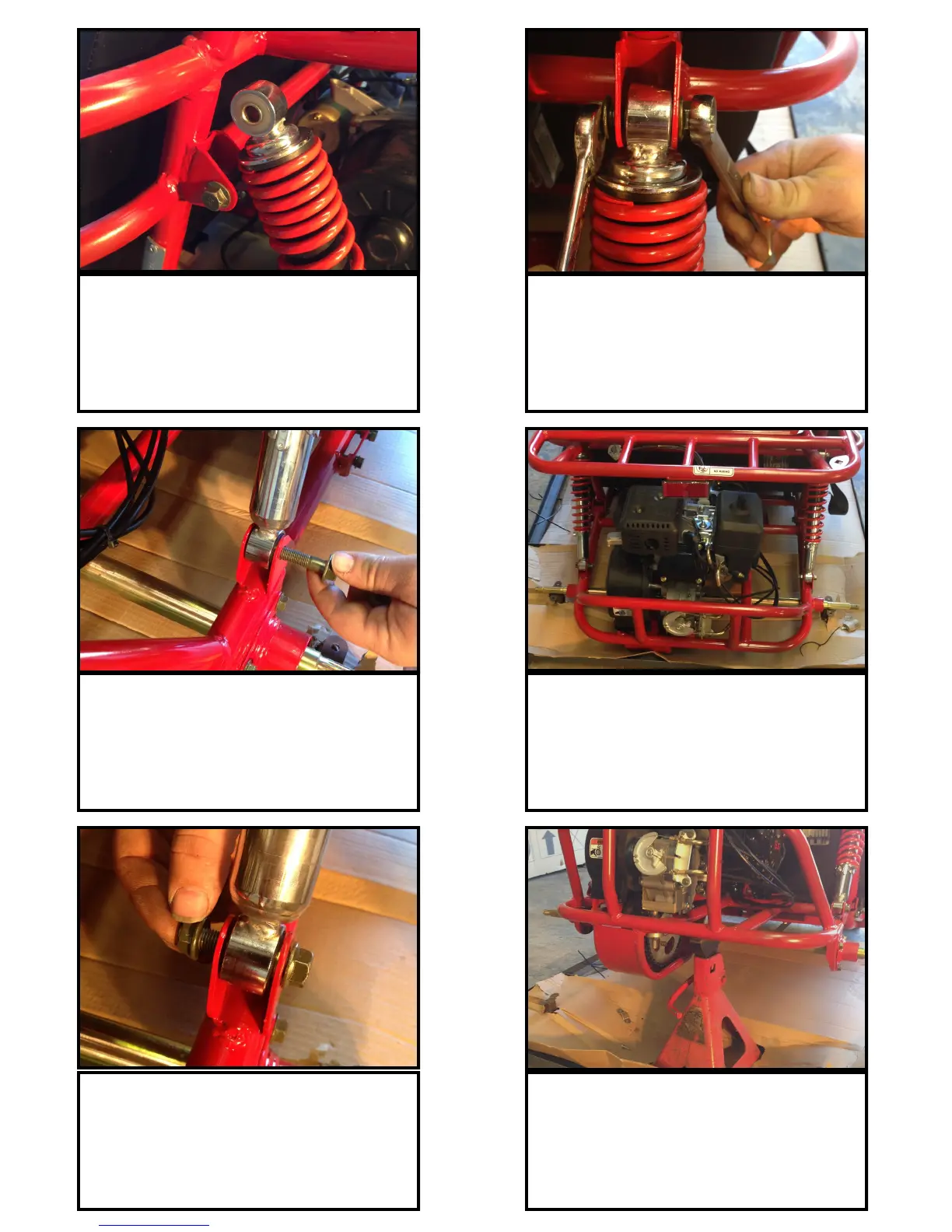

TrailMaster MINI XRX - Rear Shock Installation

49
Place the top shock eye into the
bracket with the spring up. Reinstall
bolt and washer that was removed in Step 46.
50
Lift up on the rear rack and align bot-
tom shock eyelet with the bracket on
the rear swing arm.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
52
Tighten top and bottom shock bolts
with wrenches.
53
Repeat Steps 48-52 for the driver’s
side rear shock.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
51
Install bottom shock bolt and nut.
GOKARTMASTERS.COM
54
At this time, lift the rear of the go-kart
with the help of an assistant. Place the
kart on a jackstand. Be safe. Use caution.
