TrailMaster MINI XRX - Connecting Fuel Hose and Valve; Suspension and Drivetrain Installation

43

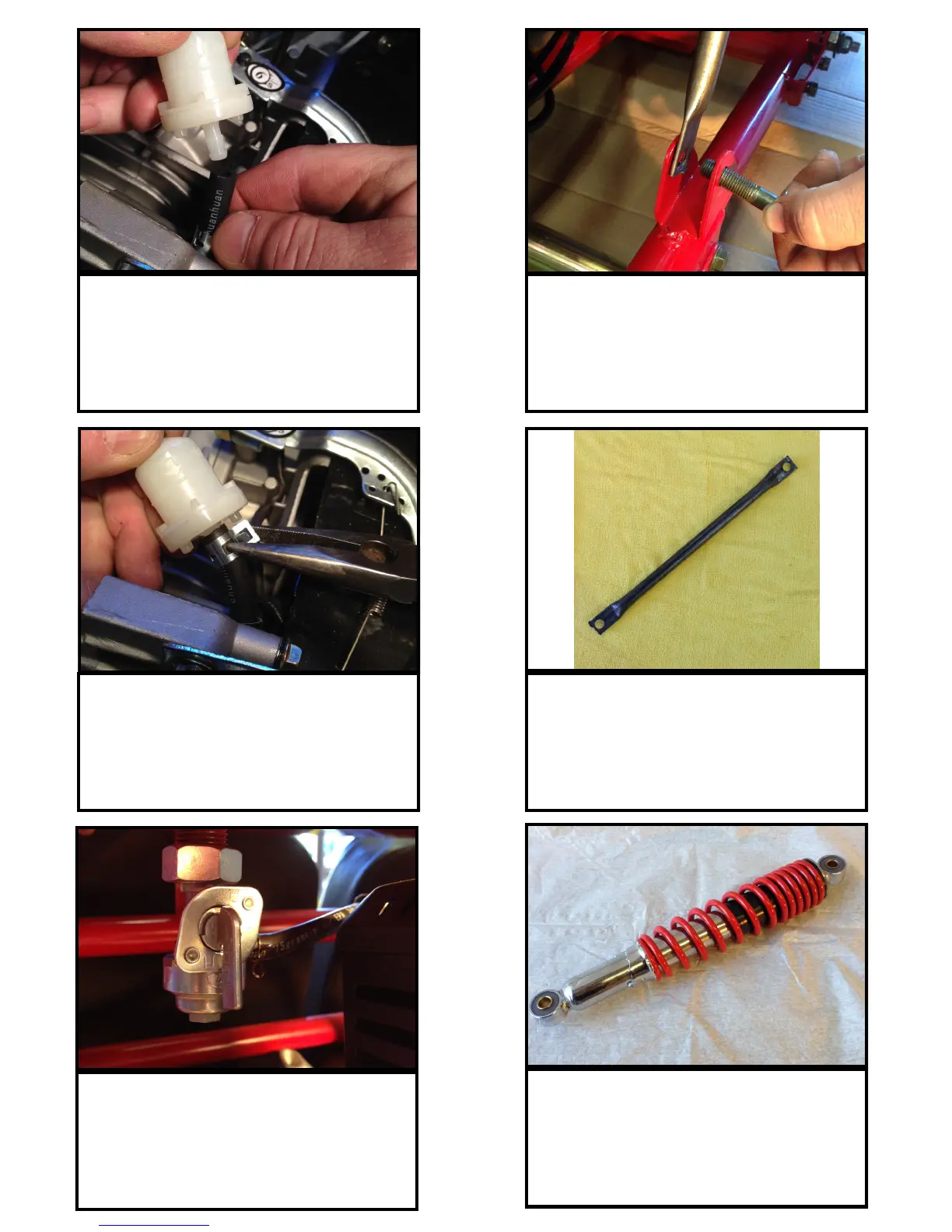

Place the fuel hose clamp onto the
hose and push the hose onto the fuel
filter that’s already attached to the fuel tank.
44
Using pliers, place the fuel hose
clamp on the filter approximately
1/4” from the end of the hose.
.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
45
Turn fuel valve to ‘ON’ position.
GOKARTMASTERS.COM
46
Now, it’s time to install the rear
shocks. Remove the metal shipping
bar from the passenger’s side shock mounts.
NOTE: SAVE THE BOLTS & NUTS.
47
Discard this bar.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
48
Locate one (1) shock.
GOKARTMASTERS.COM
