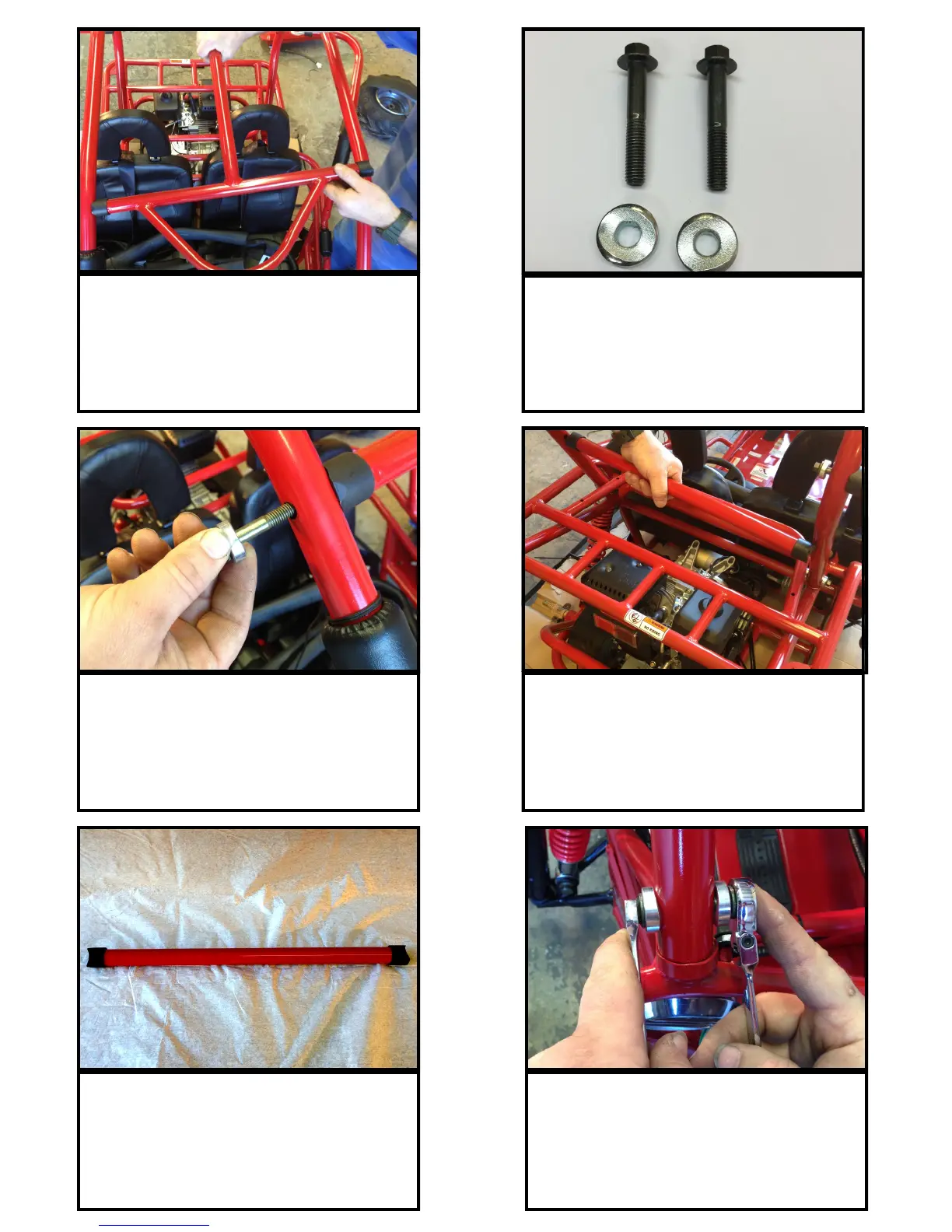

TrailMaster MINI XRX - Rear Bar Installation and Final Tightening

31
Install the top bar assembly.
32
Start each of the 4 bolts with cupped
washer into the threads of the top bar.
NOTE: DO NOT TIGHTEN HARDWARE .
GOKARTMASTERS.COM
GOKARTMASTERS.COM
34
Locate 2 long bolts and 2 chrome
cupped washers.
35
Install the short bar behind the seats.
Start the bolts with washers into the
threads.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
33
Locate the short rear bar.
GOKARTMASTERS.COM
36
Tighten ALL of the bar bolts previ-
ously installed with a 10mm & 12mm
wrenches.
