TrailMax TD-40-T - Section 3. Parts; 3.1 Structural Components

page 36
TD-40-T
®
Section3. Parts
3.1 Structural Components

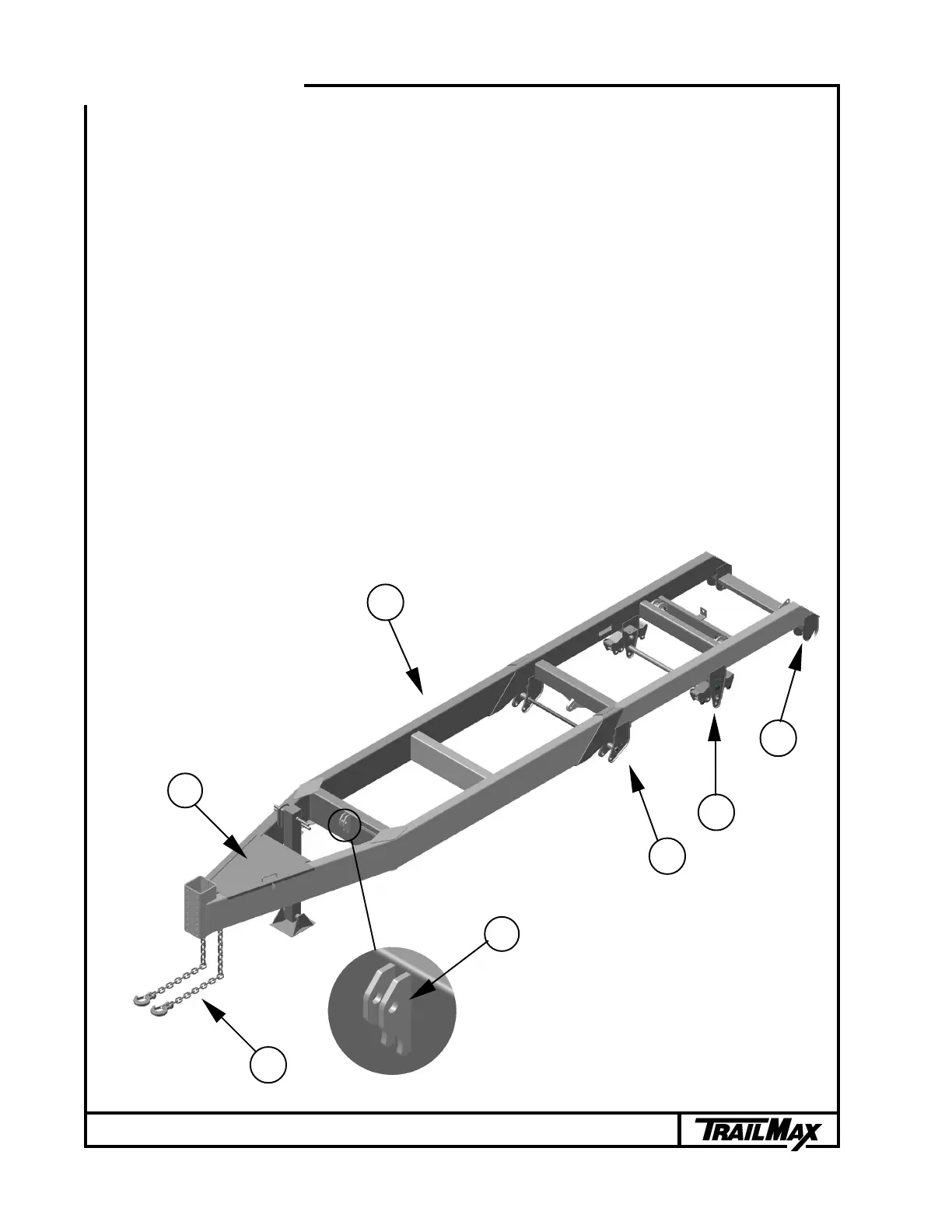

Sub-frame
Ref. Quantity Description......................................................................... Part No.
1. 1 Sub-frame Assembly ......................................................... SA-02107
2. 2 Safety Chain and Hook Assembly ........................................
3
/8" ASSY
3. 2 *Front Hanger ....................................................................... 7701-01
4. 2 *Rocker Hanger ................................................................. 16319-01
5. 2 *Rear Hanger ....................................................................... 7703-01
6. 2 *Lower Latch Side Plate ....................................................... C-04019
7. 1 Tool Box Lid Assembly ....................................................... SA-01144
*These items are included in Sub-frame Assembly SA-02107
2
Parts
5
4
3
6
1
7
