TrailMax TD-40-T - Brake Components, 17.5

page 50

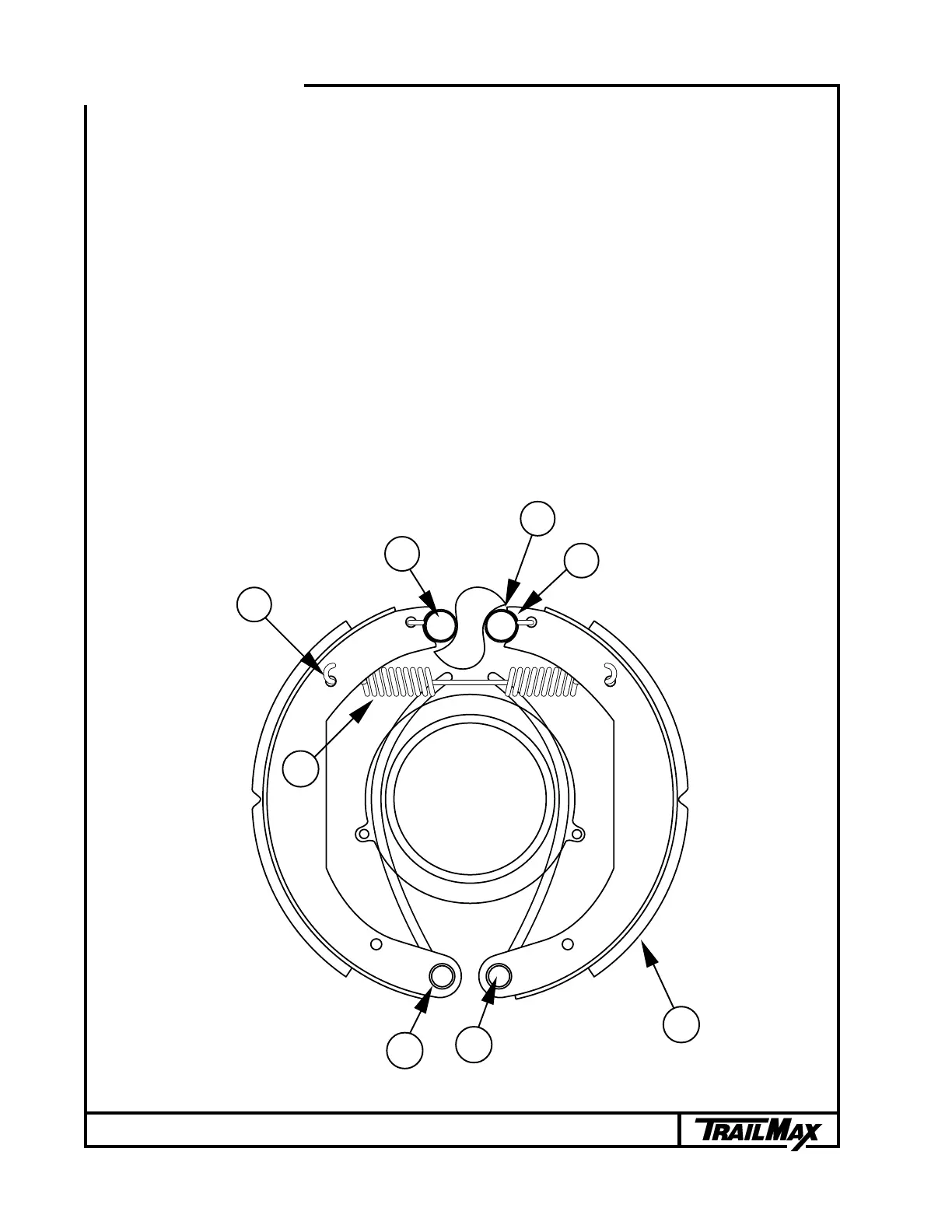

TD-40-T
®
Brake Components, 17.5
Ref. Quantity Description ......................................................................... Part No.
1. 2 Brake Shoe and Lining ...................................................... E-3491-88
Brake Repair Kit......................................................................................... Kit 8004
2. 2 Roller ..................................................................... 2297-C-5021
3. 2 Roller Pin ................................................................ 1246-F-1020
4. 2 Snap Ring ............................................................... 1229-T-3166
5. 2 Anchor Pin ................................................................ 1259-N-274
6. 2 Anchor Pin Bushing ................................................... 1225-B-496
7. 2 Return Spring Pin ........................................................1218-G-85
8. 1 Return Spring ............................................................ 2258-B-704
Note: Kit names are bold type while component names are regular type; kit components
are indexed under the kit name. Kit component quantities are per kit; other parts and kit quanti-
ties are per trailer.
Note: Quantities shown are per brake.
1
2
3
7
4
5
6
8
Parts
