TrailMax TD-40-T - Deck Assemblies

page 37
TD-40-T
®

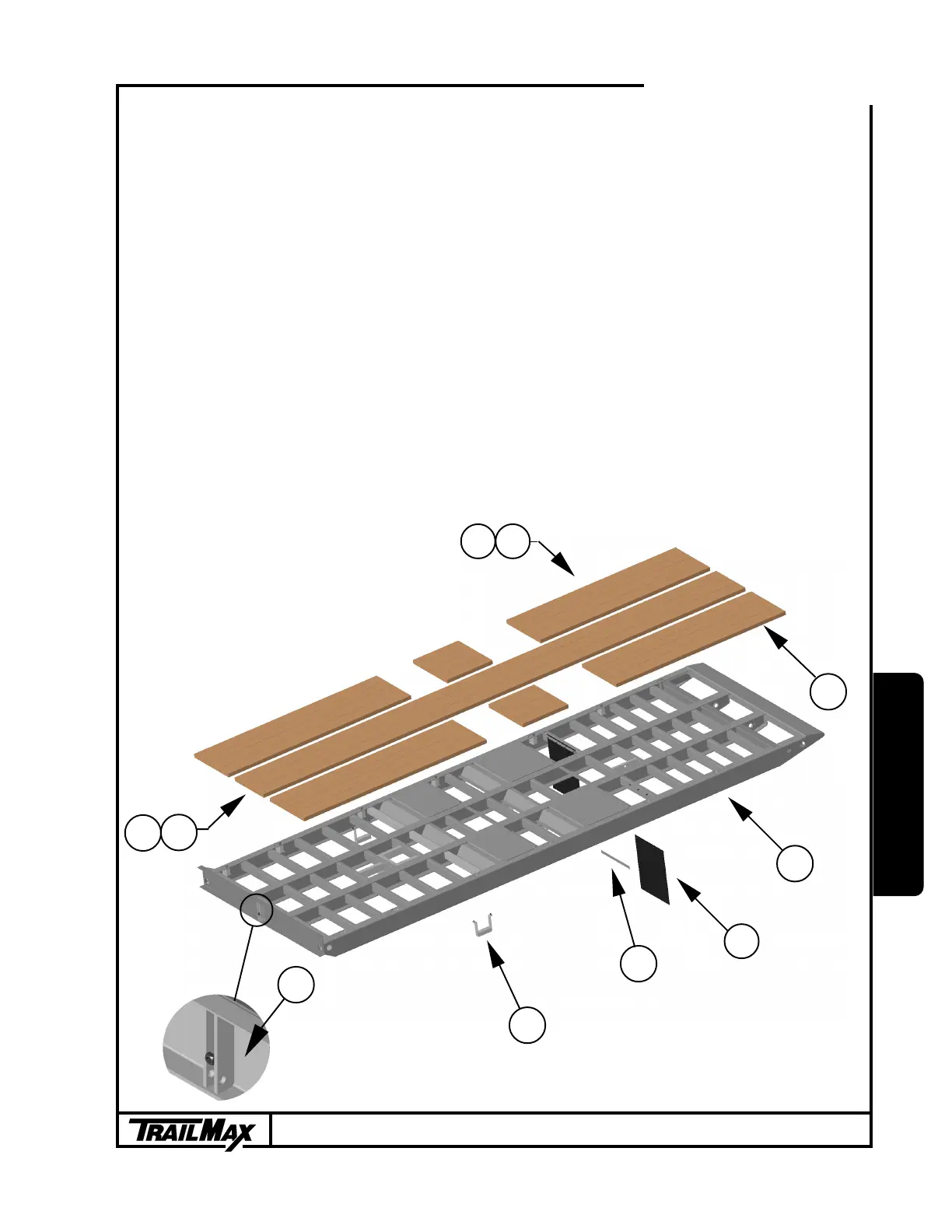

Deck Assemblies
Ref. Quantity Description......................................................................... Part No.
1. 1 Deck Assembly ................................................................. SA-12198
2. 2 Step Assembly .................................................................. SA-04069
3. 2 Deck Lumber .................................................................2-1/8 X 8 24'
4. 9 Deck Lumber ...............................................................2-1/8 X 10 10'
5. 1 Deck Lumber ...............................................................2-1/8 X 10 24'
6. 5 Deck Lumber ...............................................................2-1/8 X 12 10'
7. 2 TrailMax Mudflap ................................................................. B30PCB
8. 2 Mudflap Bracket ............................................................... MFW 2375
9. 256 Torx Deck Screws, 1/4-20 x 3 ................................................... 32523
10. 1 *Upper Latch Assembly ..................................................... SA-12551
*This item is included in Deck Assembly SA-12198
1
2
Parts
P
A
R
T
S
7
8
3
5
6
4
9
10
