TrailMax TD-40-T - Deck Hinge Assembly

page 44
TD-40-T
®
Parts
1
4
5
3
2
6

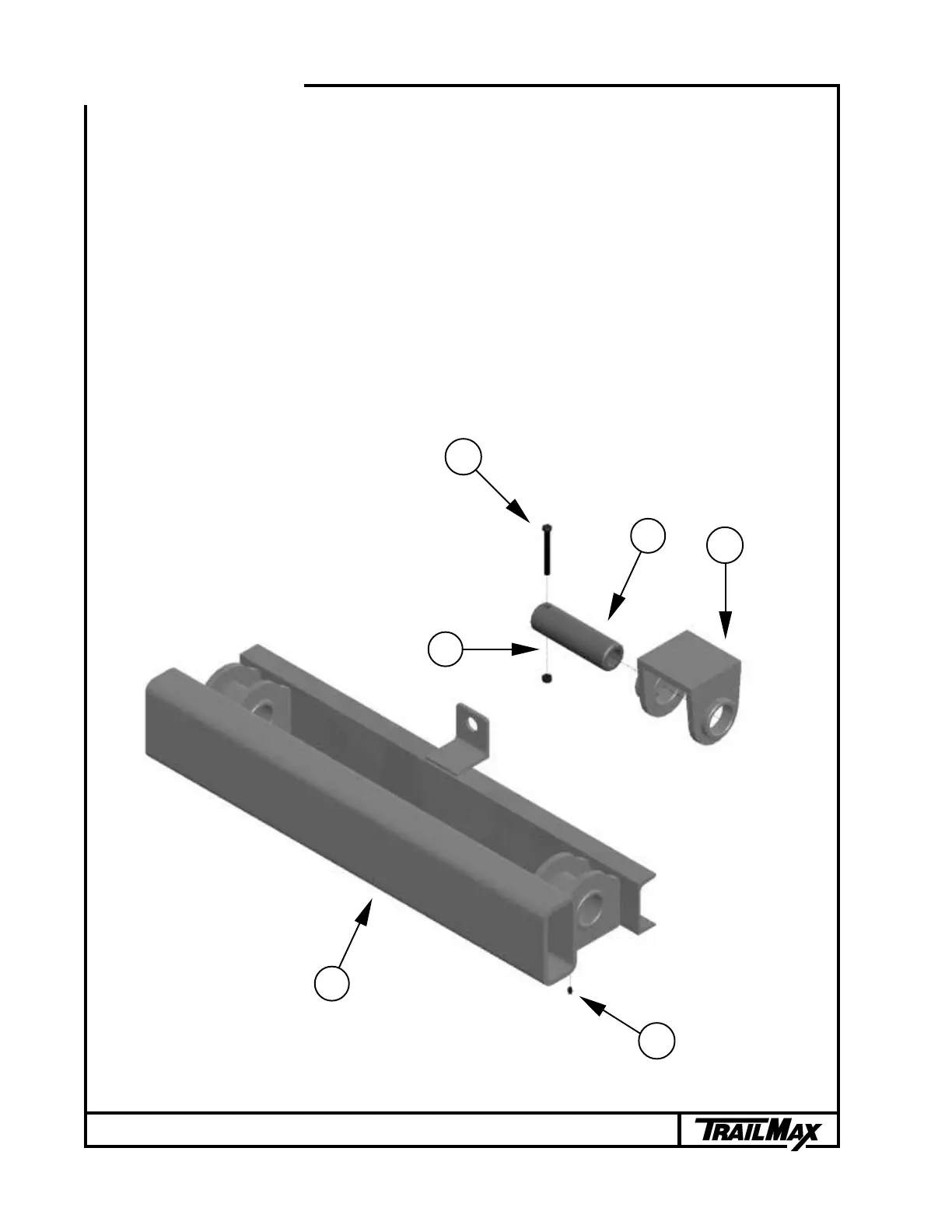

Deck Hinge Assembly
Ref. Quantity Description......................................................................... Part No.
1. 1 Deck Hinge Assembly ....................................................... SA-04027
2. 2 Hinge Bracket Assembly ................................................... SA-07099
3. 2 Hinge Pin .............................................................................C-06179
4. 2 3/8-24 Top Lock Nut Gr. C Zinc ................................................ 37304
5. 2 3/8-24 x 3 1/2 Cap Screw Gr. 8 Zinc ........................................ 18846
6. 2 Grease Fitting ......................................................................... 60105
