Trane Technologies 4TTV8036A1000B - Refrigeration Circuits: Heat Pump Models (Continued); 4 Ton HP (048 Models) Refrigeration Circuit; 4 Ton HP (049 Models) Refrigeration Circuit

36
4T-V8-SF-1M-EN

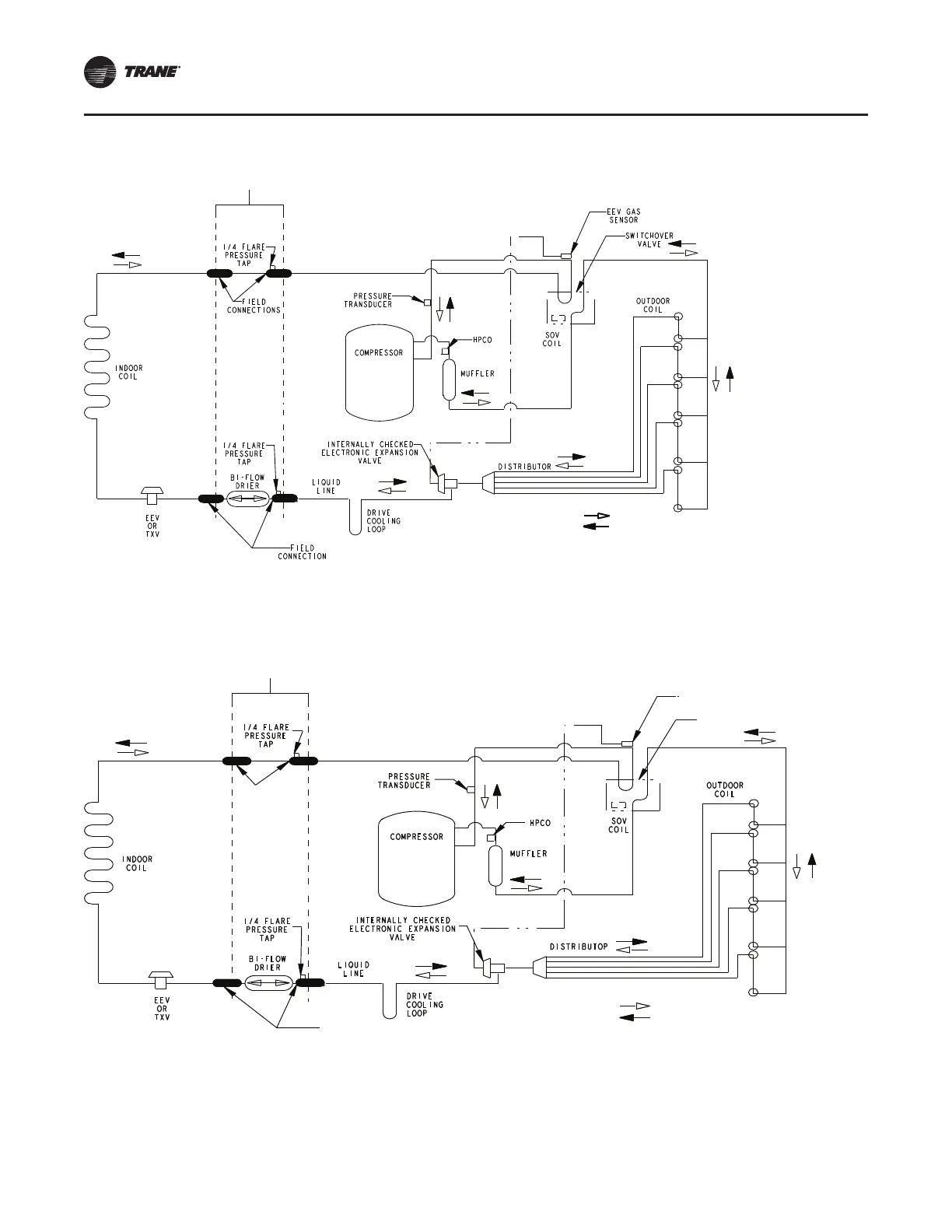

Figure 13. 4 Ton HP (048 Models)
INDICATES DIRECTION OF
REFRIGERATION FLOW
COOLING
HEATING
PRINTED FROM DRAWING D158072rev01
INDOOR
SECTION
OUTDOOR
SECTION
FIELD INSTALLED
INTER-CONNECTING
TUBING
Figure 14. 4 Ton HP (049 Models)
FIELD INSTALLED
INTER-CONNECTING
TUBING
INDOOR
SECTION
OUTDOOR
SECTION
EEV GAS
SENSOR
SWITCHOVER
VALVE
INDICATES DIRECTION OF
REFRIGERATION FLOW
COOLING
HEATING
FIELD
CONNECTION
PRINTED FROM DRAWING D158071rev01
Field
Connections
RReeffrriiggeerraattiioonnCCiirrccuuiittssffoorrHHeeaattiinnggaannddCCoooolliinngg
