Installation and Wiring

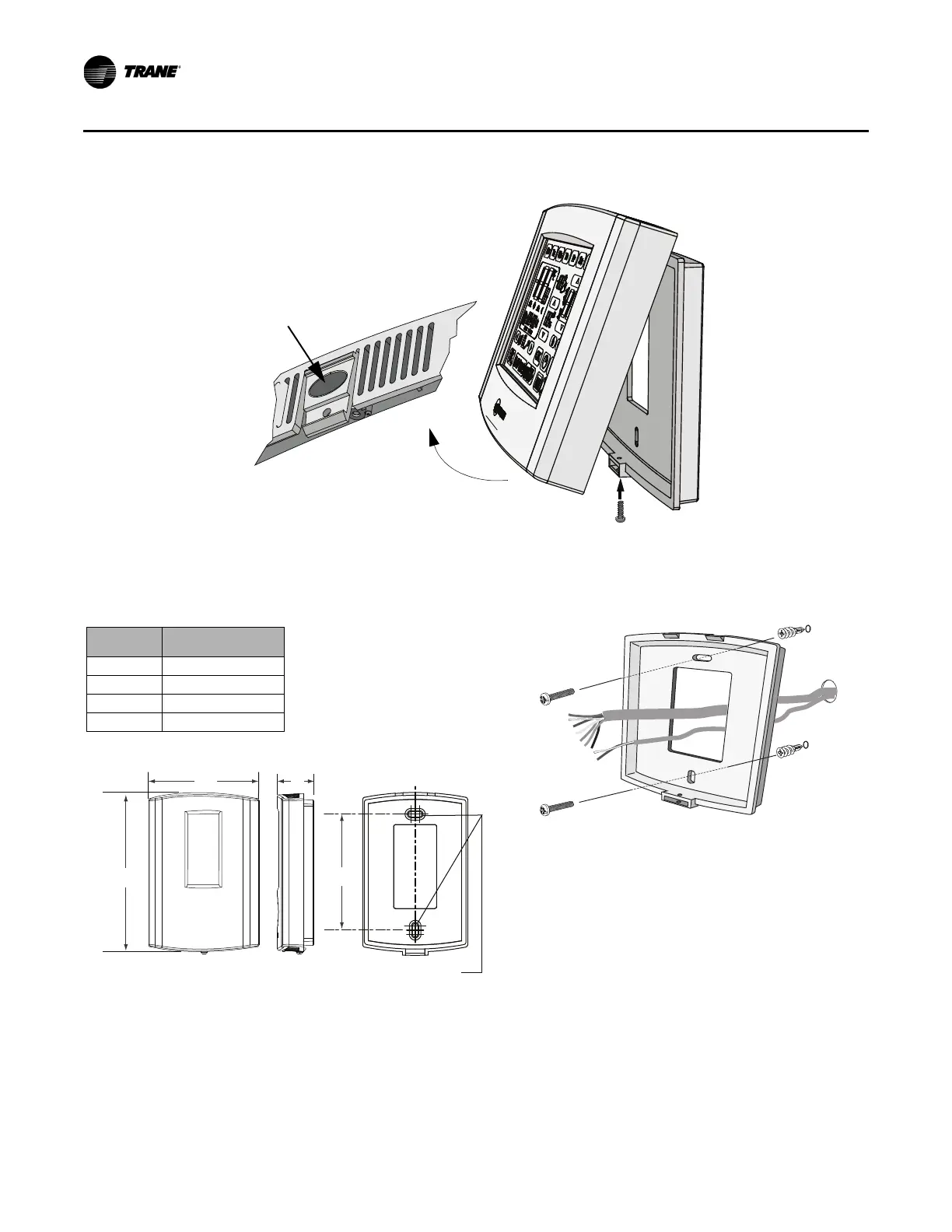

Figure 1. Security screw removal and cover release
2. Push the cover thumb tab to release the cover from the backplate as shown above.
3. Route the wires through the opening in the backplate as shown below. Wires should be marked to
ensure proper connection to terminals.
Figure 2. Wire routing, mounting, and mounting dimensions
4. If mounting the backplate directly to a wall surface, hold the backplate against the surface and then
level and mark the fastener locations.
5. Secure the backplate using appropriate fasteners (refer to the section, “Mounting Surfaces,” p. 9.) The
thermostat must be level and plumb to ensure proper air movement through the thermostat enclosure.
NOTE: If the
security screw is
installed, remove it
before attempting
to remove the
cover.
Cover thumb tab
Dimension
Programmable Touch-
screen
H 3.3 in. (85 mm)
W 5.9 in. (150 mm)
D 1.3 in. (33 mm)
M 3.3 in. (85 mm)
W
H
D
M
Two (2) slots for standard #8-32 (M4),
2”x4” junction box mounting screws.
