BAS-SVX44C-EN 19
Installation and Wiring
9. Hook the cover over the top of the backplate. Apply light pressure to the bottom of the cover until it
snaps into place.
10. To help deter tampering, install the security screw into the bottom of the cover as shown below.

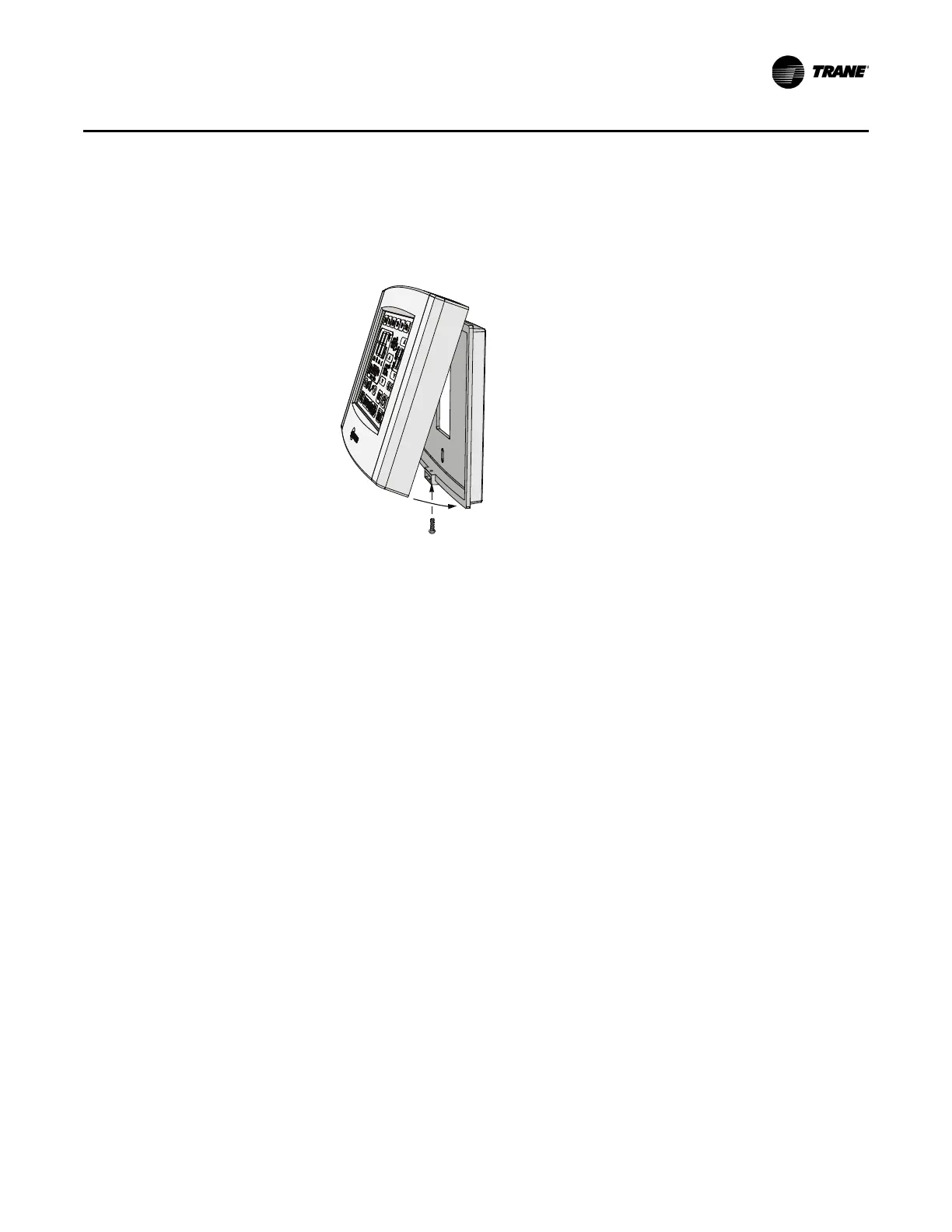

Figure 15. Close cover and replace security screw
Install security screw to
deter tampering.
