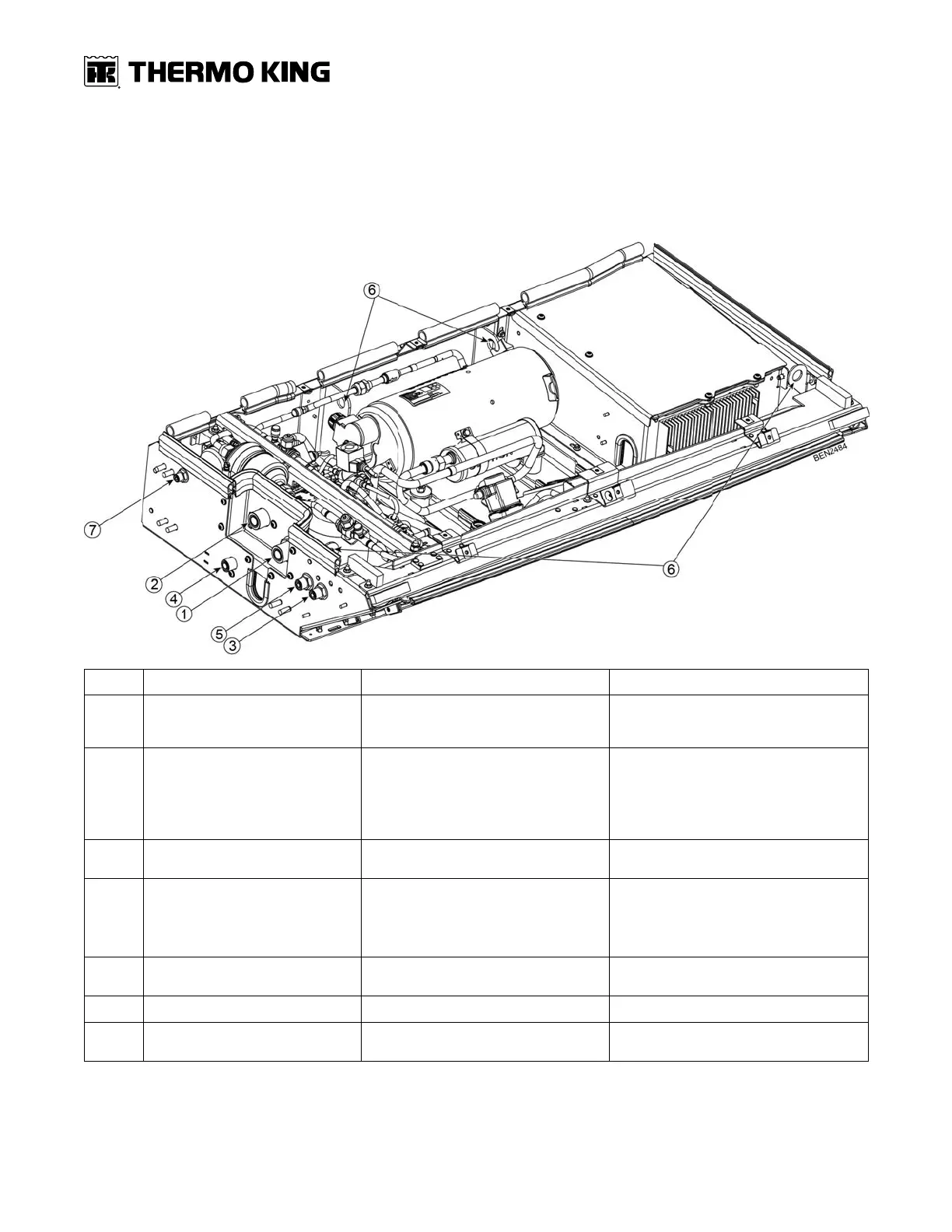

Connecting the Hoses to the Condenser Unit
NNoottee:: Remove plugs from all tubing. Lubricate all refrigeration intakes with Thermo King refrigerant oil. Fit an O-ring to
the seating in all refrigeration intakes. Check that the O-ring is properly fitted and connect each hose, using two
fixed wrenches. The loose end of the hoses should remain sealed.
Sr. No.
V–400X / V–500X
V–600X
V400X / V600X Spectrum
1 Suction line connection
Host Evaporator - Condenser - Fitting
thread 1-3/16-12, #12
Suction line connection
Host Evaporator - Condenser
- Fitting thread 1-3/16-12, #12
Suction line connection
Host Evaporator - Condenser
- Fitting thread 1-3/16-12, #10
2 Suction line connection
Condenser - Road compressor
- Fitting thread 1-3/16-12, #12
Suction line connection
Condenser - Road compressor
- Fitting thread 1-3/16-12, #16
Suction line connection
Condenser - Road compressor
- Fitting thread 1-3/16-12 , #12 -> V400X
spectrum
- Fitting thread 1-3/16-12, #16 -> V600X
spectrum
3
Liquid line connection
- Fitting thread 11/16-16, #6
Liquid line connection
- Fitting thread 11/16-16, #6
Liquid line connection
- Fitting thread 11/16-16, #6
4
Discharge line connection
- Fitting thread 13/16-16, #8
Discharge line connection
- Fitting thread 13/16-16, #10
Discharge line connection
- Fitting thread 13/16-16, #8 -> V400X
spectrum
- Fitting thread 13/16-16, #10 -> V600X
spectrum
5 Hot gas line connection
- Fitting thread 11/16-16, #6
Hot gas line connection
- Fitting thread 11/16-16, #6
Hot gas line connection
- Fitting thread 11/16-16, #6
6 Lifting eyes Lifting eyes Lifting eyes
7 — Injection line 2 connection (optional)
- Fitting thread 9/16-18, #4
Injection line 2 connection (optional)
- Fitting thread 9/16-18, #4
