TK 62061-18-IM-EN

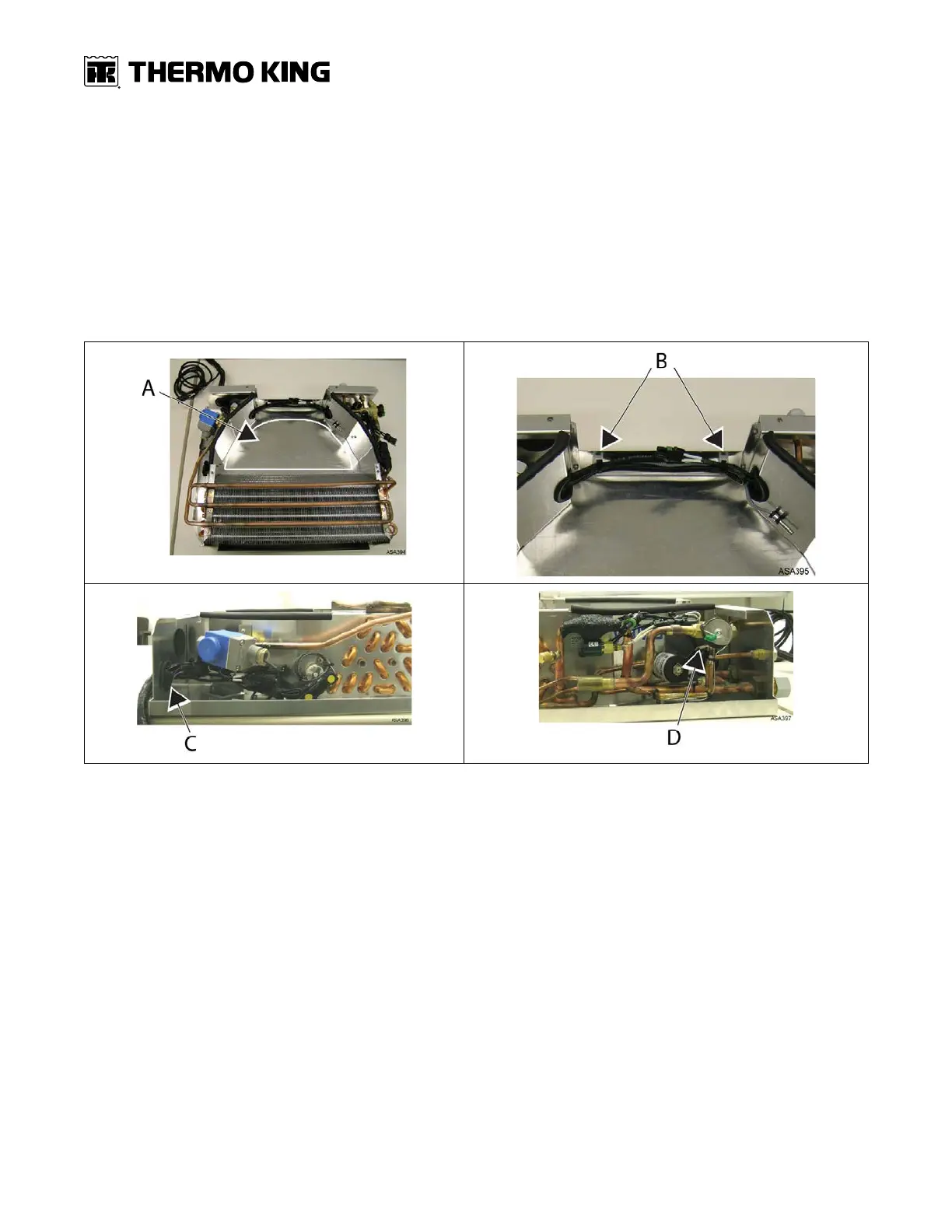

Installing the Wiring Sleeve in the Evaporators
1. Ensure area A is completely free to guarantee maximum air flow.
2. 1100//3300 MMooddeellss:: Use plastic flanges to secure the wiring sleeve to thesupports, BB fitted to the evaporator.
2200//5500 MMooddeellss:: Insert the plastic clips mounted on the electrical hoseinto holes CC to fasten it to the evaporator.
3. Enter the wiring sleeve into the evaporator through CC.
4. Pass the wiring sleeve through DD.
NNoottee:: The images show an ES100 but the same principle applies to all ES Evaporators.
