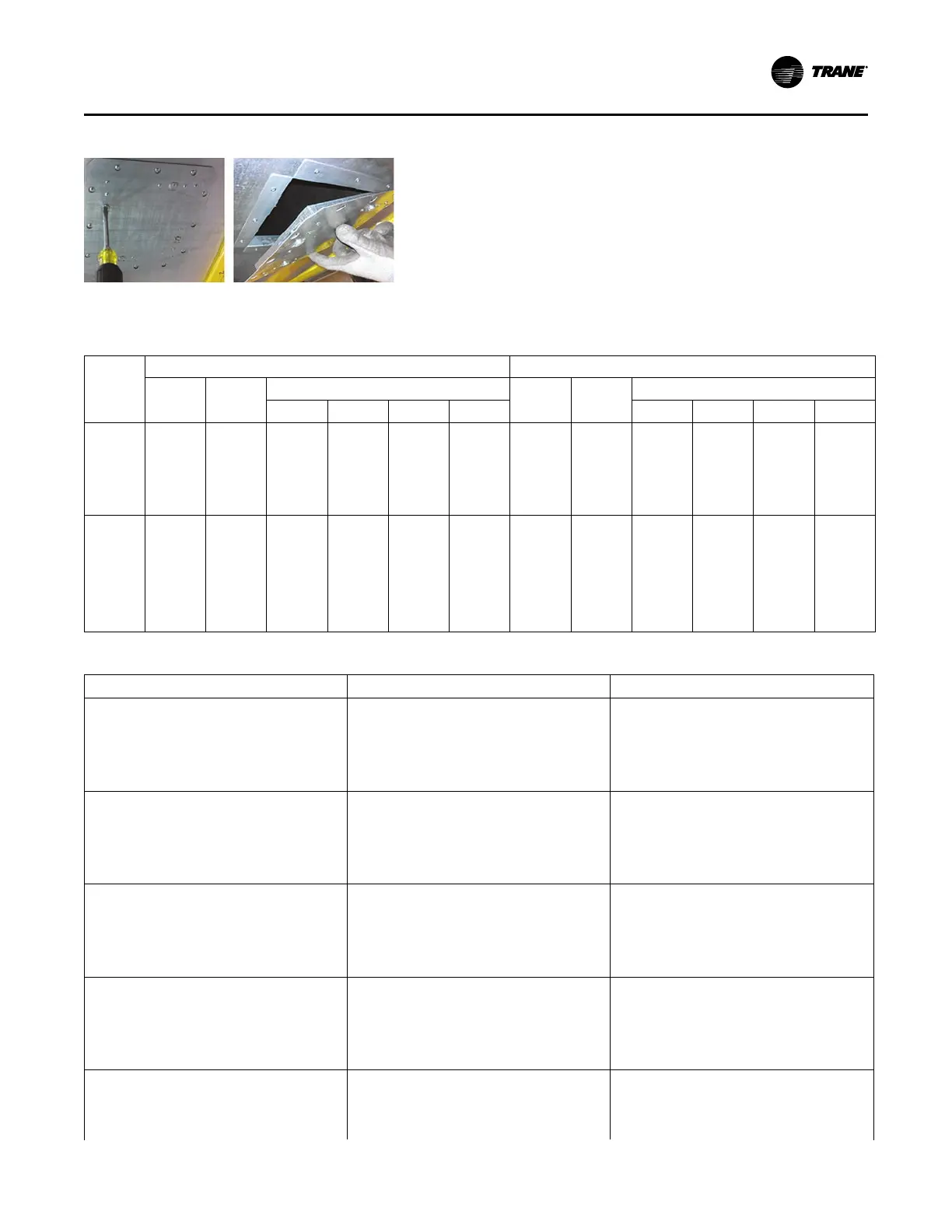

Figure 20. Bottom access
Weights
Table 5. Single-duct units— lb/kg
Unit Size
Single Wall
Dual Wall
VCCF VCEF
VCWF
VCCF VCEF
VCWF
1–Row 2–Row 3–Row 4–Row 1–Row 2–Row 3–Row 4–Row
4
16/7 38/17 21/10 22/10 23/11 24/11 19/9 48/22 24/11 25/11 26/12 27/12
5
16/7 38/17 21/10 22/10 23/11 24/11 19/9 48/22 24/11 25/11 26/12 27/12
6
16/7 38/17 21/10 22/10 22/10 24/11 19/9 48/22 24/11 25/11 25/11 27/12
8
16/7 38/17 21/10 24/11 24/11 26/12 20/9 49/22 25/11 28/13 28/13 30/14
10
22/10 46/21 29/13 32/15 32/15 36/16 27/12 60/27 34/15 37/17 37/17 41/19
12
27/12 52/24 37/17 40/18 41/19 45/20 34/15 68/31 43/20 47/21 48/22 52/24
14
32/15 60/27 44/20 48/22 51/23 55/25 41/19 80/36 53/24 57/26 60/27 64/29
16
35/16 69/31 49/22 54/24 56/25 61/28 46/21 91/41 60/27 65/29 67/30 72/33
24
52/24 84/38 70/32 77/35 76/35 82/37 63/29 106/48 81/37 88/40 87/40 93/42
Table 6. Dual-duct units — lb/kg
Unit Size VDDF
VDDF w/Dual Wall
505
54/24 68/31
506
54/24 68/31
606
54/24 68/31
508
55/25 68/31
608
55/25 69/31
510
56/25 69/31
808
56/25 70/32
610
56/25 70/32
810
57/26 70/32
1010
61/28 74/34
612
57/26 70/32
812
58/26 71/32
1012
59/27 72/33
1212
60/27 84/38
814
78/35 102/46
1014
79/36 103/47
1214
80/36 104/47
1414
81/37 105/48
816
79/36 103/47
