22 MS-SVN056C-EN

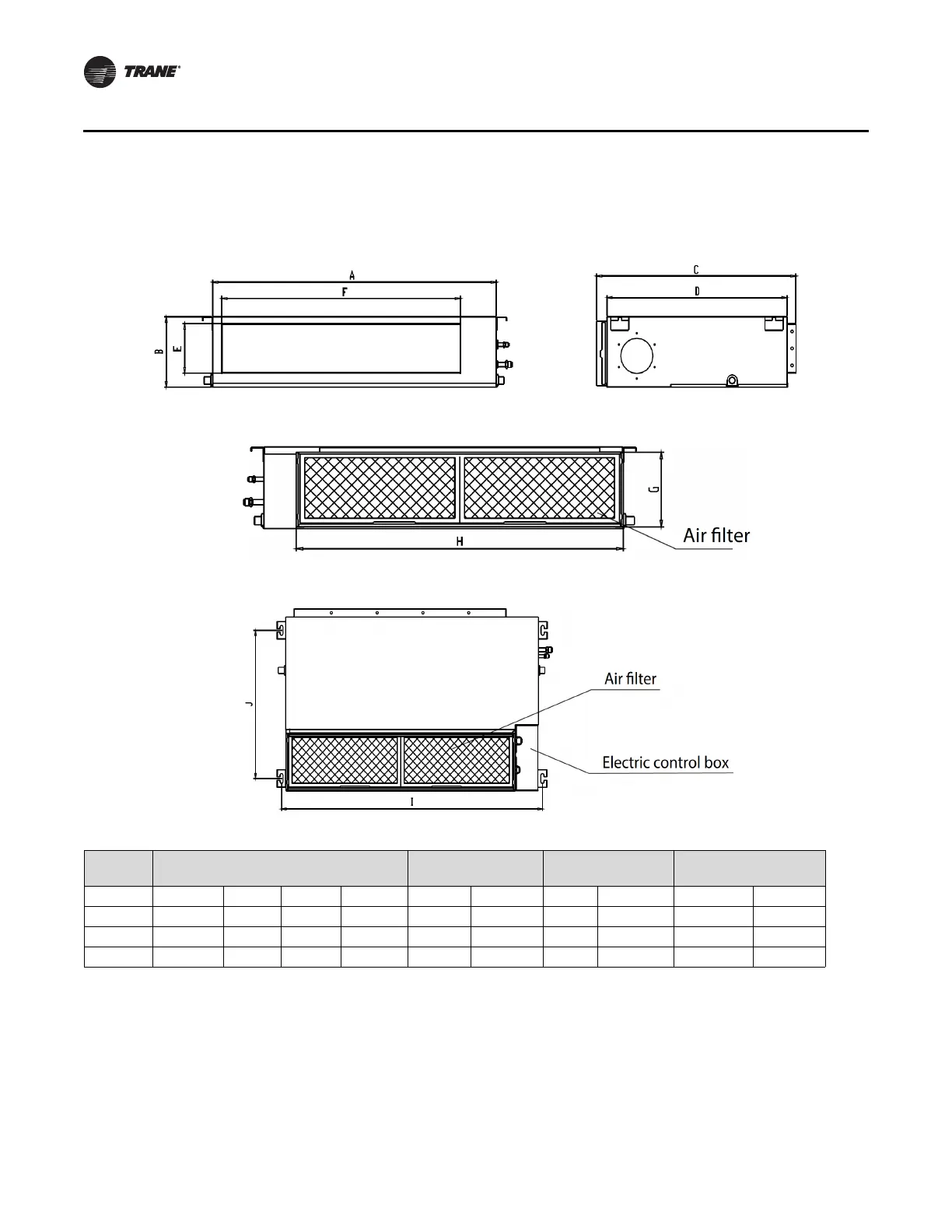

Concealed Unit Installation
Unit placement
Dimensions and size of outgoing air outlet
Size of incoming air inlet
Size for vertical discharge
Unit size Profile dimension (in/mm)
Opening size for
outgoing air
Opening size for air
return
Size of mounting tab
ABCDE FGH I J
18 880/34.6 210/8.3 674/26.5 600/23.6 136/5.4 706/27.8 190/7.5 782/30.8 920/36.2 508/20
24-36 1100/43.3 249/9.8 774/30.5 700/27.6 175/6.9 926/36.5 228/8.9 1001/39.4 1140/44.9 598/23.5
48-60 1200/47.2 300/11.8 874/34.4 800/31.5 227/8.9 1044/41.1 280/11 1001/43.3 1240/48.8 697/27.4
