Trane 2TWB0012-036AA User Manual

6 18-BC52D5-5
Installer’s Guide

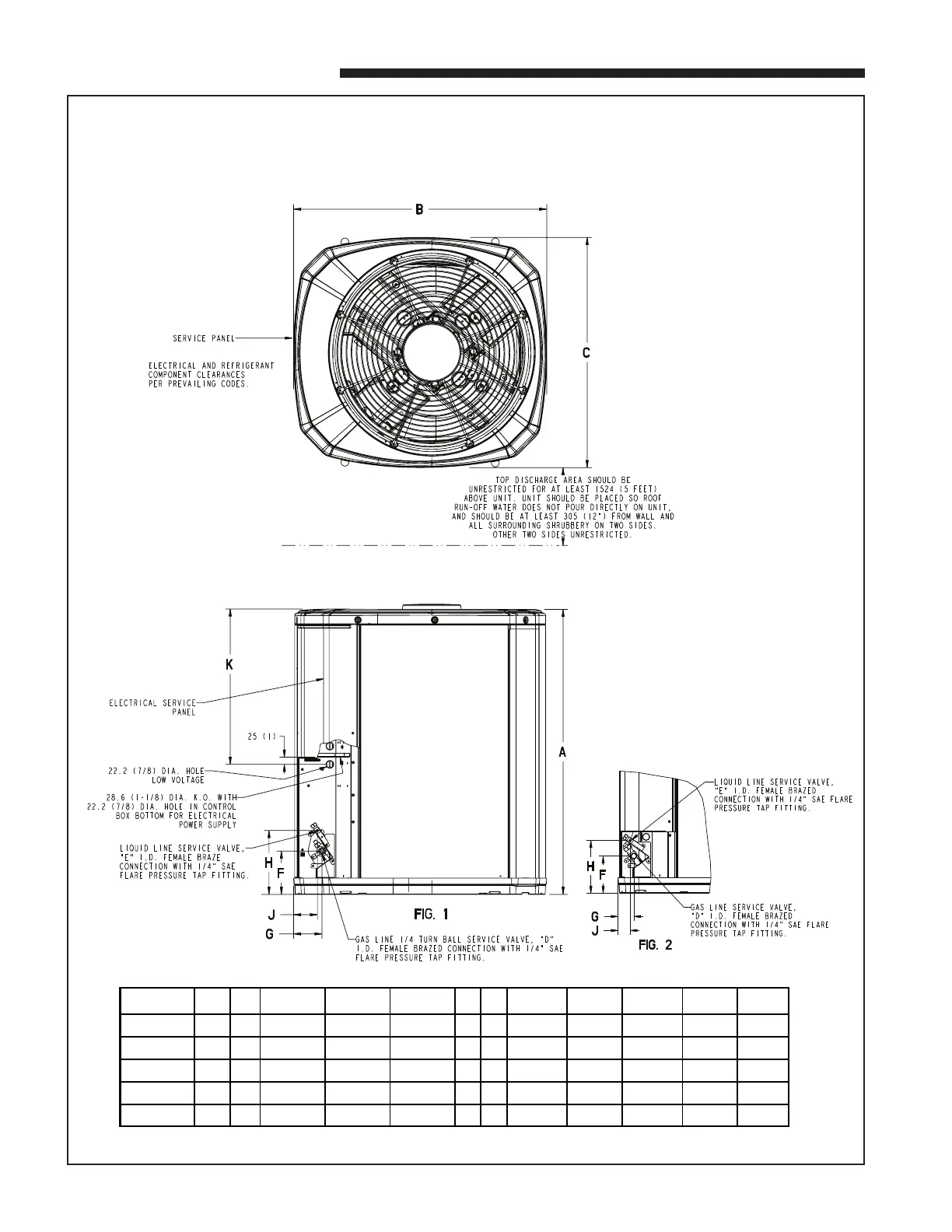

2TWB0012-036AA OUTLINE DRAWING
Note: All dimensions are in MM (Inches).
From Dwg. D153074 Rev. 15
MODELS BASE FIG. A B C D E F G H J K
2TWB0012AA 2 2 651 (25-5/8) 724 (28-1/2) 651 (25-5/8) 5/8 1/4 127 (5) 57 (2-1/4) 181 (7-1/8) 44 (1-3/4) 457 (18)
2TWB0018AA 2 2 651 (25-5/8) 724 (28-1/2) 651 (25-5/8) 3/4 5/16 127 (5) 57 (2-1/4) 181 (7-1/8) 44 (1-3/4) 457 (18)
2TWB0024AA 2 2 730 (28-3/4) 724 (28-1/2) 651 (25-5/8) 3/4 5/16 137 (5-3/4) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TWB0030AA 2 2 730 (28-3/4) 724 (28-1/2) 651 (25-5/8) 7/8 3/8 137 (5-3/4) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2TWB0036AA 3 2 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 7/8 3/8 137 (5-3/4) 86 (3-3/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
